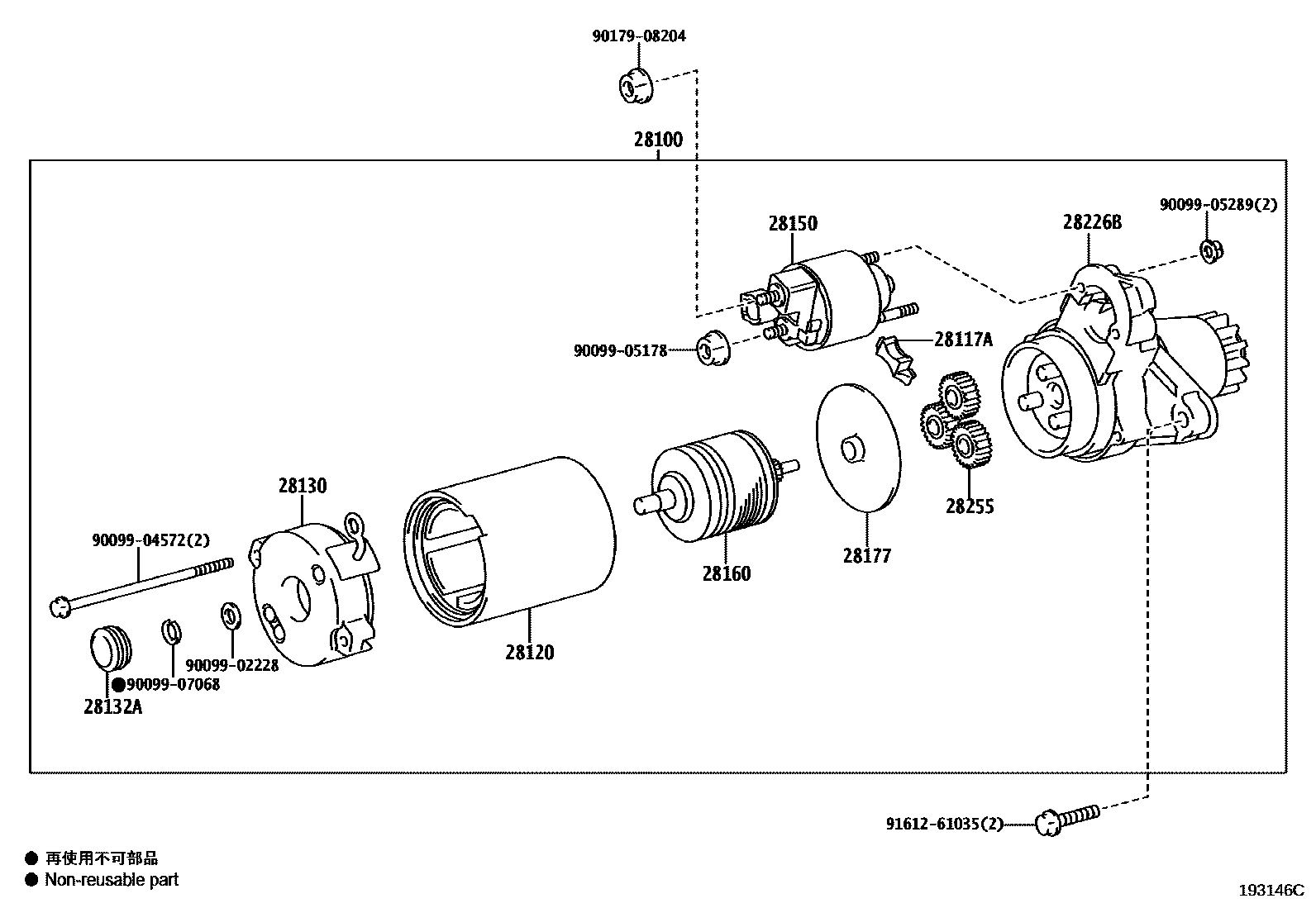

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-31100i2GRFE..GGL1#..JPP200812-200909

12V 1.7KW

sub28100-31101

main28100-31101i2GRFE..GGL1#..JPP200910-200911

12V 1.7KW

sub28100-31102

main28100-31102i2GRFE..GGL1#..JPP200911-201208

12V 1.7KW

sub28100-36120

main28100-31170i2GRFE..GGL1#..JPP201209-201407

12V 1.7KW

sub28100-31171

main28100-31171i2GRFE..GGL1#..JPP201408

12V 1.7KW

28117ASEAL, RUBBER

main28117-28060i2GRFE..GGL1#..JPP200812-201209

28120YOKE ASSY, STARTER

main28120-28060i2GRFE..GGL1#..JPP200812-201203

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-20020i2GRFE..GGL1#..JPP200812-201203

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFE..GGL1#..JPP200812-201203

28150SWITCH ASSY, MAGNET STARTER

main28150-31090i2GRFE..GGL1#..JPP200812-201209

main28150-31100i2GRFE..GGL1#..JPP200910-201112

sub28150-31090

main28226-31170i2GRFE..GGL1#..JPP201209

28160ARMATURE ASSY, STARTER

main28160-28040i2GRFE..GGL1#..JPP200812-201203

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFE..GGL1#..JPP200812-201203

28226BSTARTER KIT, REPAIR SERVICE

main28226-28041i2GRFE..GGL1#..JPP201209

main28226-28060i2GRFE..GGL1#..JPP200812-201209

28255GEAR, PLANET

main28255-20020i2GRFE..GGL1#..JPP200812-201203

9009902228

main90099-02228

9009904572

main90099-04572

9009905178

main90099-05178

9009905289

main90099-05289

9009907068

main90099-07068

9017908204

main90179-08204

9161261035

main91612-61035

17 parts on this diagram · 2 diagrams in section
