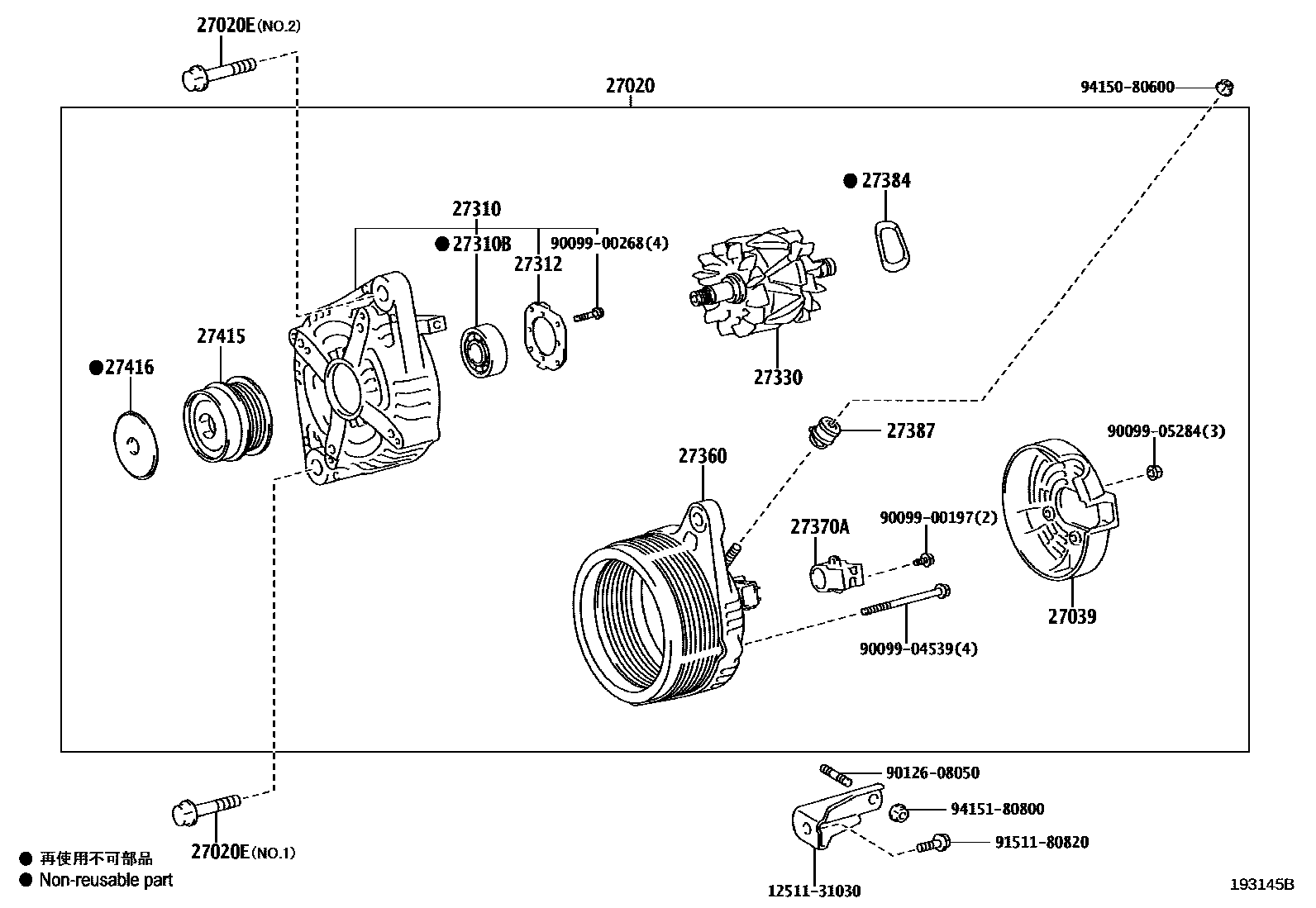

ALTERNATOR
27020ALTERNATOR ASSY
12V 150A
12V 150A
27020EBOLT(FOR ALTERNATOR)
NO.1
NO.2
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27370AHOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27416CAP, ALTERNATOR PULLEY
1251131030BRACKET, ALTERNATOR, NO.1
main12511-31030
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905284
main90099-05284
9012608050
main90126-08050
9151180820
main91511-80820
9415080600
main94150-80600
9415180800
main94151-80800
22 parts on this diagram · 1 diagram in section
