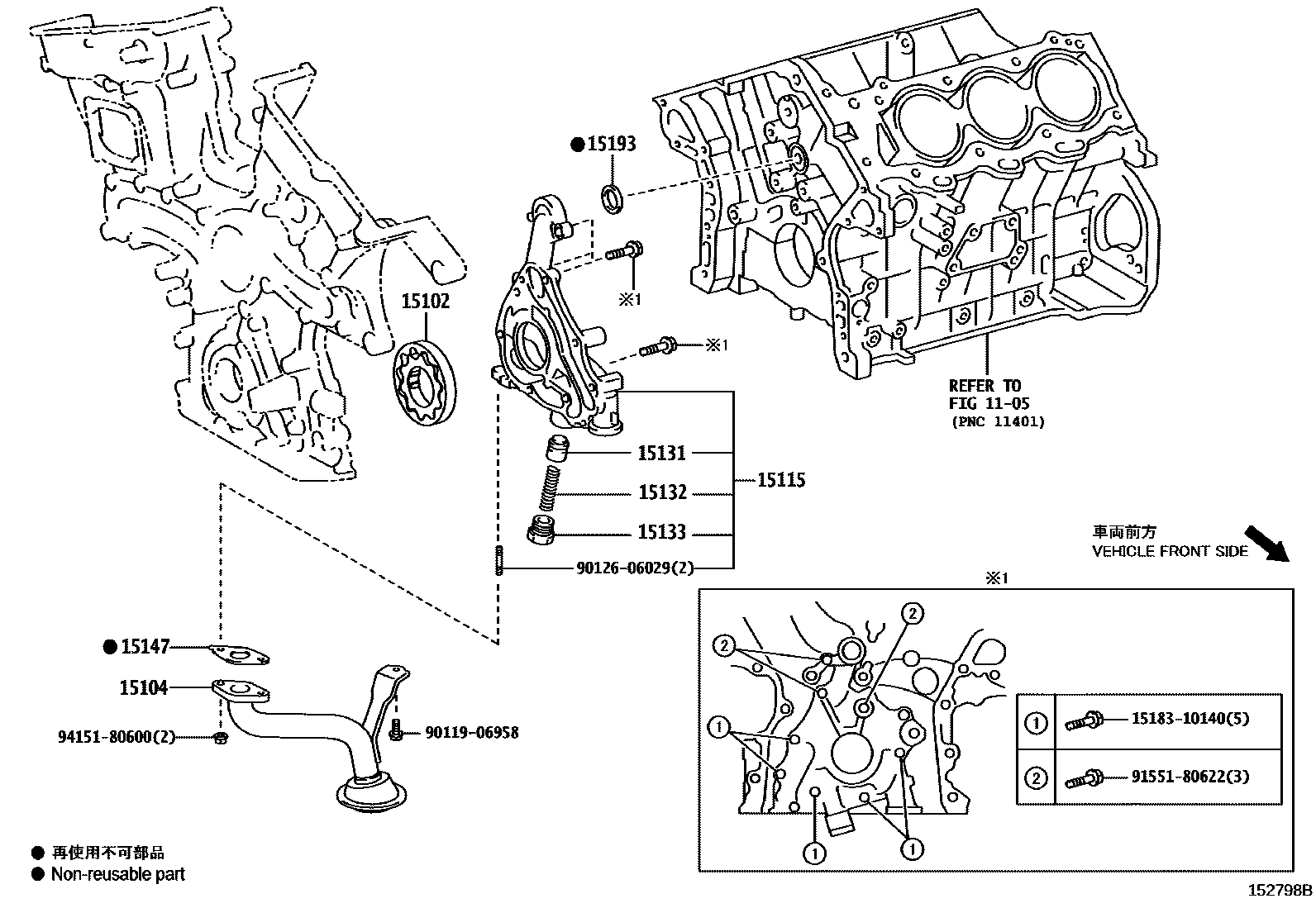

ENGINE OIL PUMP

0001 1 0002 1

1105

15102ROTOR SET, OIL PUMP

main15103-31050i2GR#..GGL1#,GYL1#..JPP200812-201203

15104STRAINER SUB-ASSY, OIL

main15104-31120i2GR#..GGL1#,GYL1#..JPP200812-201504

main15104-31190i2GR#..GGL1#,GYL1#..JPP201504

15115COVER, OIL PUMP

main15115-31040i2GR#..GGL1#,GYL1#..JPP200812-201203

15131VALVE, OIL PUMP RELIEF

main15131-17010i2GR#..GGL1#,GYL1#..JPP200812-201203

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i2GR#..GGL1#,GYL1#..JPP200812-201203

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i2GR#..GGL1#,GYL1#..JPP200812-201203

15147GASKET, OIL STRAINER

main15147-31060i2GR#..GGL1#,GYL1#..JPP200812-201203

15193GASKET, OIL PUMP

main15193-31020i2GR#..GGL1#,GYL1#..JPP200812-201203

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9011906958

main90119-06958

9012606029

main90126-06029

9155180622

main91551-80622

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
