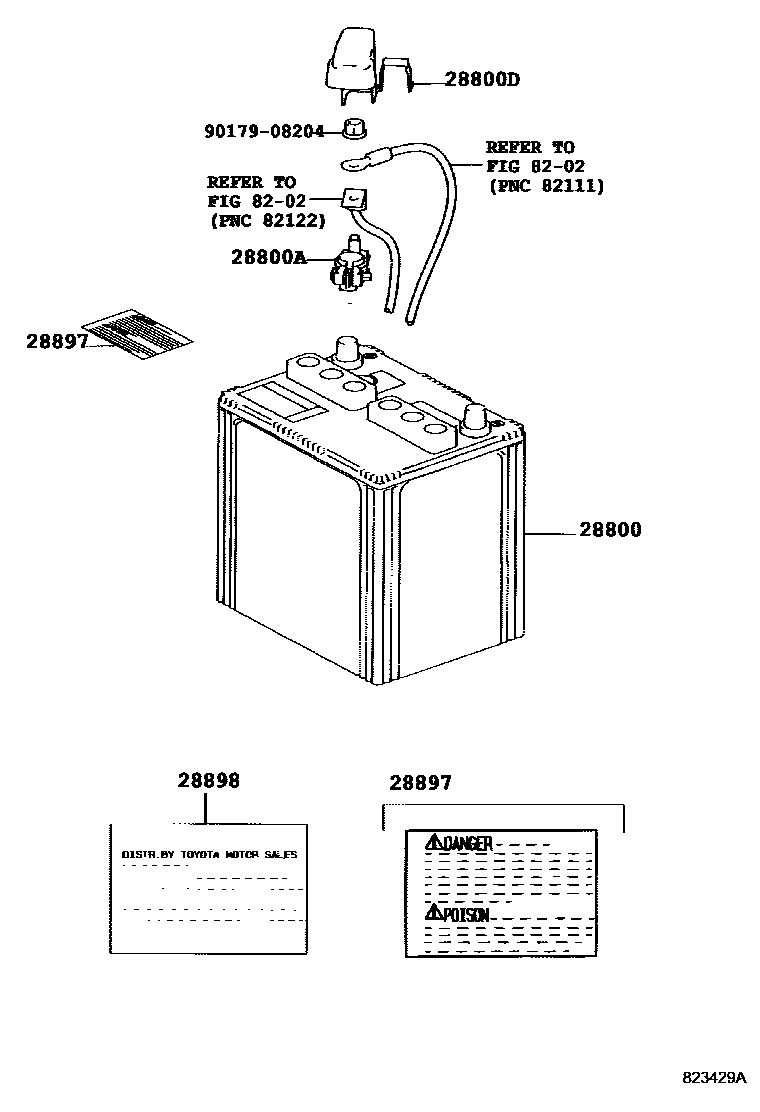

BATTERY & BATTERY CABLE

28800BATTERY

main28800-54020i2GRFE..GSU3#..JPP200601-200812

80D26L,YUASA

sub28800-67102

main28800-64132i3MZFE..MCU3#..JPP200302-200601

80D26L

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i3MZFE..MCU3#..JPP200302-200812

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48020i3MZFE..MCU3#..JPP200302-200812

28897PLATE, BATTERY CAUTION

main28897-46020

28898PLATE, BATTERY

main28898-20010i3MZFE..MCU3#..JPP200302-200812

8202

9017908204

main90179-08204

7 parts on this diagram · 1 diagram in section
