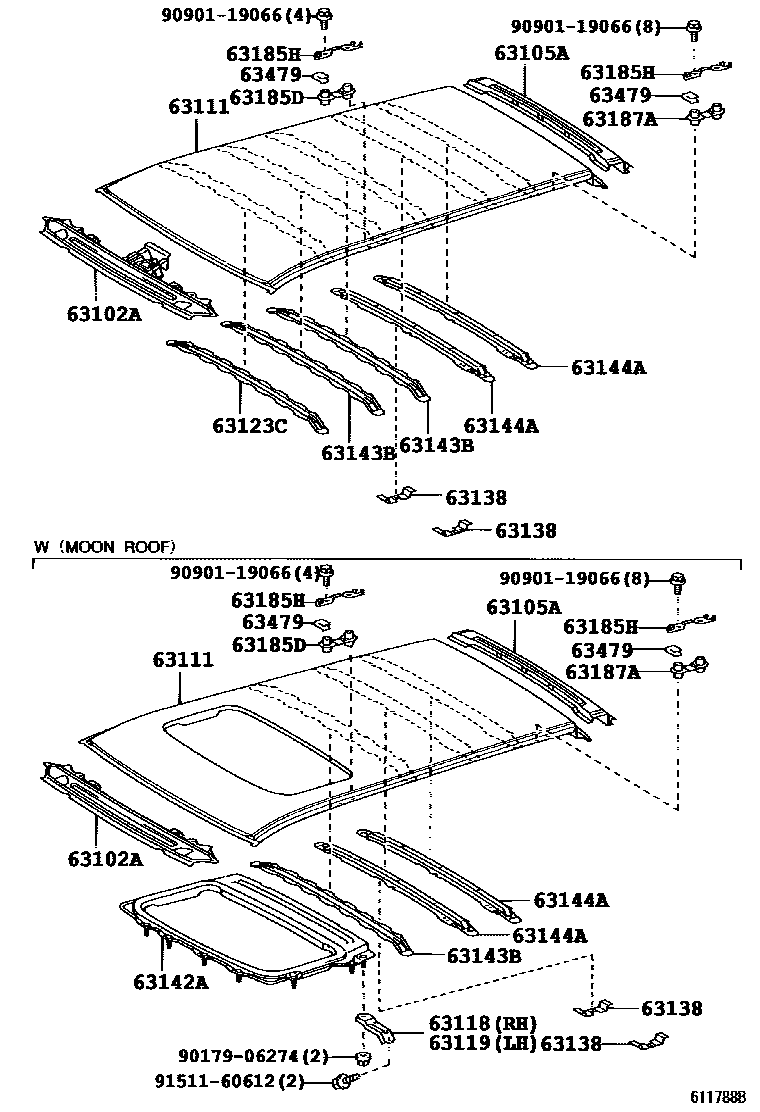

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W/MULTI PANEL GLASS MOON ROOF
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
W/MOON ROOF
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
W/MOON ROOF
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
W/MOON ROOF
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
63119SUPPORT, ROOF PANEL, LH
W/MOON ROOF
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
63123CREINFORCEMENT, ROOF PANEL
63138BRACKET, DOME LAMP, NO.2
63142AREINFORCEMENT, ROOF PANEL, NO.2
W/MOON ROOF
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
63143BREINFORCEMENT, ROOF PANEL, NO.3
W/MOON ROOF
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
63144AREINFORCEMENT, ROOF PANEL, NO.4
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
sub63144-48041
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
63185DBRACKET, ROOF RACK, FRONT
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
63185HBRACKET, ROOF RACK
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
63187ABRACKET, ROOF RACK, REAR
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
63479RETAINER, ROOF INNER RACK
SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)
9017906274
main90179-06274
9090119066
main90901-19066
9151160612
main91511-60612
17 parts on this diagram · 5 diagrams in section
