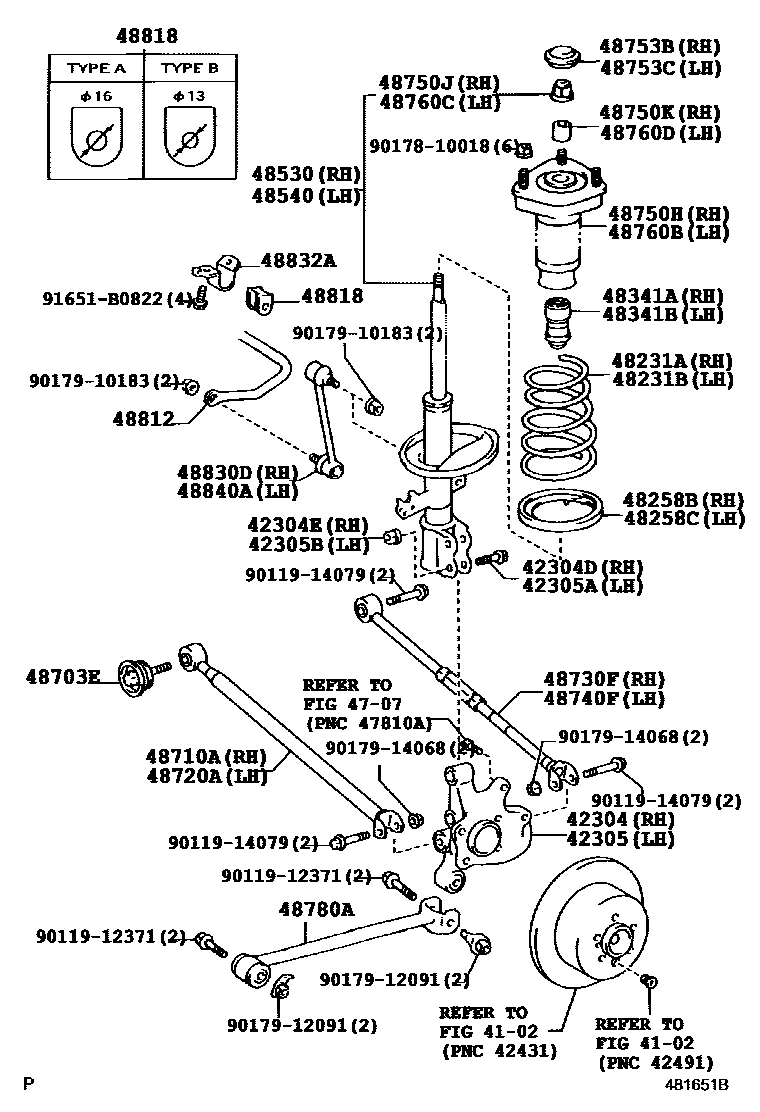

REAR SPRING & SHOCK ABSORBER
4102
42304CARRIER SUB-ASSY, REAR AXLE, RH
sub42304-48021
PNC 42304D=M15X1.5
sub42304-48031
PNC 42304D=M15X1.5
PNC 42304D=M17X1.5
42304DBOLT (FOR REAR AXLE CARRIER RH)
M17X1.5
M15X1.5
42304ENUT (FOR REAR AXLE CARRIER RH)
M15X1.5
M17X1.5
42305CARRIER SUB-ASSY, REAR AXLE, LH
PNC 42305A=M15X1.5
sub42305-48031
PNC 42305A=M15X1.5
PNC 42305A=M17X1.5
42305ABOLT (FOR REAR AXLE CARRIER LH)
M17X1.5
M15X1.5
42305BNUT (FOR REAR AXLE CARRIER LH)
M15X1.5
M17X1.5
4707
48231ASPRING, COIL, REAR RH
L=256.5
48231BSPRING, COIL, REAR LH
L=256.5
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-48140
MARK 48530-48170
MARK 48530-48171
MARK 48530-48142
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-48140
MARK 48540-48170
MARK 48540-48171
MARK 48540-48142
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
LIGHT GREEN
48818BUSH, STABILIZER, REAR
TYPE B
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9011912371
main90119-12371
9011914079
main90119-14079
9017810018
main90178-10018
9017910183
main90179-10183
9017912091
main90179-12091
9017914068
main90179-14068
91651B0822
main91651-B0822
42 parts on this diagram · 4 diagrams in section
