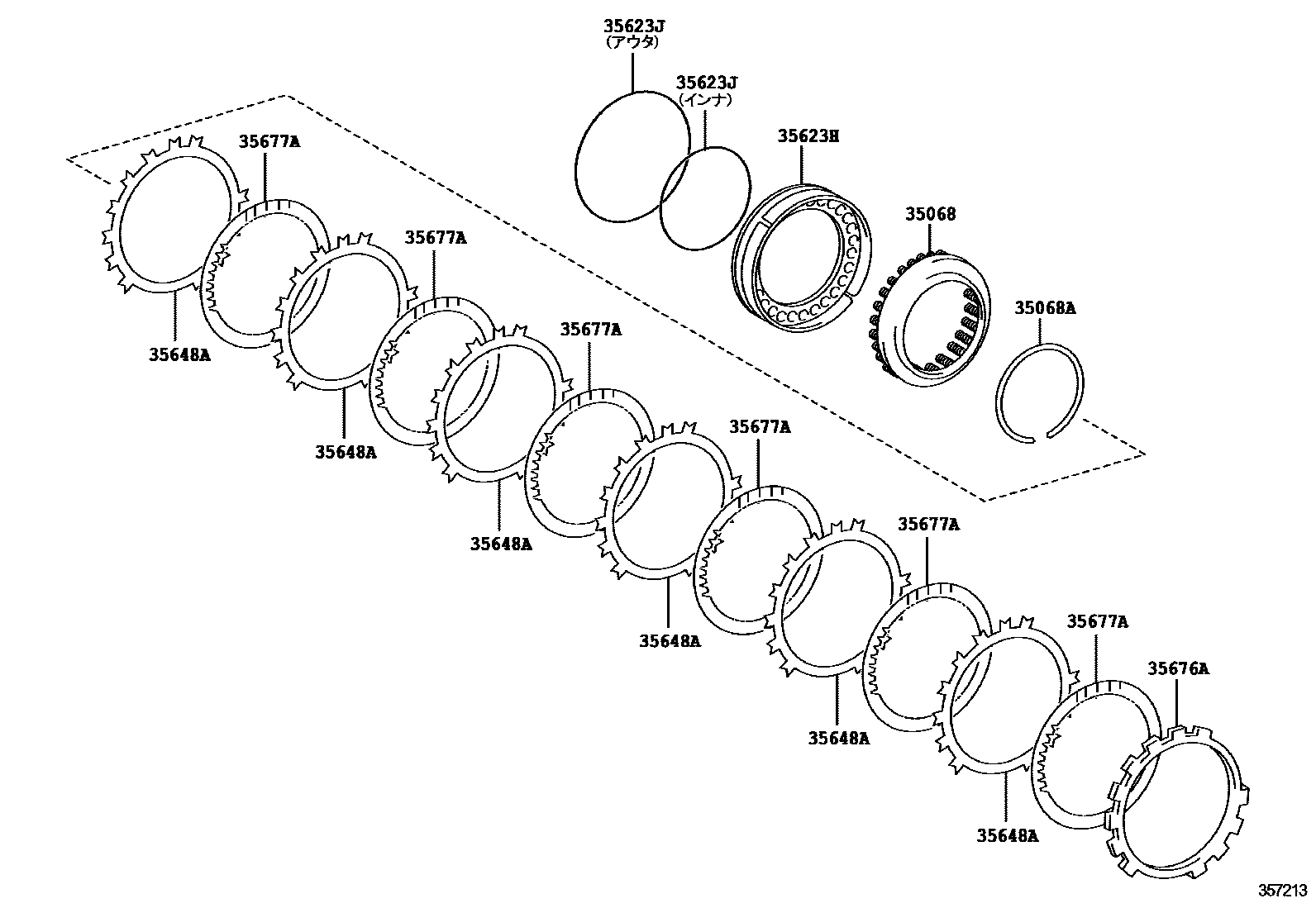

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-33020iMCU3#..JPP200302-200404

sub35068-33021

main35068-33021iMCU3#..JPP200404-200812

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iMCU3#..JPP200302-200812

35623HPISTON, 1ST & REVERSE BRAKE

main35623-33030iMCU3#..JPP200302-200812

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-99096iMCU3#..JPP200302-200812

INNER

main90301-99098iGSU3#..JPP200302-200812

OUTER

sub90301-99134

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-21011iGSU3#..JPP200509-200812

main35692-28010iMCU3#..JPP200302-200509

sub35692-21011

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-21010iGSU3#..JPP200302-200812

T=1.8,MARK 1

main35678-21020iMCU3#..JPP200302-200812

T=1.9,MARK 2

main35678-21030iMCU3#..JPP200302-200812

T=2.0,MARK 3

main35678-21040iGSU3#..JPP200302-200812

T=2.1,MARK 4

main35678-21050iGSU3#..JPP200302-200812

T=2.2,MARK 5

main35678-21060iMCU3#..JPP200302-200812

T=2.3,MARK 6

main35678-21070iMCU3#..JPP200302-200812

T=2.4,MARK 7

main35678-21080iMCU3#..JPP200302-200812

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-28010iMCU3#..JPP200302-200812

7 parts on this diagram · 1 diagram in section
