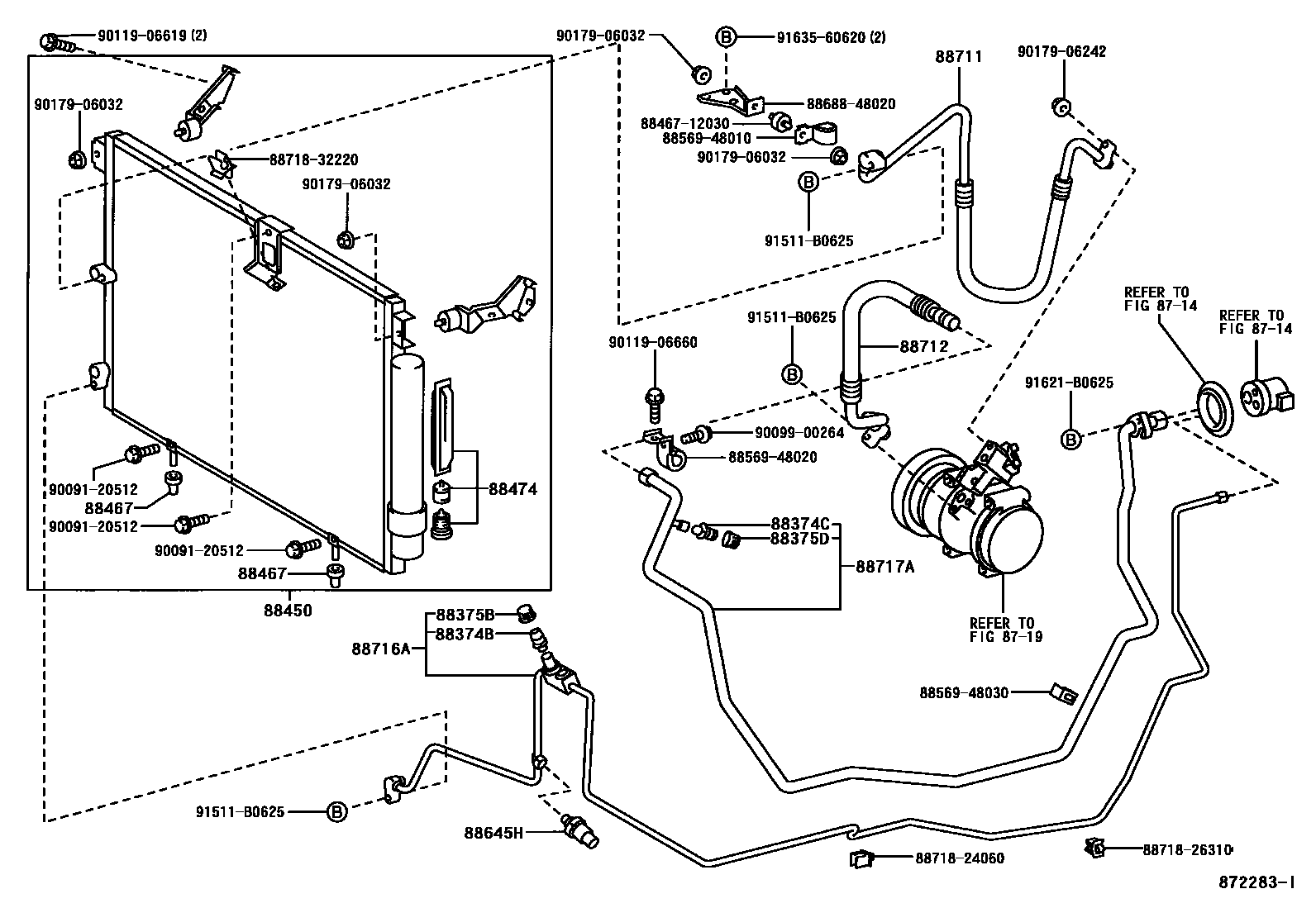

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & PIPING 0002 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMCU1#199801-200007

88374CVALVE, SERVICE, NO.2

main88374-30010iMCU1#199801-200007

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iMCU1#199801

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iMCU1#199801

88450CONDENSER ASSY, W/RECEIVER

main88450-48010iMCU1#199801

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32020iMCU1#199801

88474DRYER, COOLER

main88474-22010iMCU1#199801-199909

sub88474-47010

main88474-47010iMCU1#199909

88645HSWITCH, PRESSURE NO.1

main88645-48020iMCU1#199801

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-48010iMCU1#199801-200007

main88711-48030iMCU1#200007

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-48010iMCU1#199801

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-48010iMCU1#199801-200007

main88716-48020iMCU1#200007

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-48010iMCU1#199801-200007

main88717-48020iMCU1#200007

8846712030CUSHION, COOLER CONDENSER, NO.1

main88467-12030

8856948010CLAMP (FOR COOLER RELAY)

main88569-48010

8856948020CLAMP (FOR COOLER RELAY)

main88569-48020

8856948030CLAMP (FOR COOLER RELAY)

main88569-48030

8868848020BRACKET, COOLER DIAPHRAGM

main88688-48020

8871824060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24060

8871826310PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-26310

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009120512

main90091-20512

9009900264

main90099-00264

9011906619

main90119-06619

9011906660

main90119-06660

9017906032

main90179-06032

9017906242

main90179-06242

91511B0625

main91511-B0625

91621B0625

main91621-B0625

9163560620

main91635-60620
