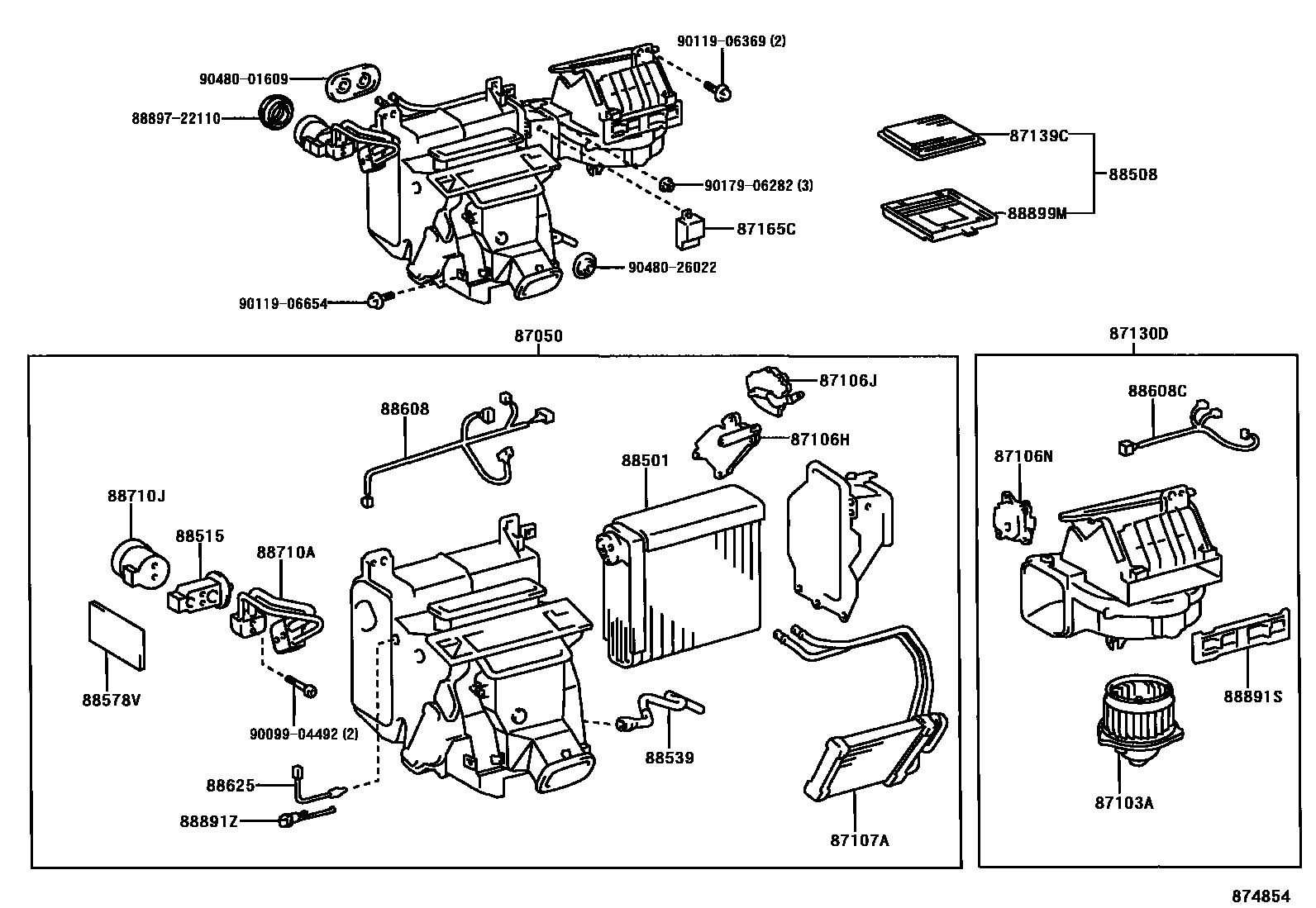

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1UNIT 0002 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48020iMCU1#199801

sub87050-48021

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30370iMCU1#199801-199808

sub87103-30390

main87103-30390iMCU1#199808

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-48020iMCU1#199801

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30371iMCU1#199801

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-30390iMCU1#199801

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48020iMCU1#199801

87130DBLOWER ASSY

main87130-48020iMCU1#199801

87139CFILTER, CLEAN AIR

main87139-48020iMCU1#199801

87165CCONTROL, BLOWER MOTOR

main87165-22040iMCU1#199801-200103

sub87165-22050

main87165-22050iMCU1#200103

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48010iMCU1#199801

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iMCU1#199801

88515VALVE, COOLER EXPANSION

main88515-48010iMCU1#199801-199808

sub88515-48040

sub88515-60110

main88515-48040iMCU1#199808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-48020iMCU1#199801

88578VPACKING, COOLING UNIT, NO.3

main88578-48080iMCU1#199801

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-48011iMCU1#199801

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-48020iMCU1#199801

88625THERMISTOR, COOLER, NO.1

main88625-48010iMCU1#199801

88710ATUBE ASSY, AIR CONDITIONER

main88710-48030iMCU1#199801

88710JTUBE, AIR CONDITIONER CONNECTOR

main88899-48020iMCU1#200002-200007

88891SCOVER, COOLER, NO.1

main88891-30680iMCU1#199801

88891ZBRACKET, COOLER THERMISTOR

main88891-20240iMCU1#199801-200007

main88891-44050iMCU1#200007

88899MPLATE, COVER(FOR AIR FILTER)

main88899-30870iMCU1#199801

8889722110VALVE, COOLER MAGNET

main88897-22110

9009904492

main90099-04492

9011906369

main90119-06369

9011906654

main90119-06654

9017906282

main90179-06282

9048001609

main90480-01609

9048026022

main90480-26022

29 parts on this diagram · 2 diagrams in section
