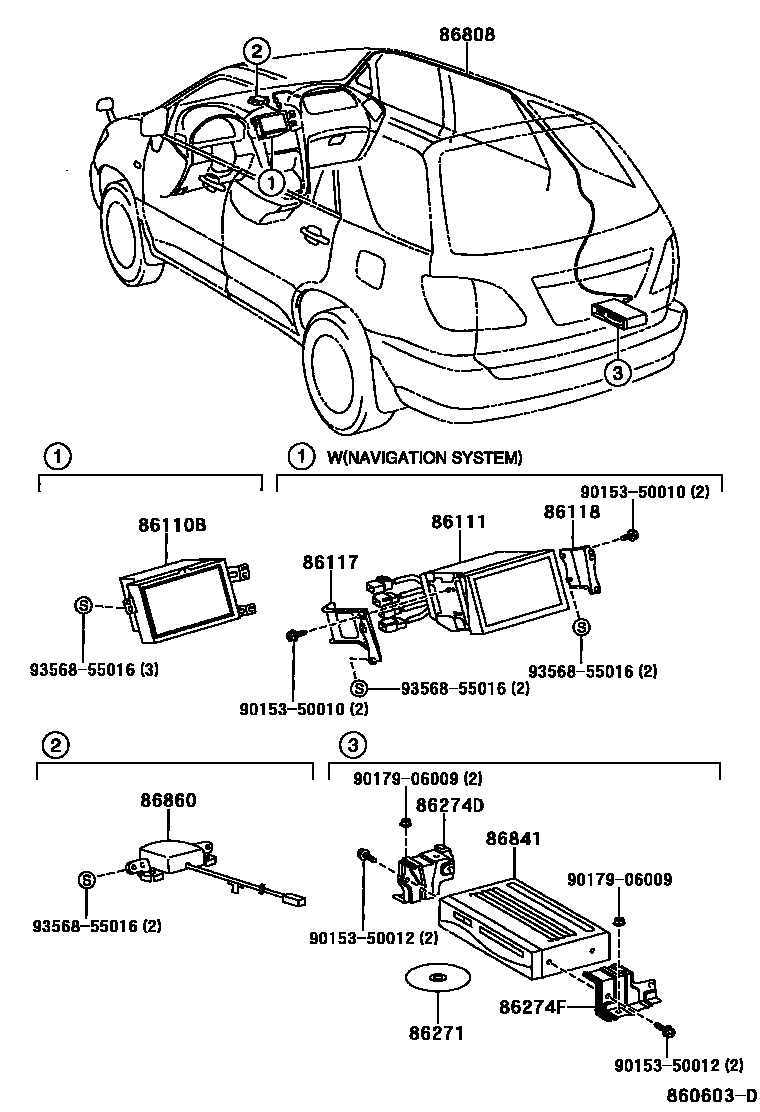

NAVIGATION & FRONT MONITOR DISPLAY

86110BMULTI-DISPLAY ASSY

main86110-48030iMCU1#199801

FUJITSU TEN

main86110-48040iMCU15199908-200007

FUJITSU TEN,TAIWAN SPEC

main86110-48041iMCU15200007

FUJITSU TEN,TAIWAN SPEC

86111MULTI-DISPLAY

main86111-48030iMCU1#200007

FUJITSU TEN,W(NAVIGATION SYSTEM)

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-48010iMCU1#200007

W(NAVIGATION SYSTEM)

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-48010iMCU1#200007

W(NAVIGATION SYSTEM)

86271DISC, DISC PLAYER

main86271-33030iMCU1#200201-200208

main86271-33031iMCU1#200208

main86271-47020iMCU1#200007-200201

sub86807-12010

86274DBRACKET, DISC PLAYER

main86274-48050iMCU1#200007

86274FBRACKET, DISC PLAYER, NO.2

main86274-48060iMCU1#200007

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-48030iMCU1#200007

main86808-48040iMCU1#200007

W(MOON ROOF)

86841COMPUTER, NAVIGATION

main86841-50010iMCU1#200007

86860ANTENNA ASSY, NAVIGATION

main86860-48020iMCU1#200007

9015350010

main90153-50010

9015350012

main90153-50012

9017906009

main90179-06009

9356855016

main93568-55016

14 parts on this diagram · 1 diagram in section
