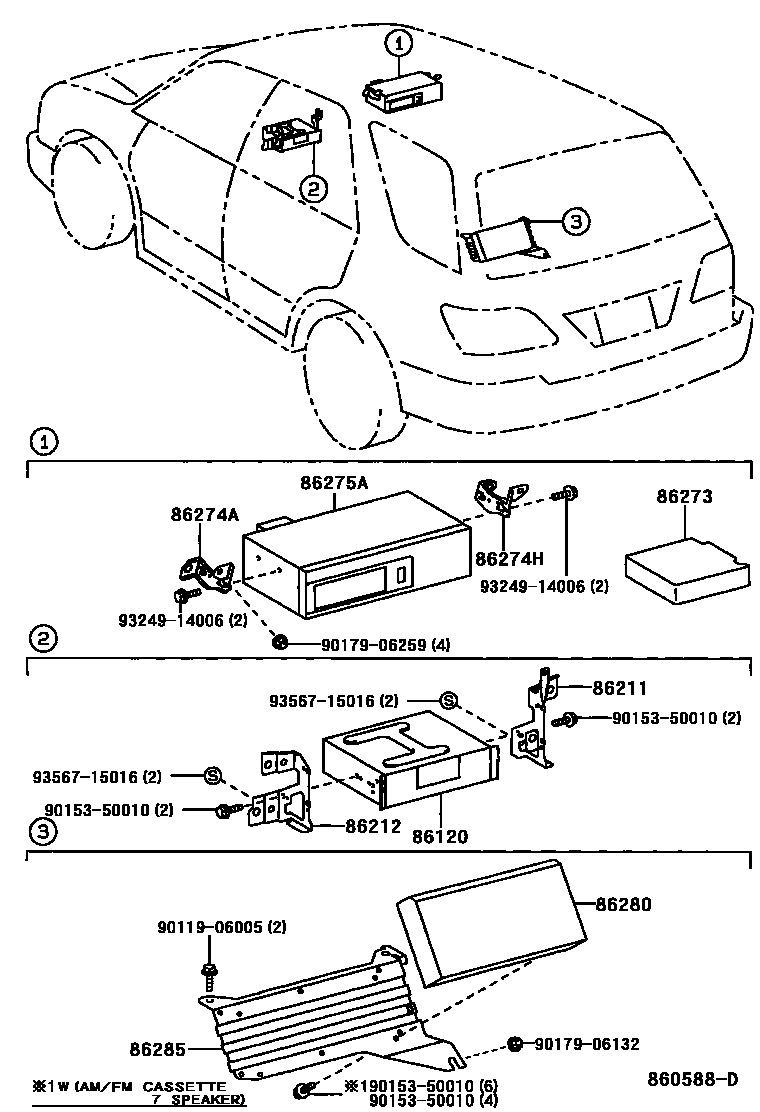

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-48050iMCU1#199801

PIONEER

main86120-48060iMCU15199908

PIONEER,TAIWAN SPEC

main86120-48090iMCU1#200007

PIONEER,W(NAVIGATION SYSTEM)

86211BRACKET, RADIO, NO.1

main86211-48010iMCU1#199801

main86211-48020iMCU1#200007

W(EMV & NAVIGATION SYSTEM)

86212BRACKET, RADIO, NO.2

main86212-48010iMCU1#199801

main86212-48020iMCU1#200007

W(EMV & NAVIGATION SYSTEM)

86273MAGAZINE, DISC PLAYER

main86273-50050iMCU1#199801

86274ABRACKET, DISC PLAYER

main86274-48030iMCU1#199801

86274HBRACKET, DISC PLAYER

main86274-48040iMCU1#199801

86275ACHANGER, DISC PLAYER

main86275-48020iMCU1#199801

main86275-48030iMCU1#199801-200108

W(AM/FM CASSETTE 7SPEAKER)

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-48020iMCU1#199801-200007

main86280-48030iMCU1#199801-199812

NAKAMICHI

sub86280-48031

main86280-48031iMCU1#199812

W(AM/FM CASSETTE 7SPEAKER)

main86280-48050iMCU1#200007

86285BRACKET, AMPLIFIER, NO.1

main86285-48020iMCU1#199801-200005

main86285-48030iMCU1#200005

9011906005

main90119-06005

9015350010

main90153-50010

9017906132

main90179-06132

9017906259

main90179-06259

9324914006

main93249-14006

9356715016

main93567-15016

15 parts on this diagram · 2 diagrams in section
