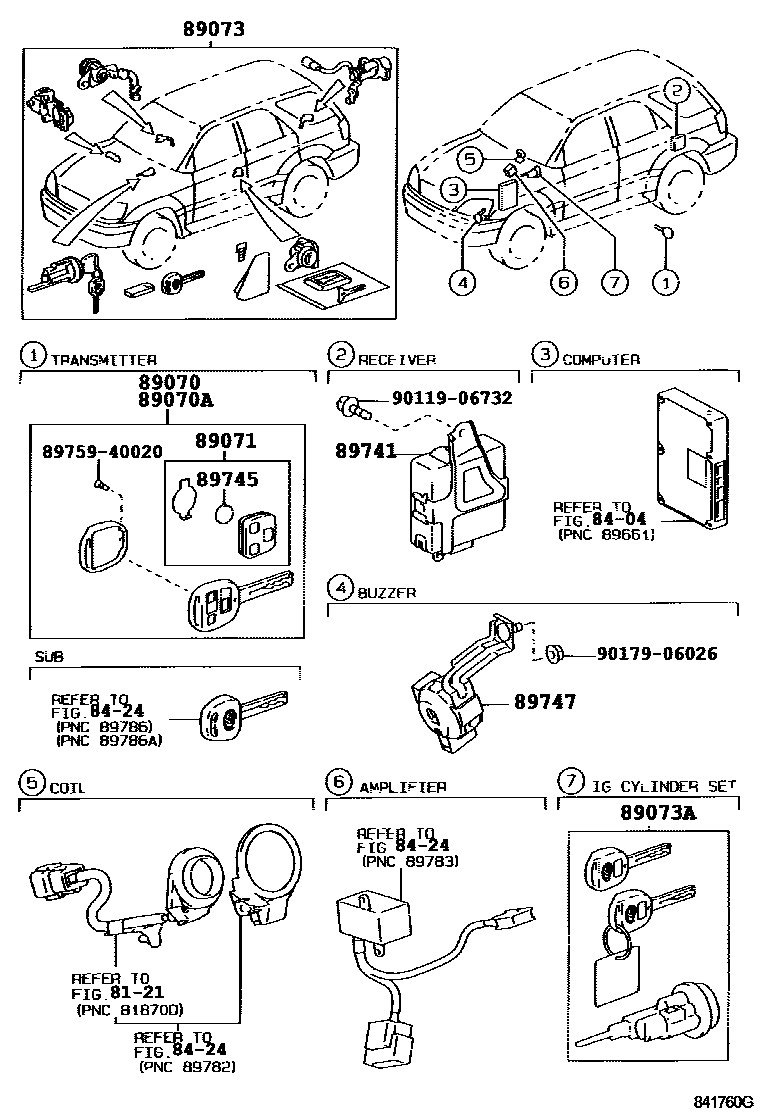

WIRELESS DOOR LOCK

0001 1 0002 1

8121

8404

8424

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-48020iMCU1#199801

main89070-48050iMCU15199908

TAIWAN SPEC

sub89070-48051

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-48030iMCU1#199801

main89070-48060iMCU15199908

TAIWAN SPEC

sub89070-48061

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-48010iMCU1#199801-200007

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-48010iMCU1#199801-199809

sub89073-48011

main89073-48011iMCU1#199809

main89073-48040iMCU15199908

TAIWAN SPEC

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-48020iMCU1#199801

main89073-48030iMCU15199908

TAIWAN SPEC

89741RECEIVER, DOOR CONTROL

main89741-48020iMCU1#199801

89745BATTERY, TRANSMITTER

main89745-48010iMCU1#199801-200007

sub89745-40010

89747BUZZER, WIRELESS DOOR LOCK

main89747-48010iMCU1#199801

8975940020SCREW, DOOR CONTROL TRANSMITTER

main89759-40020

9011906732

main90119-06732

9017906026

main90179-06026

14 parts on this diagram · 2 diagrams in section
