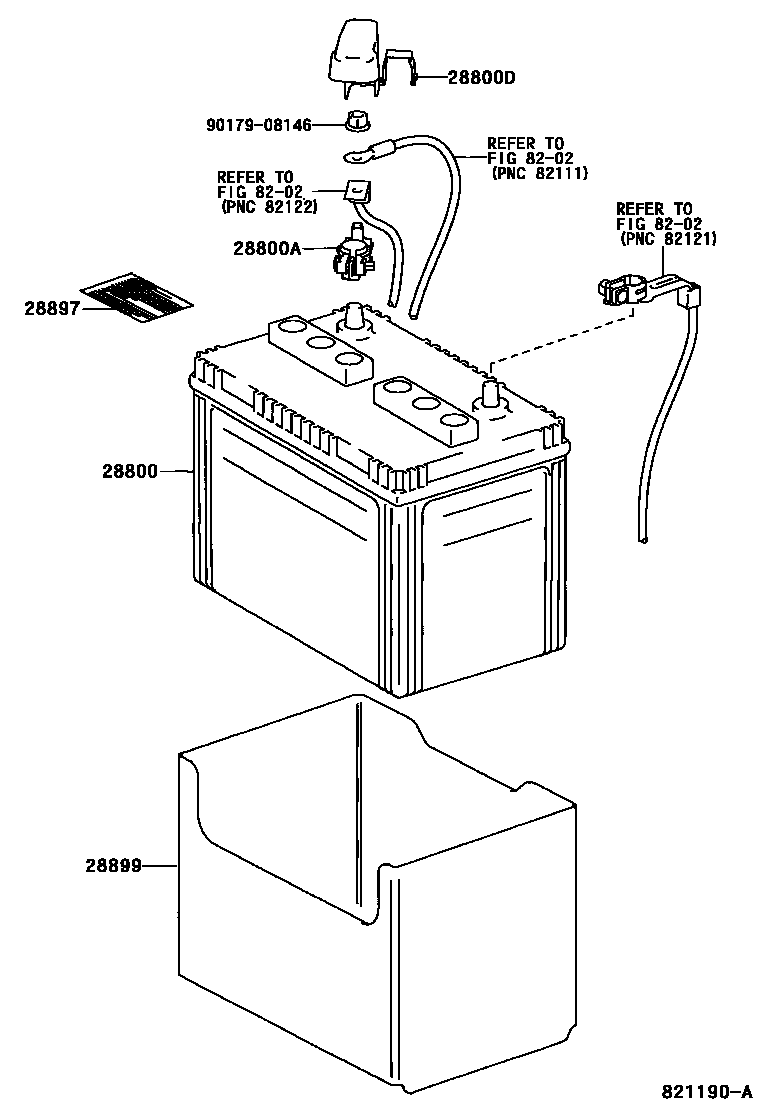

BATTERY & BATTERY CABLE

28800BATTERY

main28800-64132i1MZFE..MCU1#200007

80D26L

sub28800-54020

main28800-74142i1MZFE..MCU1#199801-200007

80D26L

sub28800-64132

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1MZFE..MCU1#199801-199912

main90982-05058i1MZFE..MCU1#199912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i1MZFE..MCU1#199801

28897PLATE, BATTERY CAUTION

main28897-46020i1MZFE..MCU1#199801

CANADA SPEC

main28898-20010i1MZFE..MCU1#199801

28899INSULATOR, BATTERY

main28899-64110i1MZFE..MCU1#199801-200007

8202

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
