MUDGUARD & SPOILER

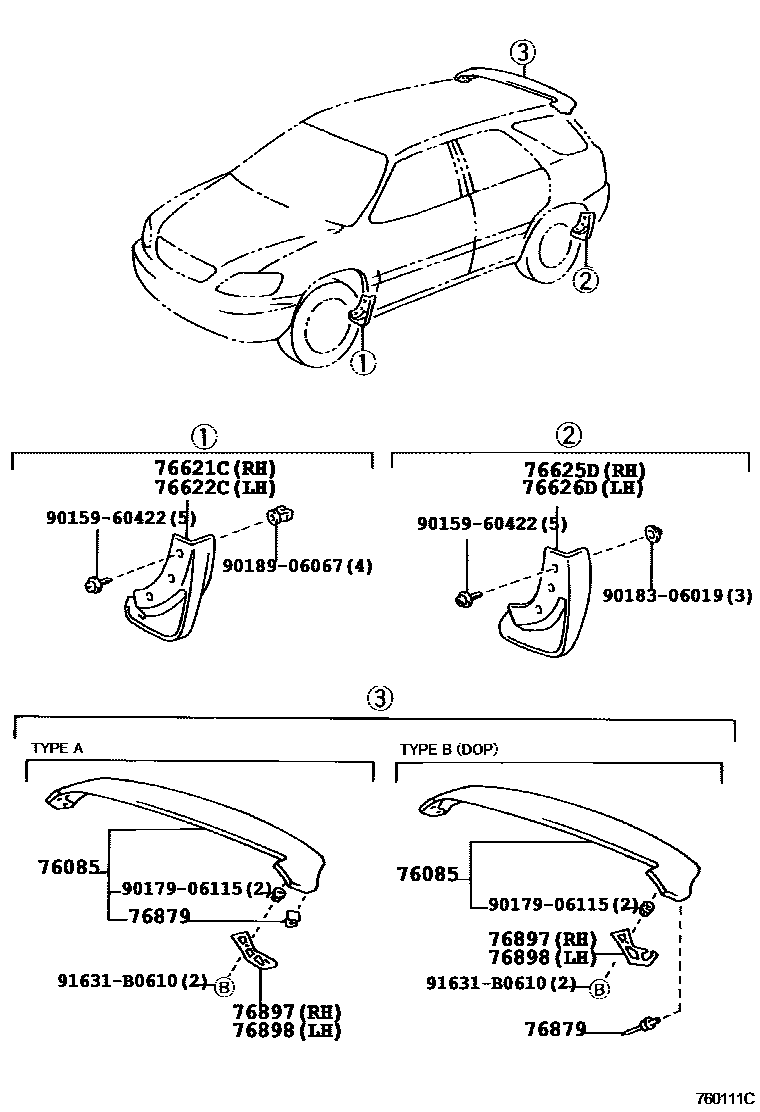

Parts diagram
76085SPOILER SUB-ASSY, REAR
main76871-48900i199908
TYPE A:REFER TO ILLUSTRATION
main76871-48901i199908
DOP;TYPE B:REFER TO ILLUSTRATION
76621CMUDGUAD, FRONT FENDER, RH
main76621-48010-A3i200007
LT.GRAY M.M.,065
sub76621-48010
main76621-48010-A4i200207-200209
COACH EDITION(CANADA),WHITE PEARL CS.,062
sub76621-48010
main76621-48010-A4i200203-200207
COACH EDITION(USA/CANADA),WHITE PEARL CS.,062
sub76621-48010
main76621-48010-B0i199801
LT.GRAIGE ME.,4P2
sub76621-48010
main76621-48010-B2i200203-200207
COACH EDITION(USA/CANADA),DK.GRAY,1C6
sub76621-48010
main76621-48010-B2i200207-200209
COACH EDITION(CANADA),DK.GRAY,1C6
sub76621-48010
main76621-48010-B5i200007
*106,SILVER ME.,1C0
sub76621-48010
main76621-48010-C1i200007
GRAYISH ROZE M.M.,3P4
sub76621-48010
main76621-48010-C2i200007
*106,BLACK,202
sub76621-48010
main76621-48010-D0i199801-200003
DK. GRAY M.,202
sub76621-48010
main76621-48010-D1i199801-200007
RED MC.,3M8
sub76621-48010
main76621-48010-D3i200003
*104,DK. GRAY M.,202
sub76621-48010
main76621-48010-D4i200007
GRAYISH BLUE M.M.,8P6
sub76621-48010
main76621-48010-E1i200007
*104,DK.BLUE ME,8P4
sub76621-48010
main76621-48010-E2i200207-200209
COACH EDITION(CANADA),BEIGE SF.,4P2
sub76621-48010
main76621-48010-E2i200203-200207
COACH EDITION(USA/CANADA),BEIGE SF.,4P2
sub76621-48010
main76621-48010-G0i199801-200003
YELLOW SILVER,057
sub76621-48010
main76621-48010-G1i200003-200007
YELLOW SILVER,057
sub76621-48010
main76621-48010-H0i199801-199908
GRAY ME.,6R1
sub76621-48010
main76621-48010-H0i199908-200003
GRAY ME.,6R1 ,6R6
sub76621-48010
main76621-48010-H1i200003
GRAY ME.,6R1 ,6R6
sub76621-48010
main76621-48010-J0i199801-200003
GRAY ME.,1C0
sub76621-48010
main76621-48010-J1i199801-200007
NIGHT BLUE M,8M8
sub76621-48010
main76621-48010-J2i200003
*104,GRAY ME.,1C0
sub76621-48010
main76621-48010-J3i200007
*106,DK.BLUE M.M.,8P4
sub76621-48010
main76621-48010-K0i199801-199908
BEIGE ME.,4P3
sub76621-48010
76622CMUDGUARD, FRONT FENDER, LH
main76622-48010-A3i200007
LT.GRAY M.M.,065
sub76622-48010
main76622-48010-A4i200207-200209
COACH EDITION(CANADA),WHITE PEARL CS.,062
sub76622-48010
main76622-48010-A4i200203-200207
COACH EDITION(USA/CANADA),WHITE PEARL CS.,062
sub76622-48010
main76622-48010-B0i199801
LT.GRAIGE ME.,4P2
sub76622-48010
main76622-48010-B2i200203-200207
COACH EDITION(USA/CANADA),DK.GRAY,1C6
sub76622-48010
main76622-48010-B2i200207-200209
COACH EDITION(CANADA),DK.GRAY,1C6
sub76622-48010
main76622-48010-B5i200007
*106,SILVER ME.,1C0
sub76622-48010
main76622-48010-C1i200007
GRAYISH ROZE M.M.,3P4
sub76622-48010
main76622-48010-C2i200007
*106,BLACK,202
sub76622-48010
main76622-48010-D0i199801-200003
DK. GRAY M.,202
sub76622-48010
main76622-48010-D1i199801-200007
RED MC.,3M8
sub76622-48010
main76622-48010-D3i200003
*104,DK. GRAY M.,202
sub76622-48010
main76622-48010-D4i200007
GRAYISH BLUE M.M.,8P6
sub76622-48010
main76622-48010-E1i200007
*104,DK.BLUE ME,8P4
sub76622-48010
main76622-48010-E2i200203-200207
COACH EDITION(USA/CANADA),BEIGE SF.,4P2
sub76622-48010
main76622-48010-E2i200207-200209
COACH EDITION(CANADA),BEIGE SF.,4P2
sub76622-48010
main76622-48010-G0i199801-200003
YELLOW SILVER,057
sub76622-48010
main76622-48010-G1i200003-200007
YELLOW SILVER,057
sub76622-48010
main76622-48010-H0i199801-199908
GRAY ME.,6R1
sub76622-48010
main76622-48010-H0i199908-200003
GRAY ME.,6R1 ,6R6
sub76622-48010
main76622-48010-H1i200003
GRAY ME.,6R1 ,6R6
sub76622-48010
main76622-48010-J0i199801-200003
GRAY ME.,1C0
sub76622-48010
main76622-48010-J1i199801-200007
NIGHT BLUE M,8M8
sub76622-48010
main76622-48010-J2i200003
*104,GRAY ME.,1C0
sub76622-48010
main76622-48010-J3i200007
*106,DK.BLUE M.M.,8P4
sub76622-48010
main76622-48010-K0i199801-199908
BEIGE ME.,4P3
sub76622-48010
76625DMUDGUARD, QUARTER PANEL, REAR RH
main76625-48010-A3i200007
LT.GRAY M.M.,065
sub76625-48010
main76625-48010-A4i200207-200209
COACH EDITION(CANADA),WHITE PEARL CS.,062
sub76625-48010
main76625-48010-A4i200203-200207
COACH EDITION(USA/CANADA),WHITE PEARL CS.,062
sub76625-48010
main76625-48010-B0i199801
LT.GRAIGE ME.,4P2
sub76625-48010
main76625-48010-B2i200203-200207
COACH EDITION(USA/CANADA),DK.GRAY,1C6
sub76625-48010
main76625-48010-B2i200207-200209
COACH EDITION(CANADA),DK.GRAY,1C6
sub76625-48010
main76625-48010-B5i200007
*106,SILVER ME.,1C0
sub76625-48010
main76625-48010-C1i200007
GRAYISH ROZE M.M.,3P4
sub76625-48010
main76625-48010-C2i200007
*106,BLACK,202
sub76625-48010
main76625-48010-D0i199801-200003
DK. GRAY M.,202
sub76625-48010
main76625-48010-D1i199801-200007
RED MC.,3M8
sub76625-48010
main76625-48010-D3i200003
*104,DK. GRAY M.,202
sub76625-48010
main76625-48010-D4i200007
GRAYISH BLUE M.M.,8P6
sub76625-48010
main76625-48010-E1i200007
*104,DK.BLUE ME,8P4
sub76625-48010
main76625-48010-E2i200207-200209
COACH EDITION(CANADA),BEIGE SF.,4P2
sub76625-48010
main76625-48010-E2i200203-200207
COACH EDITION(USA/CANADA),BEIGE SF.,4P2
sub76625-48010
main76625-48010-G0i199801-200003
YELLOW SILVER,057
sub76625-48010
main76625-48010-G1i200003-200007
YELLOW SILVER,057
sub76625-48010
main76625-48010-H0i199908-200003
GRAY ME.,6R1 ,6R6
sub76625-48010
main76625-48010-H0i199801-199908
GRAY ME.,6R1
sub76625-48010
main76625-48010-H1i200003
GRAY ME.,6R1 ,6R6
sub76625-48010
main76625-48010-J0i199801-200003
GRAY ME.,1C0
sub76625-48010
main76625-48010-J1i199801-200007
NIGHT BLUE M,8M8
sub76625-48010
main76625-48010-J2i200003
*104,GRAY ME.,1C0
sub76625-48010
main76625-48010-J3i200007
*106,DK.BLUE M.M.,8P4
sub76625-48010
main76625-48010-K0i199801-199908
BEIGE ME.,4P3
sub76625-48010
76626DMUDGUARD, QUARTER PANEL, REAR LH
main76626-48010-A3i200007
LT.GRAY M.M.,065
sub76626-48010
main76626-48010-A4i200207-200209
COACH EDITION(CANADA),WHITE PEARL CS.,062
sub76626-48010
main76626-48010-A4i200203-200207
COACH EDITION(USA/CANADA),WHITE PEARL CS.,062
sub76626-48010
main76626-48010-B0i199801
LT.GRAIGE ME.,4P2
sub76626-48010
main76626-48010-B2i200207-200209
COACH EDITION(CANADA),DK.GRAY,1C6
sub76626-48010
main76626-48010-B2i200203-200207
COACH EDITION(USA/CANADA),DK.GRAY,1C6
sub76626-48010
main76626-48010-B5i200007
*106,SILVER ME.,1C0
sub76626-48010
main76626-48010-C1i200007
GRAYISH ROZE M.M.,3P4
sub76626-48010
main76626-48010-C2i200007
*106,BLACK,202
sub76626-48010
main76626-48010-D0i199801-200003
DK. GRAY M.,202
sub76626-48010
main76626-48010-D1i199801-200007
RED MC.,3M8
sub76626-48010
main76626-48010-D3i200003
*104,DK. GRAY M.,202
sub76626-48010
main76626-48010-D4i200007
GRAYISH BLUE M.M.,8P6
sub76626-48010
main76626-48010-E1i200007
*104,DK.BLUE ME,8P4
sub76626-48010
main76626-48010-E2i200207-200209
COACH EDITION(CANADA),BEIGE SF.,4P2
sub76626-48010
main76626-48010-E2i200203-200207
COACH EDITION(USA/CANADA),BEIGE SF.,4P2
sub76626-48010
main76626-48010-G0i199801-200003
YELLOW SILVER,057
sub76626-48010
main76626-48010-G1i200003-200007
YELLOW SILVER,057
sub76626-48010
main76626-48010-H0i199801-199908
GRAY ME.,6R1
sub76626-48010
main76626-48010-H0i199908-200003
GRAY ME.,6R1 ,6R6
sub76626-48010
main76626-48010-H1i200003
GRAY ME.,6R1 ,6R6
sub76626-48010
main76626-48010-J0i199801-200003
GRAY ME.,1C0
sub76626-48010
main76626-48010-J1i199801-200007
NIGHT BLUE M,8M8
sub76626-48010
main76626-48010-J2i200003
*104,GRAY ME.,1C0
sub76626-48010
main76626-48010-J3i200007
*106,DK.BLUE M.M.,8P4
sub76626-48010
main76626-48010-K0i199801-199908
BEIGE ME.,4P3
sub76626-48010
76879CLIP, REAR SPOILER, NO.1
main76879-10030i199908
TYPE B:REFER TO ILLUSTRATION
main76879-22020i199908
TYPE A:REFER TO ILLUSTRATION
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-48010i199908
TYPE A:REFER TO ILLUSTRATION
main76897-48020i199908
TYPE B:REFER TO ILLUSTRATION
76898PROTECTOR, REAR SPOILER, SIDE LH
main76898-48010i199908
TYPE A:REFER TO ILLUSTRATION
main76898-48020i199908
TYPE B:REFER TO ILLUSTRATION
9015960422
main90159-60422
9017906115
main90179-06115
9018306019
main90183-06019
9018906067
main90189-06067
91631B0610
main91631-B0610

13 parts on this diagram · 1 diagram in section
