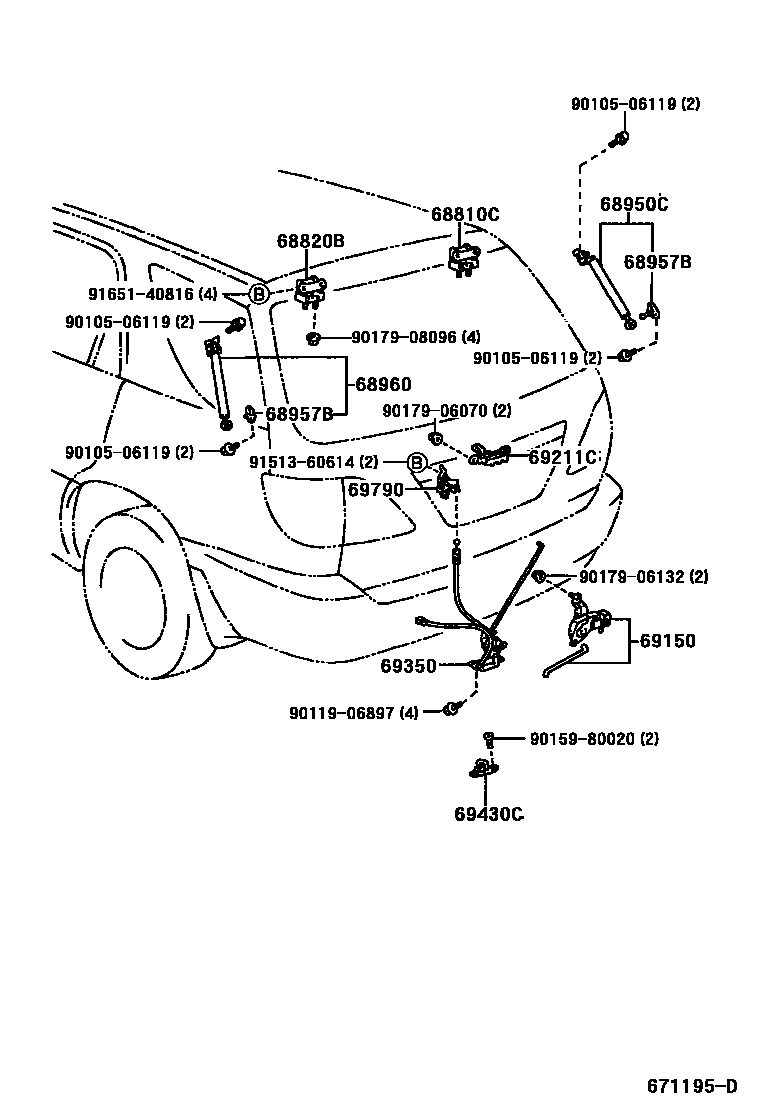

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
68820BHINGE ASSY, BACK DOOR, LH
68950CSTAY ASSY, BACK DOOR, RH
68957BBRACKET, BACK DOOR STAY, LOWER
68960STAY ASSY, BACK DOOR, LH
69150ACTUATOR ASSY, BACK DOOR LOCK
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69790CONTROL ASSY, BACK DOOR LOCK
9010506119
main90105-06119
9011906897
main90119-06897
9015980020
main90159-80020
9017906070
main90179-06070
9017906132
main90179-06132
9017908096
main90179-08096
9151360614
main91513-60614
9165140816
main91651-40816
18 parts on this diagram · 1 diagram in section
