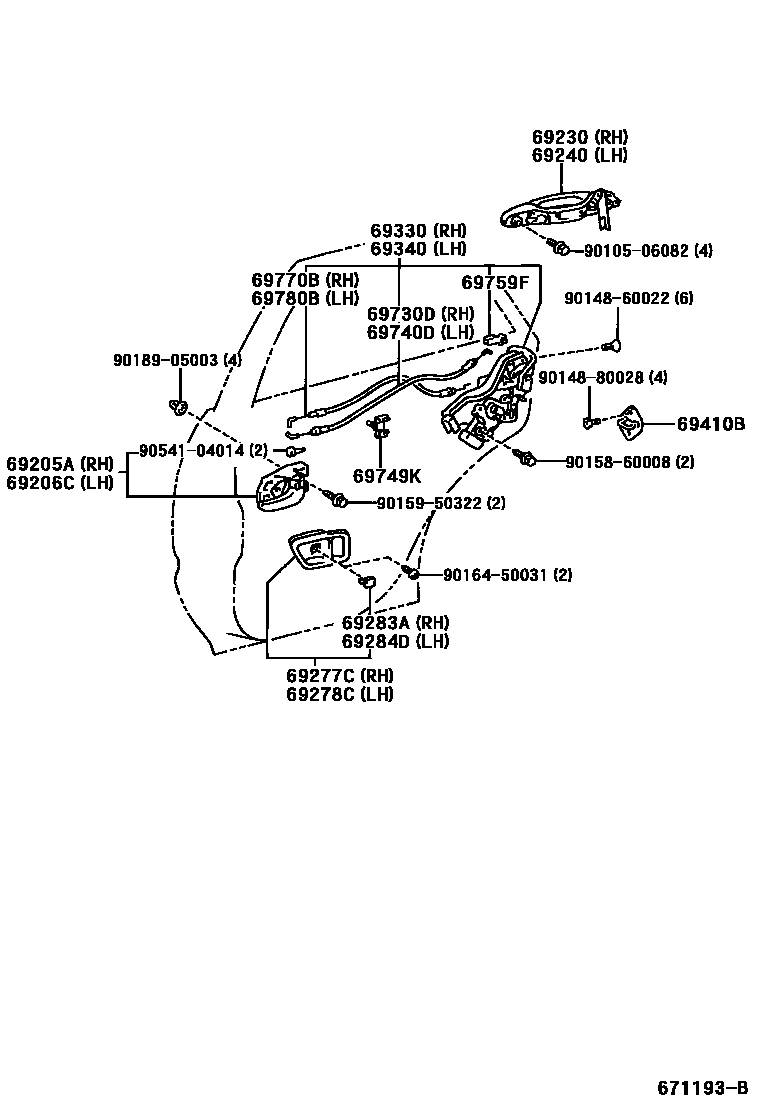

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PM.,057
SILVER ME.,1C0
BLACK,202
RED MC.,3M8
BEIGE SF.,4P2
BROWN ME.,4P3
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
BLUE M.M.,8M8
WHITE PEARL CS.,065
COACH EDITION(CANADA),WHITE PEARL CS,062
COACH EDITION(USA/CANADA),WHITE PEARL CS,062
SILVER ME.,1C0
COACH EDITION(CANADA),DK.GRAY M.M.,1C6
COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6
BLACK,202
ROSE M.M.,3P4
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PM.,057
SILVER ME.,1C0
BLACK,202
RED MC.,3M8
BEIGE SF.,4P2
BROWN ME.,4P3
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
BLUE M.M.,8M8
WHITE PEARL CS.,065
COACH EDITION(USA/CANADA),WHITE PEARL CS,062
COACH EDITION(CANADA),WHITE PEARL CS,062
SILVER ME.,1C0
COACH EDITION(CANADA),DK.GRAY M.M.,1C6
COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6
BLACK,202
ROSE M.M.,3P4
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749KCLAMP, REAR DOOR LOCK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
GREEN
GRAY
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015860008
main90158-60008
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9054104014
main90541-04014
25 parts on this diagram · 1 diagram in section
