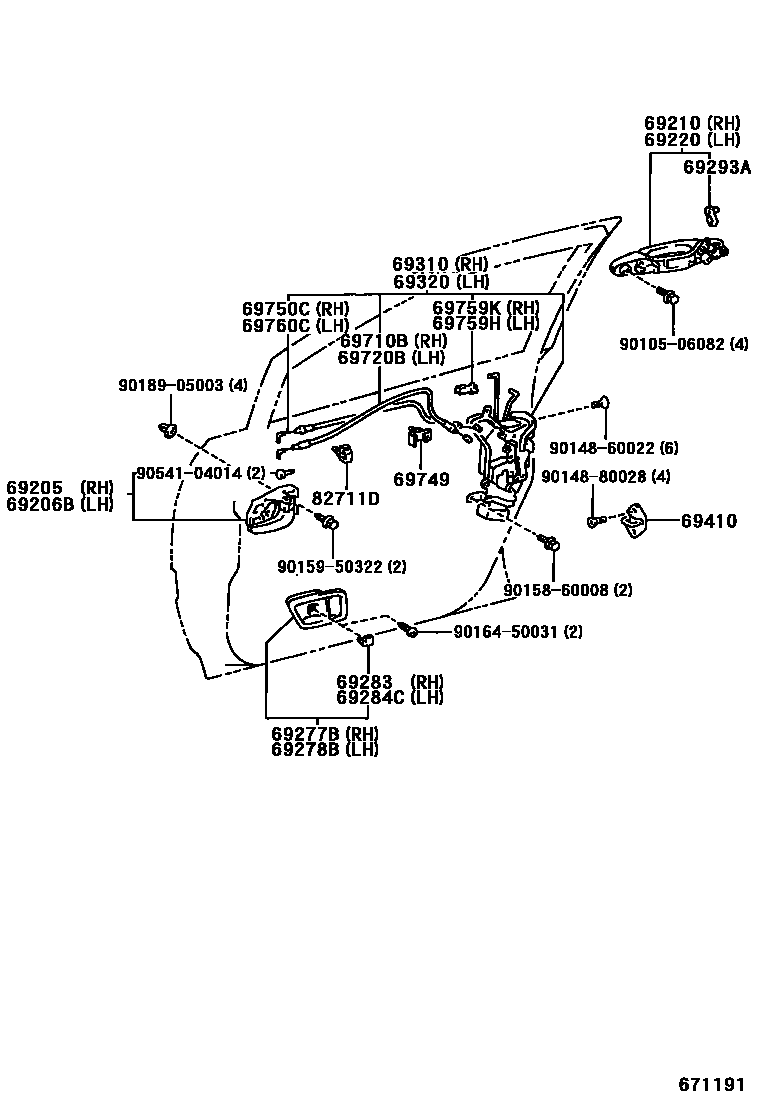

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,065
WHITE PM.,057
COACH EDITION(USA/CANADA),WHITE PEARL CS,062
COACH EDITION(CANADA),WHITE PEARL CS,062
SILVER ME.,1C0
COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6
COACH EDITION(CANADA),DK.GRAY M.M.,1C6
BLACK,202
ROSE M.M.,3P4
RED MC.,3M8
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,065
WHITE PM.,057
COACH EDITION(USA/CANADA),WHITE PEARL CS,062
COACH EDITION(CANADA),WHITE PEARL CS,062
SILVER ME.,1C0
COACH EDITION(CANADA),DK.GRAY M.M.,1C6
COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6
BLACK,202
ROSE M.M.,3P4
RED MC.,3M8
BEIGE SF.,4P2
GREEN MC.,6R1
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8P4
GRAYISH BLUE ME.,8P6
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
NATURAL
YELLOW
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759KSNAP, DOOR LOCK CONTROL LINK
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015860008
main90158-60008
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9054104014
main90541-04014
28 parts on this diagram · 1 diagram in section
