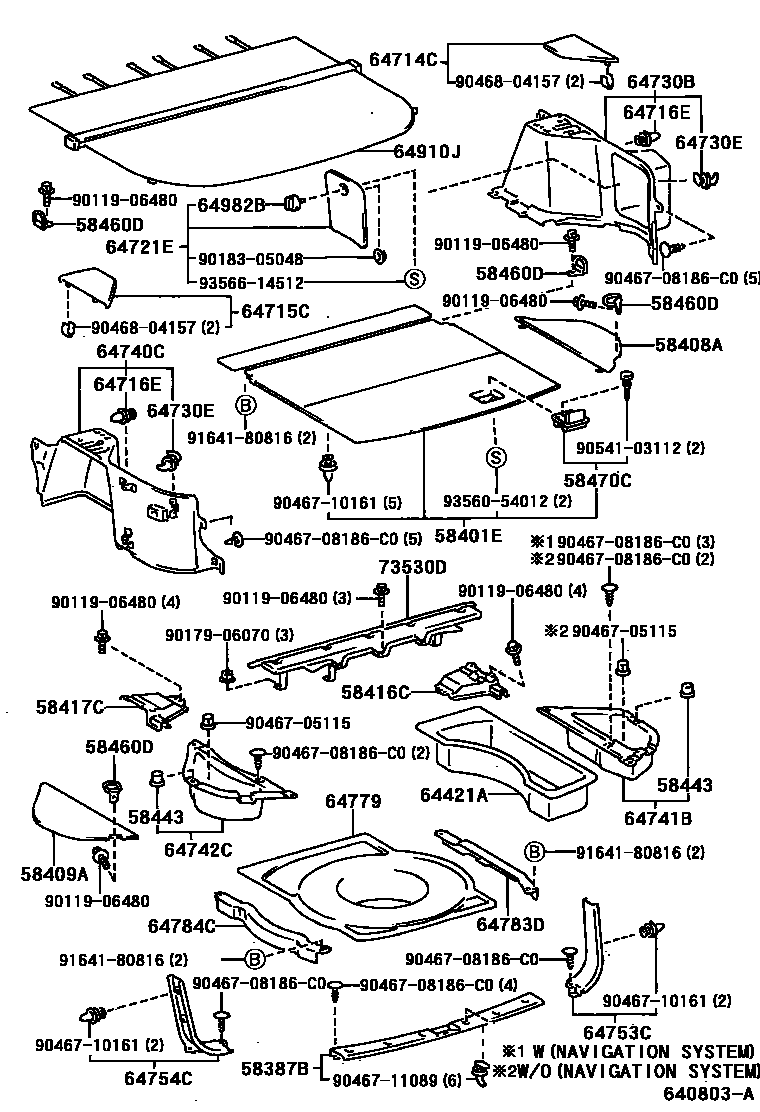

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58401EBOARD SUB-ASSY, DECK
58408ABOARD SUB-ASSY, DECK, NO.2
58409ABOARD SUB-ASSY, DECK, NO.3
58416CBRACKET, DECK BOARD, NO.1 RH
58417CBRACKET, DECK BOARD, NO.1 LH
58443CUSHION, DECK BOARD, NO.1
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
64421ATRAY, LUGGAGE COMPARTMENT
64714CCOVER, DECK SIDE TRIM, RH
64715CCOVER, DECK SIDE TRIM, LH
IVORY,TRIM0#
MD.GRAY,TRIM1#
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64721ECOVER, BACK DOOR
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
BLACK,TRIM2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
BLACK,TRIM2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
BLACK,TRIM2#
64741BBOX, DECK SIDE TRIM, RH
W(NAVIGATION SYSTEM)
64742CBOX, DECK SIDE TRIM, LH
64753CPLATE, REAR FLOOR FINISH SIDE, RH
64754CPLATE, REAR FLOOR FINISH SIDE, LH
64779TRAY, SPARE WHEEL COVER
64783DREINFORCEMENT, SPARE WHEEL COVER
64784CREINFORCEMENT, SPARE WHEEL COVER, NO.2
64910JCOVER ASSY, TONNEAU
64982BKNOB, DECK SIDE TRIM LID
9011906480
main90119-06480
9017906070
main90179-06070
9018305048
main90183-05048
9046705115
main90467-05115
9046708186C0
main90467-08186C0
9046710161
main90467-10161
9046711089
main90467-11089
9046804157
main90468-04157
9054103112
main90541-03112
9164180816
main91641-80816
9356054012
main93560-54012
9356614512
main93566-14512
39 parts on this diagram · 1 diagram in section
