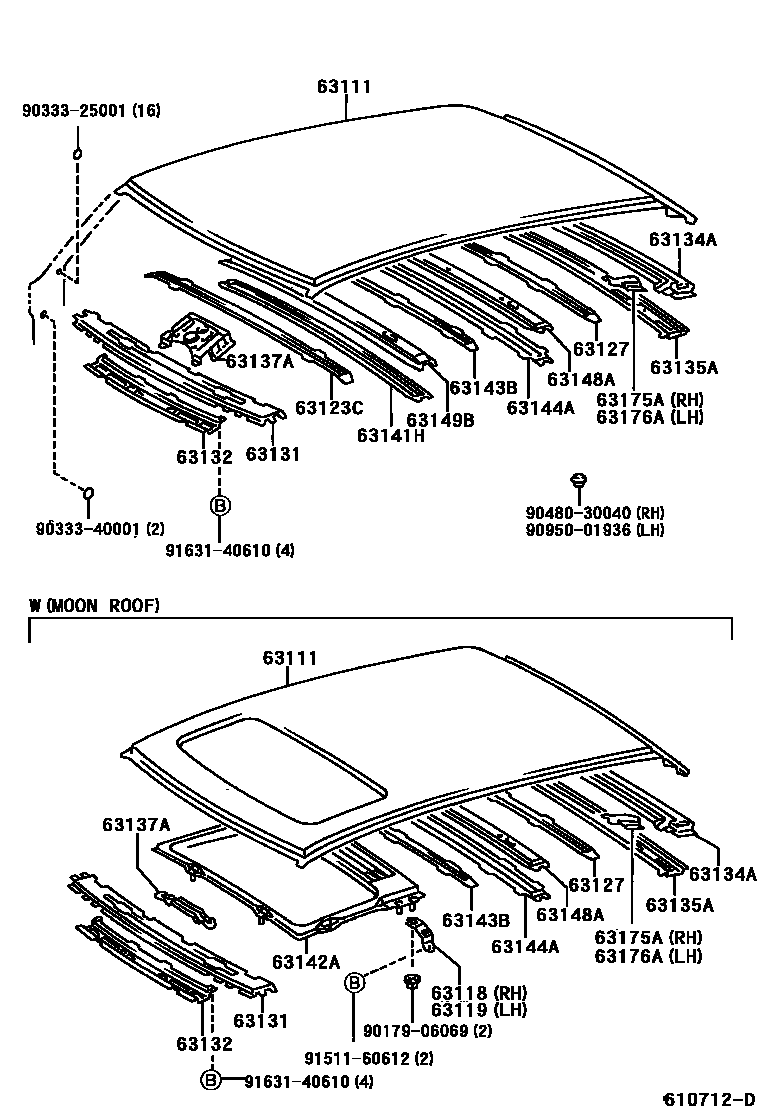

ROOF PANEL & BACK WINDOW GLASS
63111PANEL, ROOF
W(MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
MARK = 80
MARK = 81
MARK = 82
63119SUPPORT, ROOF PANEL, LH
MARK = 80
MARK = 81
MARK = 82
63123CREINFORCEMENT, ROOF PANEL
63127REINFORCEMENT, ROOF PANEL, NO.5
63131PANEL, WINDSHIELD HEADER, OUTER
63132PANEL, WINDSHIELD HEADER, INNER
63134AFRAME, BACK DOOR OPENING, UPPER
63135AFRAME, BACK DOOR OPENING, LOWER
63137ABRACKET, DOME LAMP, NO.1
W(MOON ROOF)
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142AREINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
W(MOON ROOF)
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR
63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH
9017906069
main90179-06069
9033325001
main90333-25001
9033340001
main90333-40001
9048030040
main90480-30040
9095001936
main90950-01936
9151160612
main91511-60612
9163140610
main91631-40610
25 parts on this diagram · 2 diagrams in section
