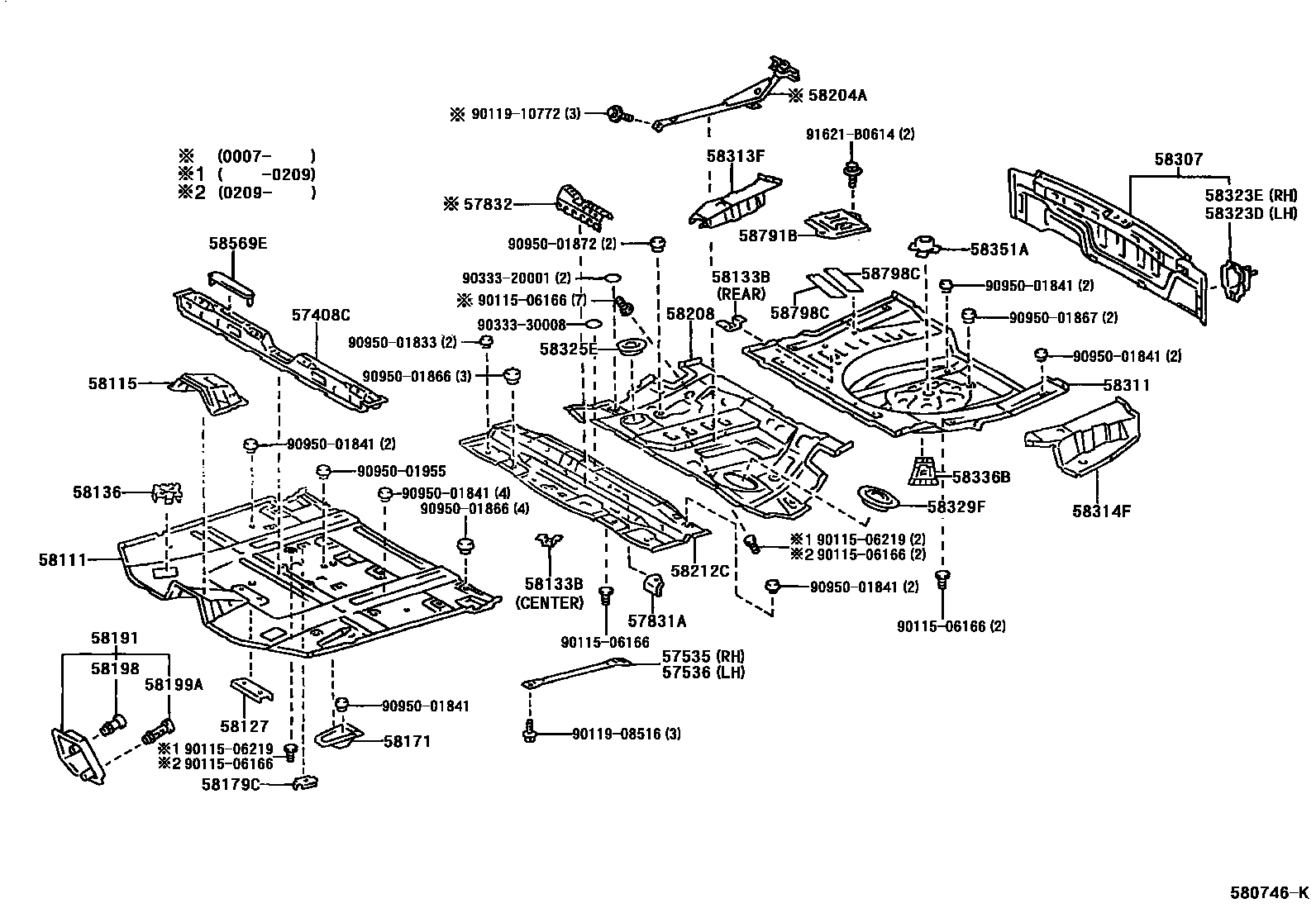

FLOOR PAN & LOWER BACK PANEL
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
sub57451-48901
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58127PATCH, FRONT FLOOR PANEL
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
CENTER FLOOR
REAR FLOOR
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
W(NAVIGATION SYSTEM)
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58351ABRACKET, SPARE WHEEL CARRIER
58569ECOVER, FRONT FLOOR CAUTION PLATE
58791BCARRIER, JACK
58798CCUSHION, JACK CARRIER
9011506166
main90115-06166
9011506219
main90115-06219
9011908516
main90119-08516
9011910772
main90119-10772
9033320001
main90333-20001
9033330008
main90333-30008
9095001833
main90950-01833
9095001841
main90950-01841
9095001866
main90950-01866
9095001867
main90950-01867
9095001872
main90950-01872
9095001955
main90950-01955
91621B0614
main91621-B0614
44 parts on this diagram · 1 diagram in section
