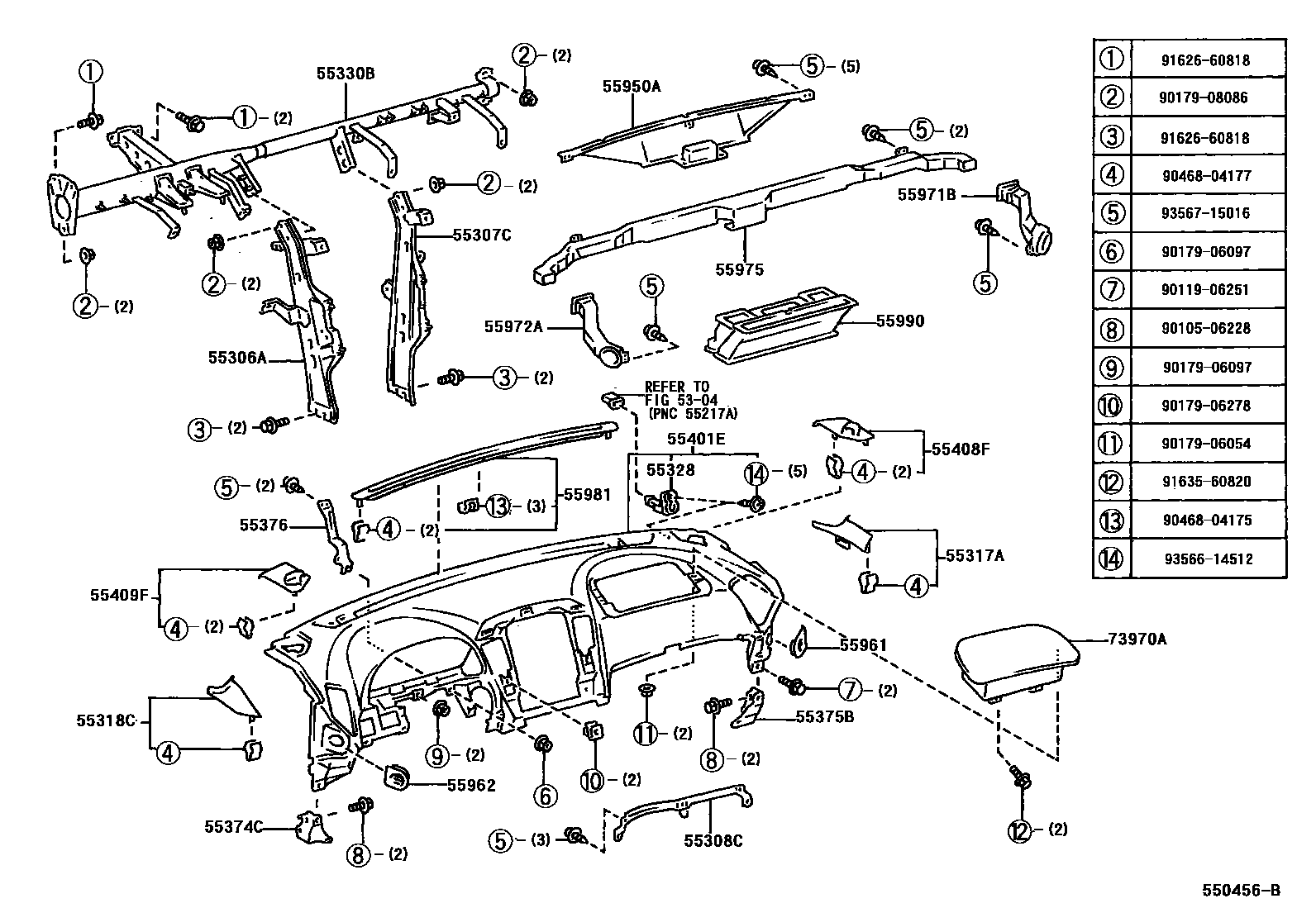

INSTRUMENT PANEL & GLOVE COMPARTMENT
5304
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55317APANEL, INSTRUMENT SIDE, RH
55318CPANEL, INSTRUMENT SIDE, LH
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55975DUCT, SIDE DEFROSTER NOZZLE, NO.5
55981GARNISH, DEFROSTER NOZZLE, NO.1
55990NOZZLE ASSY, CENTER DEFROSTER
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
9010506228
main90105-06228
9011906251
main90119-06251
9017906054
main90179-06054
9017906097
main90179-06097
9017906278
main90179-06278
9017908086
main90179-08086
9046804175
main90468-04175
9046804177
main90468-04177
9162660818
main91626-60818
9163560820
main91635-60820
9356614512
main93566-14512
9356715016
main93567-15016
35 parts on this diagram · 2 diagrams in section
