RADIATOR GRILLE

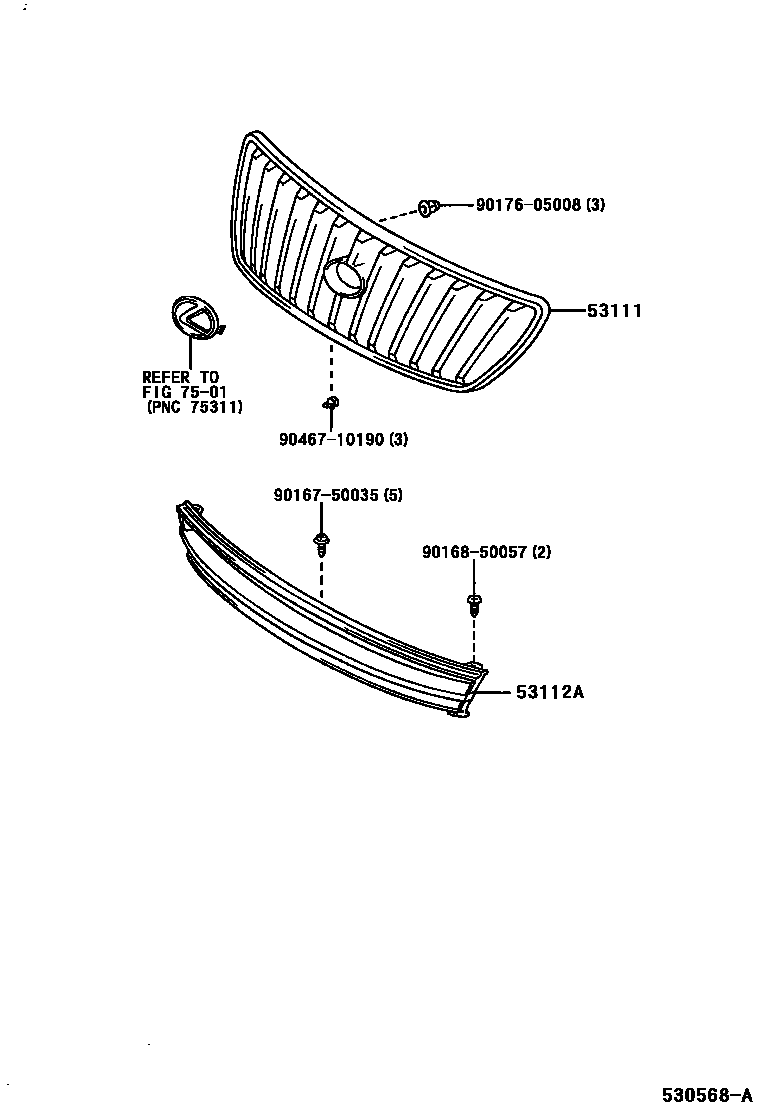

Parts diagram

53111GRILLE, RADIATOR

main53111-48010i199801-200007

main53111-48020i200007

53112AGRILLE, RADIATOR, LOWER

main53112-48010-A1i200007

WHITE PEARL CS.,065

main53112-48010-A3i200207-200209

COACH EDITION(CANADA),WHITE PEARL CS.,062

main53112-48010-A3i200203-200207

COACH EDITION(USA/CANADA),WHITE PEARL CS.,062

main53112-48010-B0i199801-200007

LT.GRAIGE ME.,4P2

main53112-48010-B2i200007

SILVER ME.,1C0

main53112-48010-B3i200207-200209

COACH EDITION(CANADA),DK.GRAY M.M.,1C6

main53112-48010-B3i200203-200207

COACH EDITION(USA/CANADA),DK.GRAY M.M.,1C6

main53112-48010-C0i200007

BLACK,202

main53112-48010-D0i199801-200003

DK. GRAY M.,202

main53112-48010-D1i199801-200007

RED MC.,3M8

main53112-48010-D2i200007

ROSE M.M.,3P4

main53112-48010-D3i200003-200007

DK. GRAY M.,202

main53112-48010-E0i200007

BEIGE SF.,4P2

main53112-48010-G0i199801-200003

YELLOW SILVER,057

main53112-48010-G1i200007

GREEN MC.,6R1

main53112-48010-G2i200007

GRAYISH GREEN M.M.OP,6R6

main53112-48010-G3i200003-200007

YELLOW SILVER,057

main53112-48010-H0i199801-199908

GRAY ME.,6R1

main53112-48010-H0i199908-200003

GRAY ME.,6R1 ,6R6

main53112-48010-H1i200003-200007

GRAY ME.,6R1 ,6R6

main53112-48010-J0i199801-200003

GRAY ME.,1C0

main53112-48010-J1i199801-200007

NIGHT BLUE M,8M8

main53112-48010-J2i200007

DK.BLUE M.M.,8P4

main53112-48010-J3i200007

GRAYISH BLUE ME.,8P6

main53112-48010-J4i200003-200007

GRAY ME.,1C0

main53112-48010-K0i199801-199908

BEIGE ME.,4P3

7501

9016750035

main90167-50035

9016850057

main90168-50057

9017605008

main90176-05008

9046710190

main90467-10190

7 parts on this diagram · 1 diagram in section
