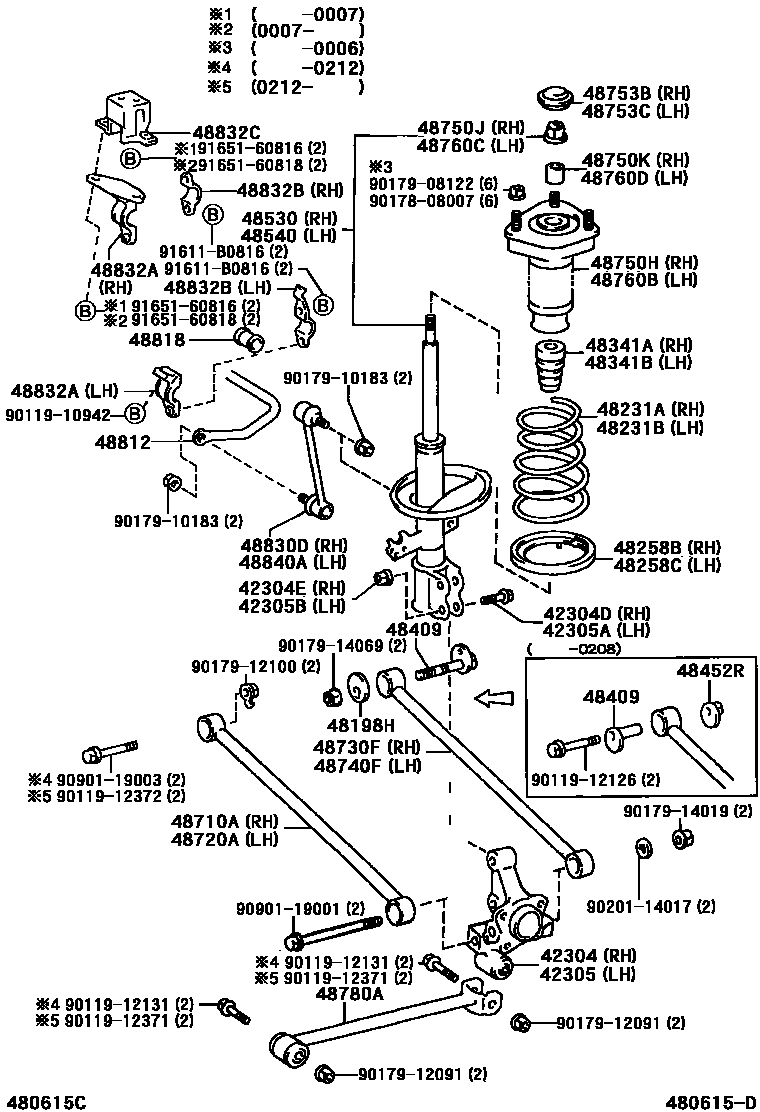

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20090iMCU10199801

main42304-33020iMCU15199801

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001iMCU1#199801

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001iMCU1#199801

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20090iMCU10199801

main42305-33020iMCU15199801

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001iMCU1#199801

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001iMCU1#199801

48198HCAM, CAMBER ADJUST, NO.2

main48198-48010iMCU1#200208

48231ASPRING, COIL, REAR RH

main48231-48010iMCU10199801-200204

sub48231-48011

main48231-48011iMCU10200204

main48231-48020iMCU15199801-200007

main48231-48060iMCU10200103-200106

SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

main48231-48080iMCU15200007-200204

sub48231-48081

main48231-48081iMCU15200204

main48231-48090iMCU15200103-200106

SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

sub48231-48091

48231BSPRING, COIL, REAR LH

main48231-48010iMCU10199801-200204

sub48231-48011

main48231-48011iMCU10200204

main48231-48020iMCU15199801-200007

main48231-48060iMCU10200103-200106

SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

main48231-48080iMCU15200007-200204

sub48231-48081

main48231-48081iMCU15200204

main48231-48090iMCU15200103-200106

SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

sub48231-48091

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32020iMCU1#199801

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32020iMCU1#199801

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-48010iMCU1#199801

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-48010iMCU1#199801

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-32030iMCU1#199801-200208

main48409-48010iMCU1#200208

sub48409-48020

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32030iMCU1#199801-200208

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-49125iMCU15199801-200007

main48530-49135iMCU10199801-200007

main48530-49155iMCU10200007

MARK 48530-48050

main48530-49165iMCU15200007

MARK 48530-48060

main48530-49195iMCU15200103-200106

MARK 48530-48080,SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-49065iMCU15199801-200007

main48540-49075iMCU10199801-200007

main48540-49095iMCU10200007

MARK 48540-48050

main48540-49105iMCU15200007

MARK 48540-48060

main48540-49125iMCU15200103-200106

MARK 48540-48080,SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-48010iMCU10199801

main48710-48020iMCU15199801

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-48020iMCU15199801

main48720-48010iMCU10199801

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-48010iMCU10199801-200007

sub48730-48030

main48730-48020iMCU15199801-200007

sub48730-48050

main48730-48030iMCU10200007-200208

main48730-48031iMCU10200208

main48730-48040iMCU10200007-200208

W(DISCHARGE HEADLAMP)

main48730-48041iMCU10200208

W(DISCHARGE HEADLAMP)

main48730-48050iMCU15200007-200208

main48730-48051iMCU15200208

main48730-48060iMCU15200007-200208

W(DISCHARGE HEADLAMP)

main48730-48061iMCU15200208

W(DISCHARGE HEADLAMP)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-48020iMCU15199801-200007

sub48730-48050

main48730-48050iMCU15200007-200208

main48730-48051iMCU15200208

main48740-48010iMCU10199801-200007

sub48740-48020

main48740-48020iMCU10200007-200208

main48740-48021iMCU10200208

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-48010iMCU1#199801

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-14001iMCU1#199801

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iMCU1#199801

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-33010iMCU1#199801

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-33010iMCU1#199801

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-48010iMCU1#199801

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-14001iMCU1#199801

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iMCU1#199801

48780AROD ASSY, STRUT, REAR

main48780-48010iMCU1#199801

48812BAR, STABILIZER, REAR

main48812-33150iMCU15199801-200007

main48812-48010iMCU10199801-200007

main48812-48040iMCU1#200007

main48812-48050iMCU15200103-200106

SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

48818BUSH, STABILIZER, REAR

main48818-20290iMCU15199801-200006

main48818-21020iMCU10200006-200007

main48818-21050iMCU15200103-200106

SILVER SPORTS PACKAGE(USA/HAWAII/P.RICO/TAIWAN)

main48818-21050iMCU15200006-200007

main48818-32080iMCU10199801-200006

sub48818-21020

main48818-48030iMCU1#200007

48830DLINK ASSY, REAR STABILIZER, RH

main48830-32040iMCU15199801

main48830-33010iMCU10199801

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-32050iMCU1#199801

LH

main48832-32070iMCU1#199801

RH

48832BBRACKET, REAR STABILIZER BAR, NO.2

main48832-32060iMCU1#199801

LH

main48832-32080iMCU1#199801

RH

48832CBRACKET, REAR STABILIZER BAR, NO.3

main48832-32090iMCU1#199801

48840ALINK ASSY, REAR STABILIZER, LH

main48830-32040iMCU15199801

main48830-33010iMCU10199801

9011910942

main90119-10942

9011912126

main90119-12126

9011912131

main90119-12131

9011912371

main90119-12371

9011912372

main90119-12372

9017808007

main90178-08007

9017908122

main90179-08122

9017910183

main90179-10183

9017912091

main90179-12091

9017912100

main90179-12100

9017914019

main90179-14019

9017914069

main90179-14069

9020114017

main90201-14017

9090119001

main90901-19001

9090119003

main90901-19003

91611B0816

main91611-B0816

9165160816

main91651-60816

9165160818

main91651-60818

55 parts on this diagram · 2 diagrams in section
