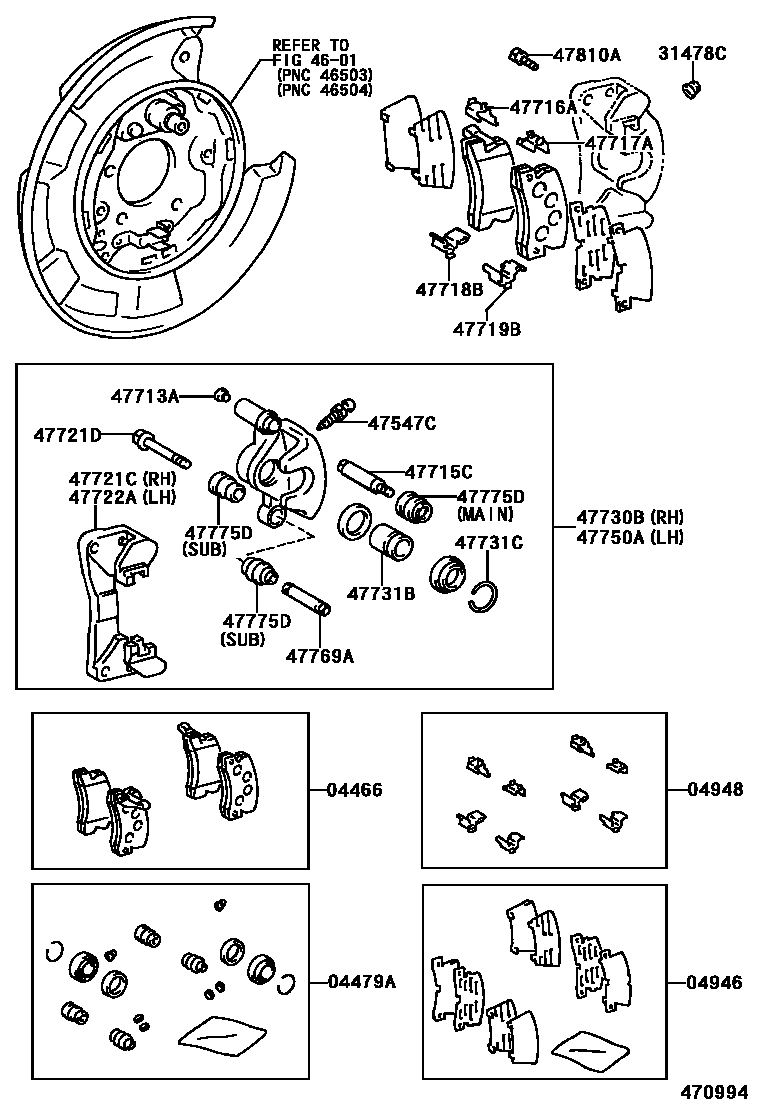

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33050iMCU1#199801-200111

MARK AK PA544

main04466-33110iMCU1#200111

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48010iMCU1#199801

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32070iMCU1#199801-200111

main04946-48020iMCU1#200111

04948FITTING KIT, DISC BRAKE, REAR

main04948-33010iMCU1#199801

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCU1#199801

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMCU1#199801

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iMCU1#199801

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-33020iMCU1#199801

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-33070iMCU1#199801

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-33050iMCU1#199801

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-33010iMCU1#199801

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-33010iMCU1#199801

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20321iMCU1#199801

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08A98iMCU1#199801

*8-1.25PX68-30

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20321iMCU1#199801

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-48020iMCU1#199801

47731BPISTON, REAR DISC BRAKE

main47731-48010iMCU1#199801

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iMCU1#199801

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-48020iMCU1#199801

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iMCU1#199801

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-16020iMCU1#199801

SUB

main47775-32020iMCU1#199801

MAIN

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iMCU10199801

main90119-10445iMCU15199801

23 parts on this diagram · 1 diagram in section
