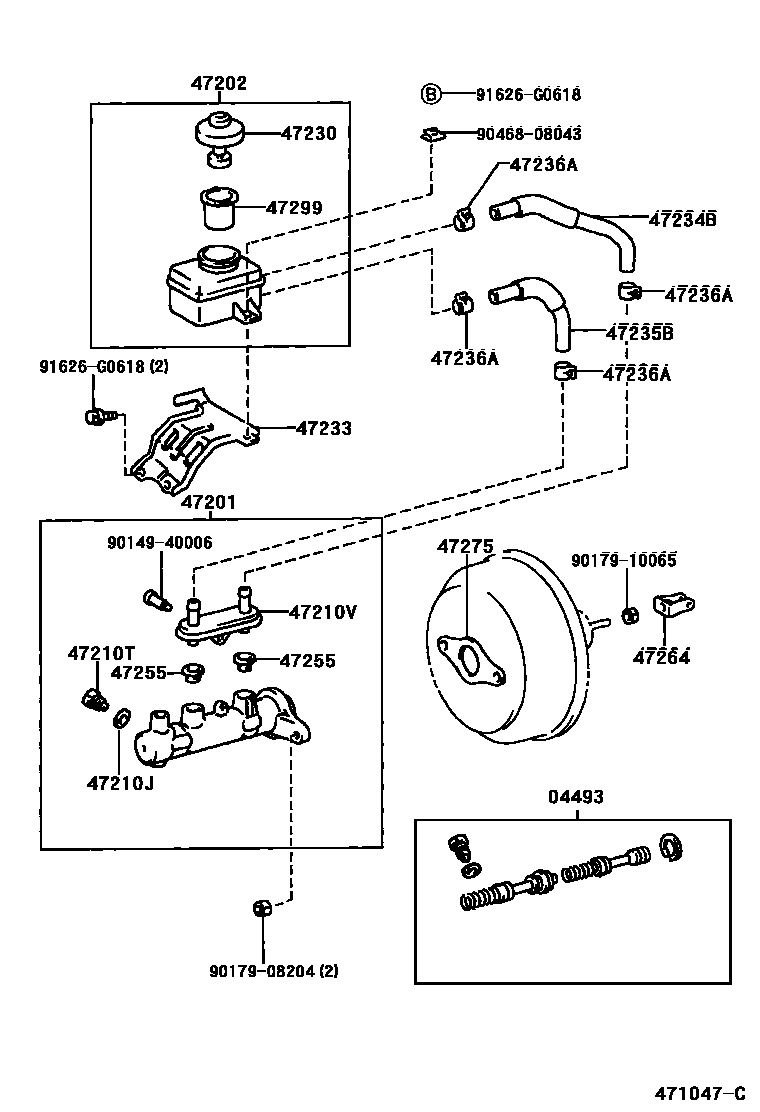

BRAKE MASTER CYLINDER

0001 1 0002 1W(TRACTION CONTROL) 0003 1 0004 1

04493CYLINDER KIT, BRAKE MASTER

main04493-33060iMCU1#199801-200007

sub04493-33160

main04493-33070iMCU10199801-200007

W(TRACTION CONTROL)

main04493-48020iMCU1#200007-200208

main04493-48030iMCU1#200208

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48030iMCU1#199801-200007

main47201-48040iMCU10199801-200007

W(TRACTION CONTROL)

main47201-48070iMCU1#200007-200208

main47201-48090iMCU1#200208

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48010iMCU1#199801-200007

main47220-48060iMCU1#200007

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMCU1#199801-200007

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCU1#199801-200007

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40011iMCU1#199801-200208

main90029-40407iMCU1#200208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iMCU1#200007

sub47230-47090

main84460-30040iMCU1#199801-200007

47233BRACKET, RESERVOIR

main47233-48020iMCU1#199801-200007

main47233-48040iMCU1#200007

47234BTUBE, RESERVOIR, NO.1

main47234-48020iMCU1#199801-200007

sub47234-48040

main47234-48040iMCU1#200007

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-48020iMCU1#199801

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16003iMCU1#199801

sub96134-51500

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iMCU1#200208

main47255-16010iMCU1#199801-200208

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30060iMCU1#200208

main47264-48010iMCU1#199801-200208

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iMCU1#199801-200208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCU1#200007

main47299-32010iMCU1#199801-200007

9014940006

main90149-40006

9017908204

main90179-08204

9017910065

main90179-10065

9046808043

main90468-08043

91626G0618

main91626-G0618

20 parts on this diagram · 4 diagrams in section
