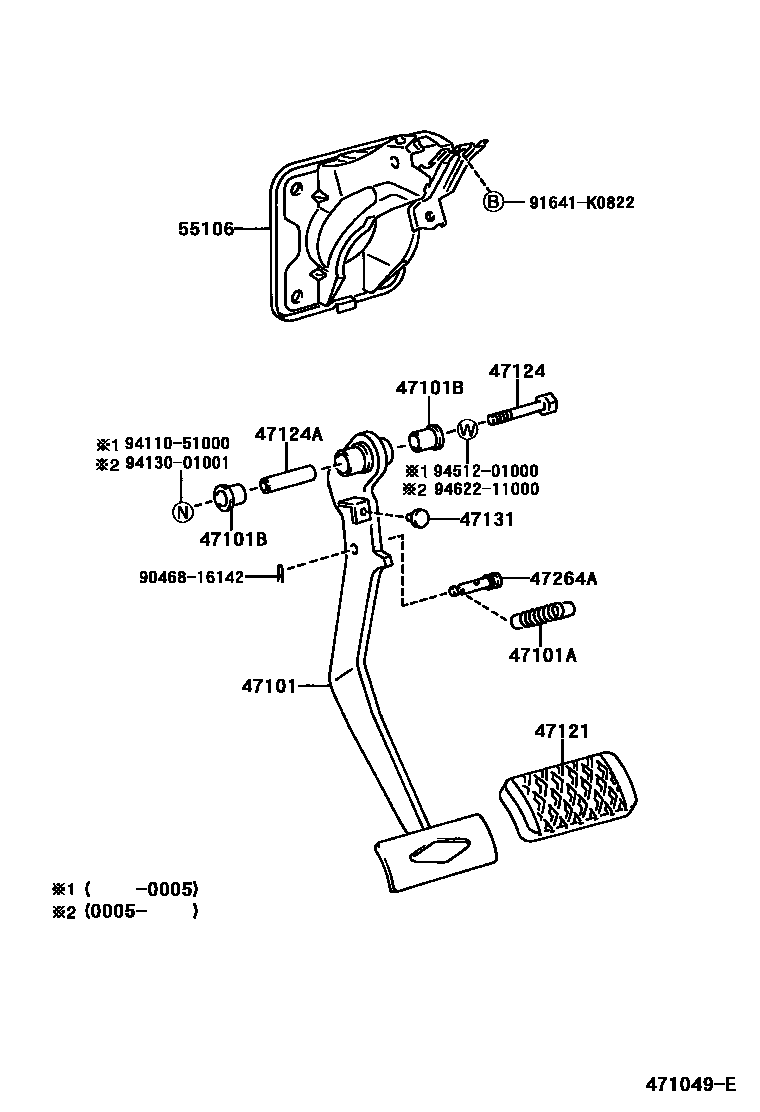

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-48020iMCU1#199801-200208

main47106-48030iMCU1#200208

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCU1#199801

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCU1#199801

47121PAD, BRAKE PEDAL

main47121-50010iMCU1#199801-200011

main47121-50020iMCU1#200011

47124SHAFT, BRAKE PEDAL

main90101-10015iMCU1#200005

main90101-10039iMCU1#199801-200005

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCU1#199801

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCU1#199801

47264APIN(FOR PUSH ROD)

main47148-33010iMCU1#199801-200108

sub47148-33011

main47148-33011iMCU1#200108-200208

main90249-06180iMCU1#200208

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48020iMCU1#199801-200208

main55106-48050iMCU1#200208

9046816142

main90468-16142

91641K0822

main91641-K0822

9411051000

main94110-51000

9413001001

main94130-01001

9451201000

main94512-01000

9462211000

main94622-11000

15 parts on this diagram · 2 diagrams in section
