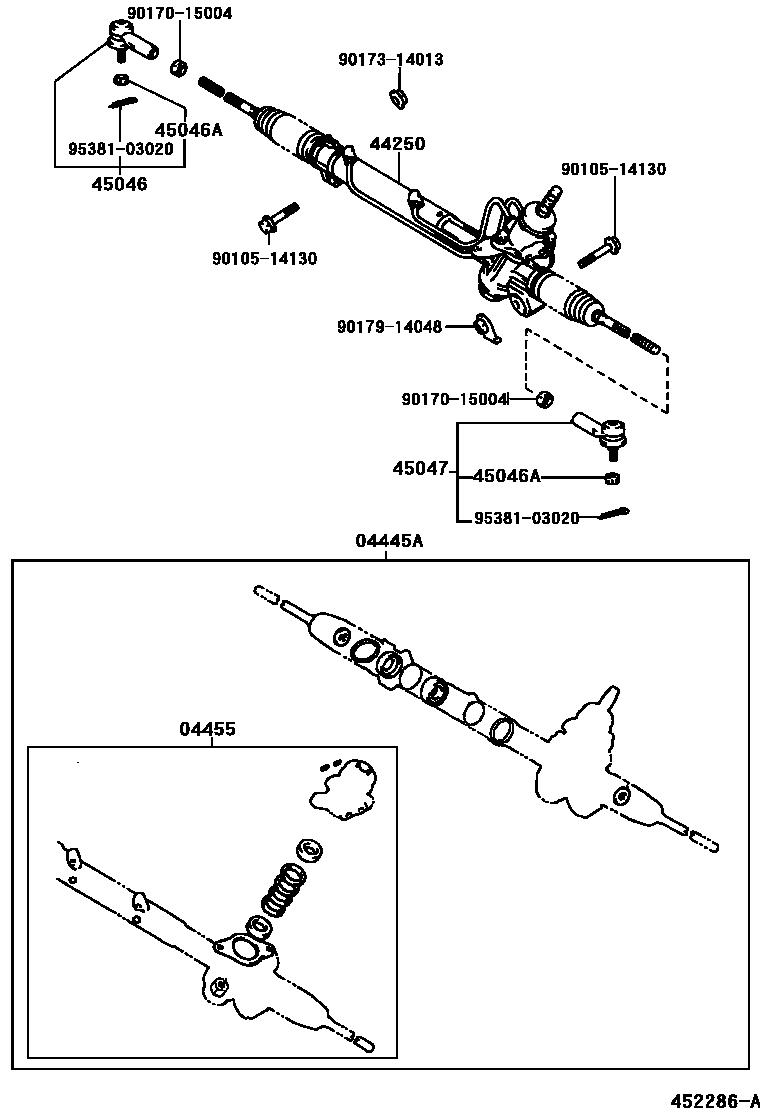

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33080iMCU1#199801-200007

main04445-48030iMCU1#200007

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCU1#199801

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-48020iMCU1#199801-199904

sub44250-48021

main44250-48021iMCU1#199904-200007

sub44250-48040

main44250-48040iMCU1#200007-200011

sub44250-48041

main44250-48041iMCU1#200011-200209

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iMCU1#199801

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCU1#199801

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iMCU1#199801

9010514130

main90105-14130

9017015004

main90170-15004

9017314013

main90173-14013

9017914048

main90179-14048

9538103020

main95381-03020

11 parts on this diagram · 4 diagrams in section
