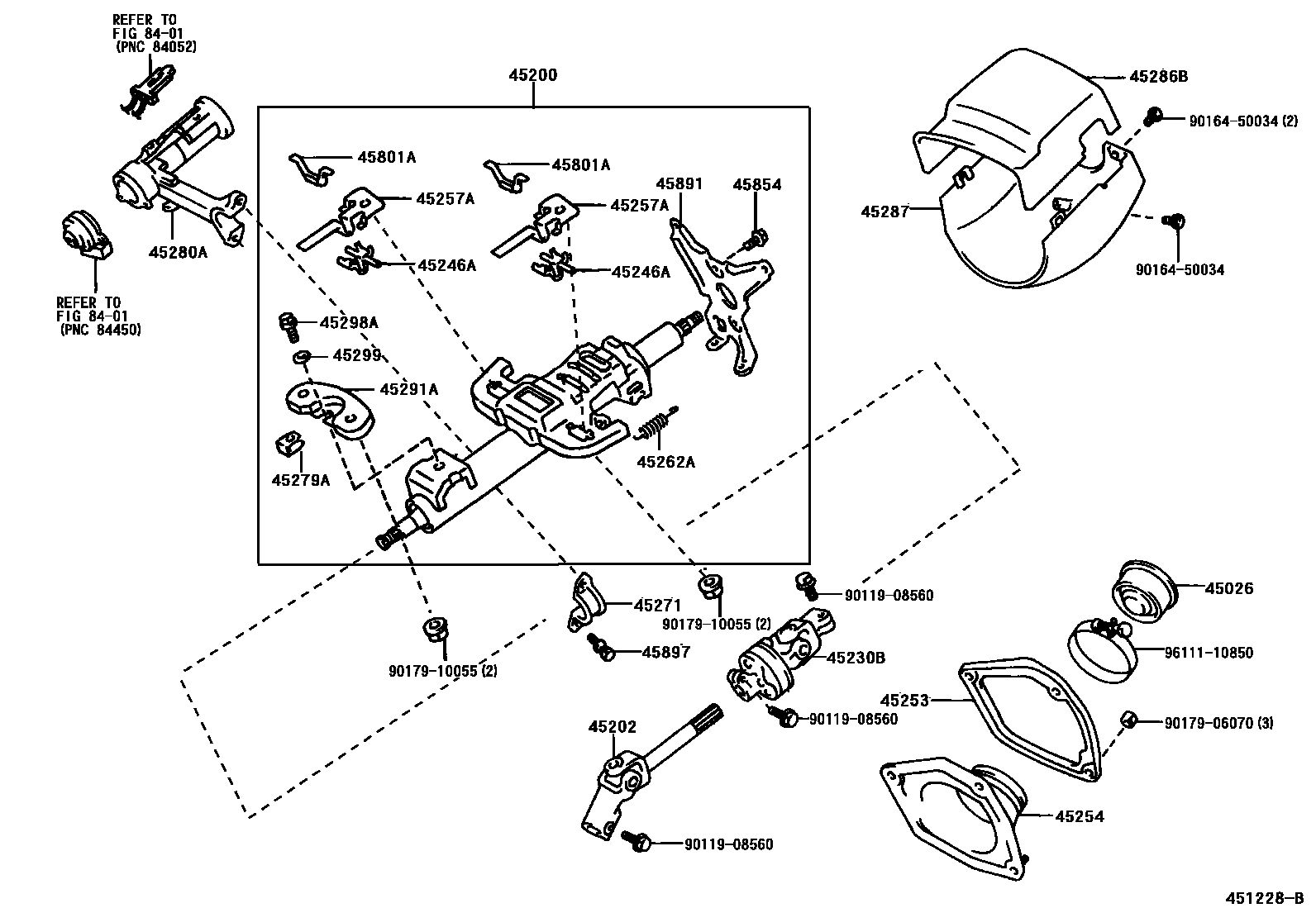

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45200POST ASSY, STEERING
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45262ASPRING, TILT LEVER RETURN
45271CLAMP, STEERING COLUMN, UPPER
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45291ASUPPORT, STEERING COLUMN TUBE
45298ABOLT, STEERING COLUMN LOWER TUBE
45299WASHER, STEERING COLUMN LOWER TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45854BOLT, TURN SIGNAL BRACKET
45891BRACKET, TURN SIGNAL
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9016450034
main90164-50034
9017906070
main90179-06070
9017910055
main90179-10055
9611110850
main96111-10850
27 parts on this diagram · 2 diagrams in section
