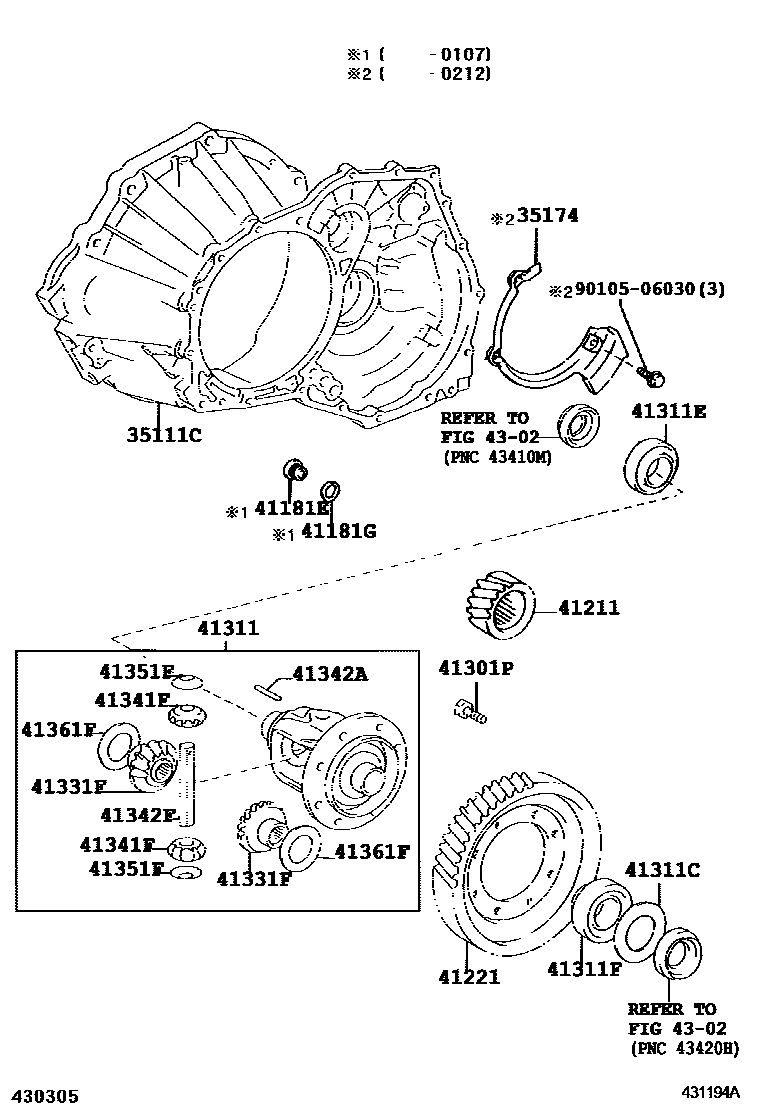

FRONT AXLE HOUSING & DIFFERENTIAL
35111CHOUSING, TRANSAXLE
sub35105-21011
sub35105-48011
35174SEPARATOR, TRANSAXLE HOUSING OIL
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41311CASE, FRONT DIFFERENTIAL
sub41301-28080
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
sub41039-45H00
41341FPINION, FRONT DIFFERENTIAL
sub41039-45H00
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.625
T=1.725
T=1.825
4302
9010506030
main90105-06030
19 parts on this diagram · 2 diagrams in section
