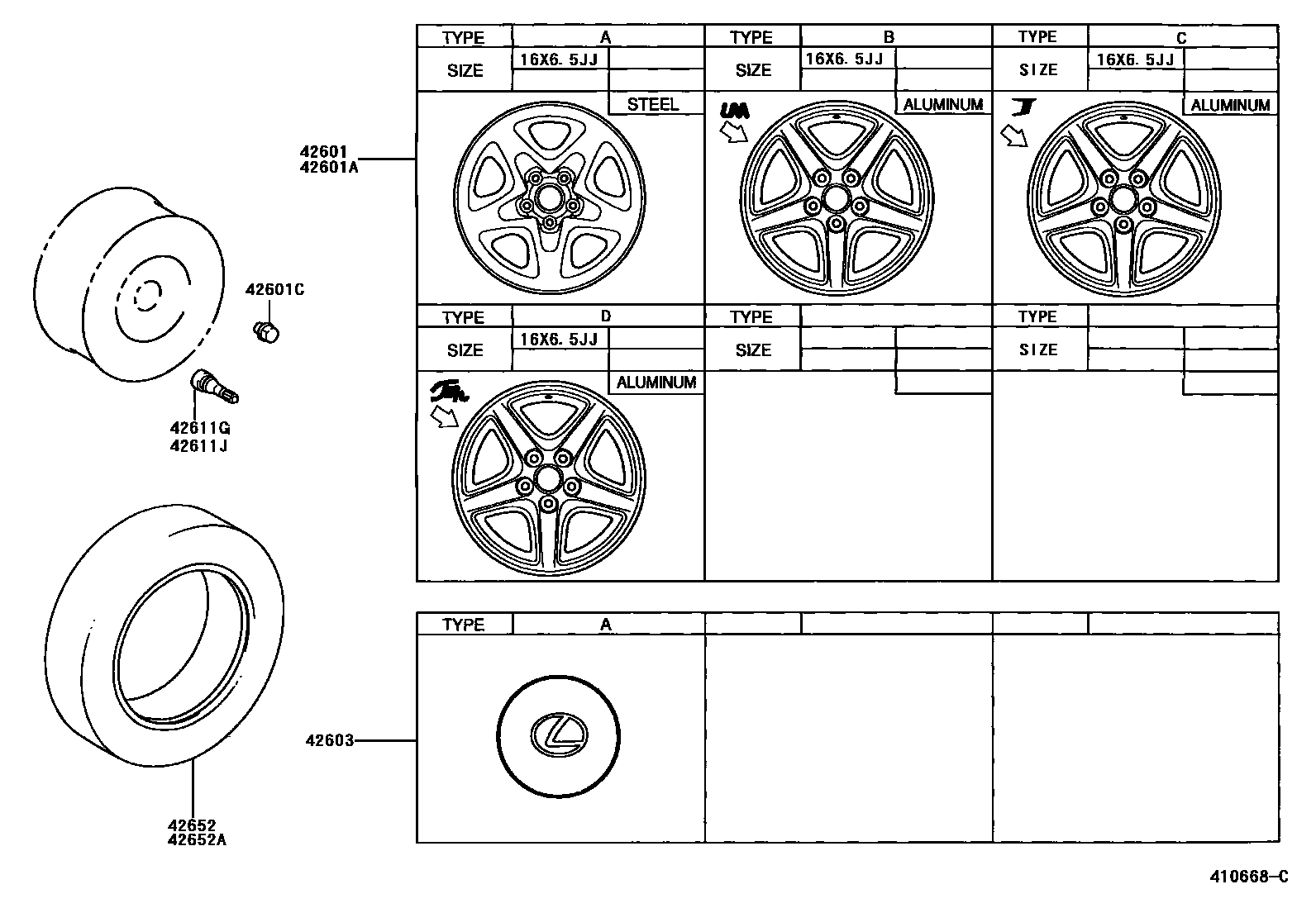

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6.5JJ,TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
16X6.5JJ,COACH EDITION(USA/CANADA), SUPER CHROME METALLIC PAINTED, TYPE C:REFER TOILLUSTRATION
16X6.5JJ,COACH EDITION(CANADA), SUPER CHROME METALLIC PAINTED, TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,COACH EDITION(CANADA), SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
sub42611-48100
16X6.5JJ,COACH EDITION(USA/CANADA), SUPER CHROME METALLIC PAINTED, TYPE B:REFER TOILLUSTRATION
sub42611-48100
42601AWHEEL, DISC (FOR SPARE)
16X6.5JJ,TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION,CHROME PLATED
16X6.5JJ,COACH EDITION(USA/CANADA), SUPER CHROME METALLIC PAINTED, TYPE C:REFER TOILLUSTRATION
16X6.5JJ,COACH EDITION(CANADA), SUPER CHROME METALLIC PAINTED, TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,COACH EDITION(USA/CANADA), SUPER CHROME METALLIC PAINTED, TYPE B:REFER TOILLUSTRATION
sub42611-48100
16X6.5JJ,COACH EDITION(CANADA), SUPER CHROME METALLIC PAINTED, TYPE B:REFER TO ILLUSTRATION
sub42611-48100
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER TO ILLUSTRATION
*CHR,TYPE A:REFER TO ILLUSTRATION
COACH EDITION(CANADA), SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
*SCHR,COACH EDITION(USA/CANADA), SUPER CHROME METALLIC PAINTED, TYPE A:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
L=58
42652TIRE
P225/70R16,*B/S
42652ATIRE (FOR SPARE)
P225/70R16,*B/S
8 parts on this diagram · 2 diagrams in section
