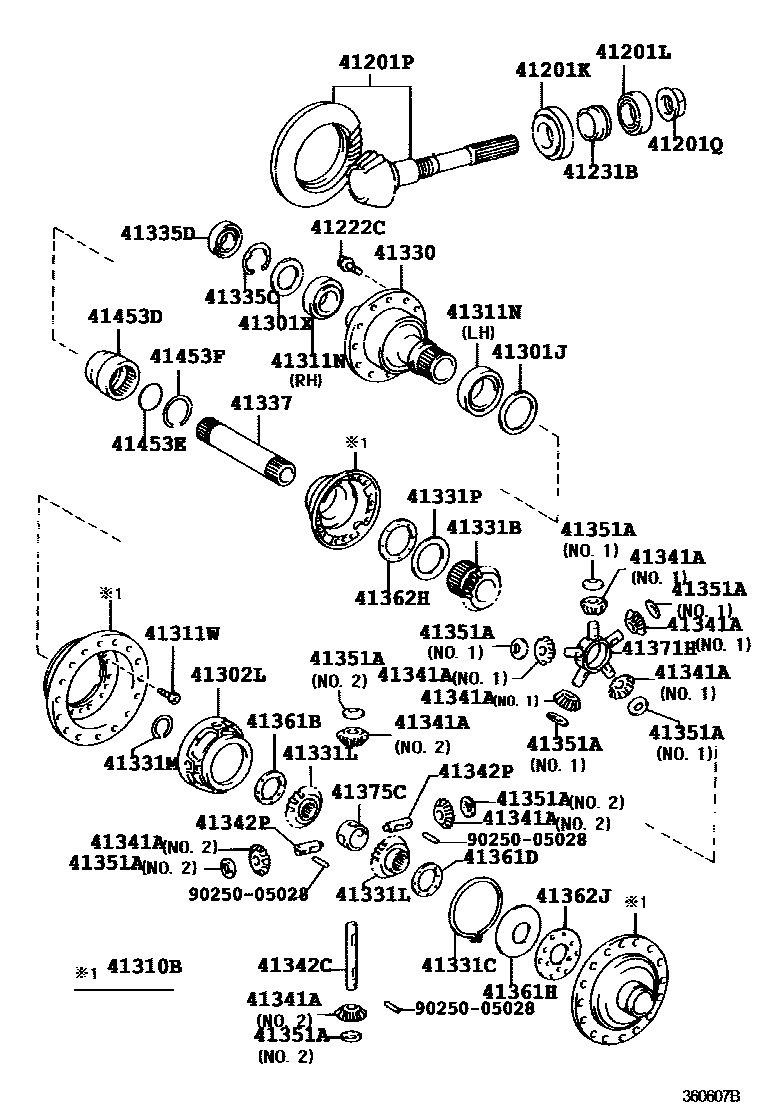

TRANSFER GEAR
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=2.07,MARK AA
T=2.10,MARK AB
T=2.13,MARK AC
T=2.16,MARK BA
T=2.19,MARK BB
T=2.22,MARK BC
T=2.25,MARK CA
T=2.28,MARK CB
T=2.31,MARK CC
T=2.34,MARK DA
T=2.37,MARK DB
T=2.40,MARK DC
T=2.43,MARK EA
T=2.46,MARK EB
T=2.49,MARK EC
T=2.52,MARK FA
T=2.55,MARK FB
T=2.58,MARK FC
T=2.61,MARK GA
T=2.64,MARK GB
T=2.67,MARK GC
T=2.70,MARK HA
T=2.73,MARK HB
T=2.76,MARK HC
T=2.79,MARK JA
T=2.82,MARK JB
T=2.85,MARK JC
T=2.88,MARK KA
T=2.91,MARK KB
T=2.94,MARK KC
T=2.97,MARK LA
T=3.00,MARK LB
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
T=1.47,MARK AA
T=1.50,MARK AB
T=1.53,MARK AC
T=1.56,MARK BA
T=1.59,MARK BB
T=1.62,MARK BC
T=1.65,MARK CA
T=1.68,MARK CB
T=1.71,MARK CC
T=1.74,MARK DA
T=1.77,MARK DB
T=1.80,MARK DC
T=1.83,MARK EA
T=1.86,MARK EB
T=1.89,MARK EC
T=1.92,MARK FA
T=1.95,MARK FB
T=1.98,MARK FC
T=2.01,MARK GA
T=2.04,MARK GB
T=2.07,MARK GC
T=2.10,MARK HA
T=2.13,MARK HB
T=2.16,MARK HC
T=2.19,MARK JA
T=2.22,MARK JB
T=2.25,MARK JC
T=2.28,MARK KA
T=2.31,MARK KB
T=2.34,MARK KC
T=2.37,MARK LA
T=2.40,MARK LB
T=2.43,MARK LC
T=2.46,MARK MA
T=2.49,MARK MB
T=2.52,MARK MC
T=2.55,MARK NA
T=2.58,MARK NB
41302LCASE SUB-ASSY, DIFFERENTIAL, NO.2
41310BGEAR ASSY, CENTER DIFFERENTIAL PLANETARY
sub41310-48010
41311NBEARING, TAPERED ROLLER (FOR CENTER DIFFERENTIAL CASE)
RH
LH
41311WSCREW
41331BGEAR, CENTER DIFFERENTIAL SIDE
41331CRING, SHAFT SNAP(FOR PINION SHAFT SPACER)
41331LGEAR, CENTER DIFFERENTIAL PLANETARY RING
41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)
41331PWASHER, CONICAL SPRING
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
41337SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
41342CSHAFT, CENTER DIFFERENTIAL PINION
41342PSHAFT, DIFFERENTIAL PINION
41351AWASHER, CENTER DIFFERENTIAL PINION TRUST
NO.1
NO.2
41361BWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
41361DWASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.2
T=0.95,MARK A
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=1.30,MARK H
T=1.35,MARK J
T=1.40,MARK K
41361HWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
41362HWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, LH
T=0.08,MARK MA
T=0.85,MARK MB
T=0.90,MARK MC
T=0.95,MARK MD
T=1.00,MARK ME
T=1.05,MARK MF
T=1.10,MARK MG
T=1.15,MARK MH
T=1.20,MARK MJ
T=1.25,MARK MK
T=1.30,MARK ML
T=1.35,MARK MM
T=1.40,MARK MN
41362JWASHER, DIFFERENTIAL SIDE GEAR THRUST, NO.2, RH
T=0.80,MARK O
T=0.85,MARK 1
T=0.90,MARK 2
T=0.95,MARK 3
T=1.00,MARK 4
T=1.05,MARK 5
T=1.10,MARK 6
T=1.15,MARK 7
T=1.20,MARK 8
T=1.25,MARK 9
T=1.30,MARK A
T=1.35,MARK B
T=1.40,MARK C
41371HSPIDER, DIFFERENTIAL
41375CHOLDER, CENTER DIFFERENTIAL PINION SHAFT
41453DSLEEVE, CENTER DIFFERENTIAL LOCK
41453ERING, O
41453FRING, SHAFT SNAP
9025005028
main90250-05028
36 parts on this diagram · 1 diagram in section
