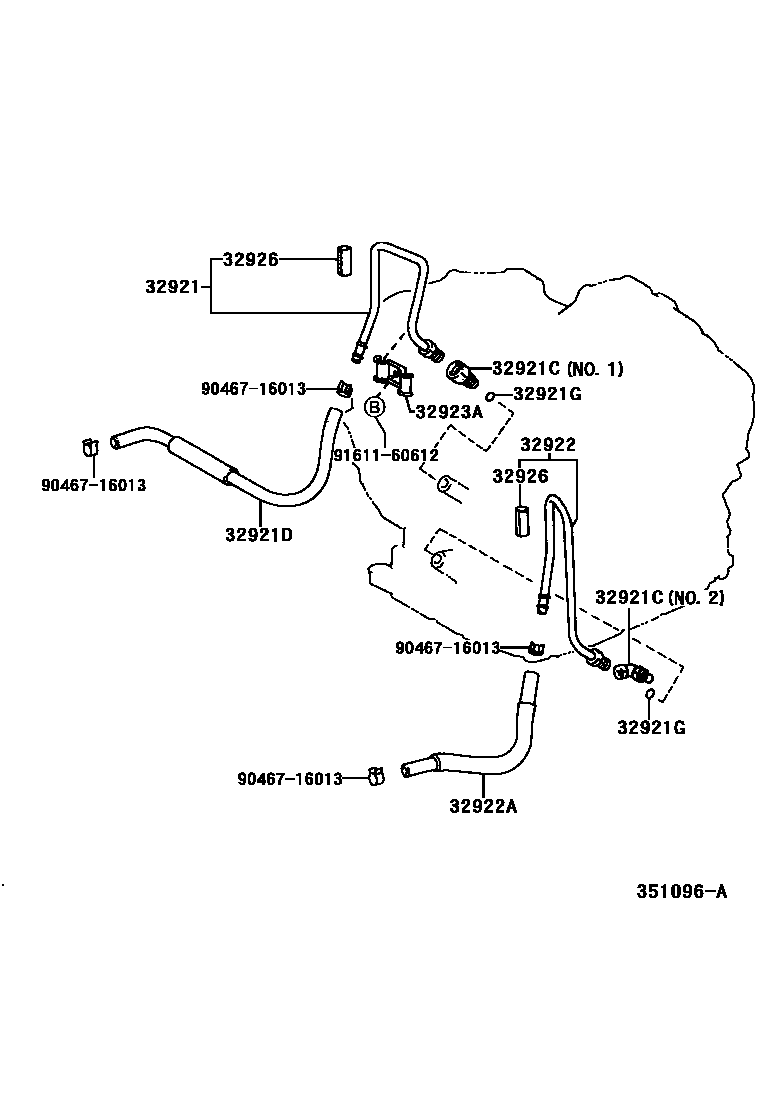

OIL COOLER & TUBE (ATM)

0001 1U140E,U140F 0002 1U140E,U140F 0003 1U140E,U140F,AIR COOLING OIL C0004 1U140E,U140F,AIR COOLING OIL C

32921TUBE, OIL COOLER INLET, NO.1

main32921-48010iMCU1#199801-200012

main32921-48090iMCU1#200012

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iMCU1#199801-199810

NO.1

main90404-16031iMCU1#199810

NO.1

main90407-16010iMCU1#199801

NO.2

32921DHOSE(FOR OIL COOLER INLET)

main90445-17115iMCU1#199801-200012

main90445-17170iMCU1#200012

sub90445-17077

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iMCU1#199801

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-48010iMCU1#199801-200012

main32922-48060iMCU1#200012

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-48010iMCU1#199801-200012

sub32942-50040

main32942-48020iMCU1#200012

sub90445-17137

main90445-17069iMCU1#199801-200012

AIR COOLING OIL COOLER

main90445-17110iMCU1#200012

AIR COOLING OIL COOLER

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12074iMCU1#199801

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iMCU1#199801

L=35,ID=10

9046716013

main90467-16013

9161160612

main91611-60612

10 parts on this diagram · 4 diagrams in section
