TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

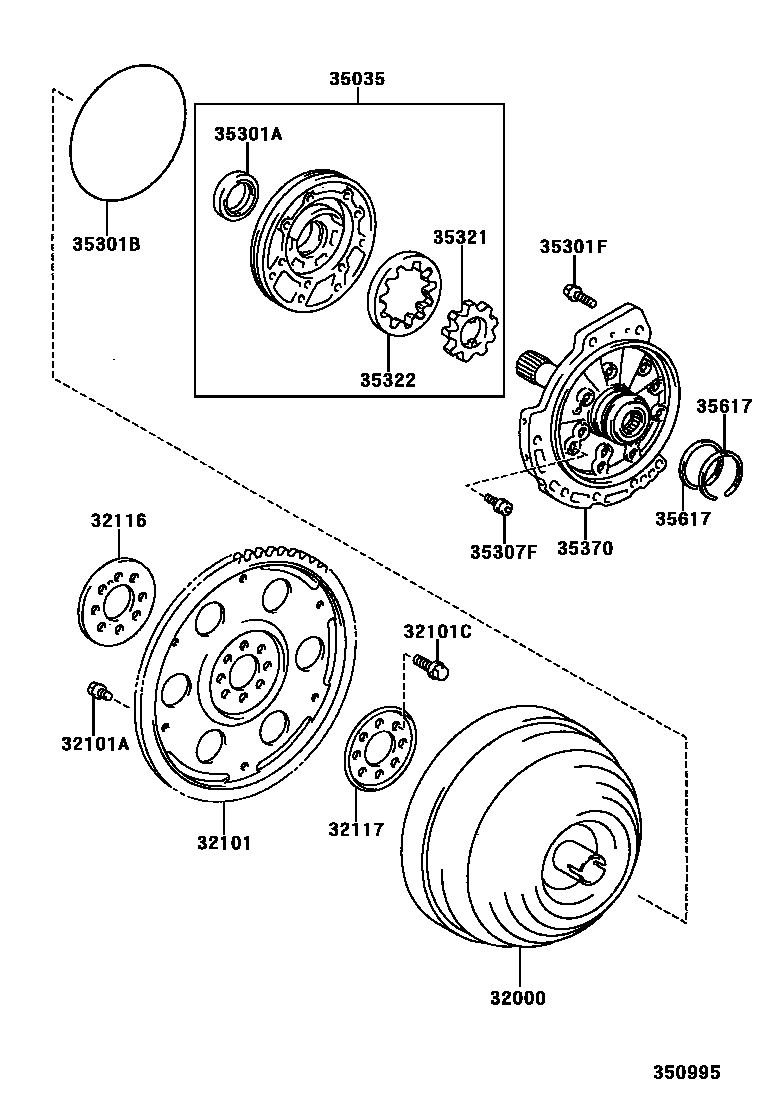

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-41010i199801-199907
sub32000-48011
main32000-48011i199907
main32000-48020i199801
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06010i200201
(L)
sub32101-48010
main32101-33010i200201-200210
(J)
sub32101-48010
main32101-33010i199801-200201
sub32101-48010
main32101-48010i200210
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i199801
*9-1.25PX12.4-7.3,GREEN
main90119-09025i199801
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i199801
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
main32116-32020i199801
32117SPACER, DRIVE PLATE, REAR
main32117-32020i199801
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-21010i199801-200008
sub35035-21H00
main35035-21020i200008
sub35035-28010
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38020i199801-199810
main90311-38064i199810-200206
main90311-38083i200206
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90301-99099i199801
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08050i199801
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
main90148-60027i199801
35321GEAR, FRONT OIL PUMP DRIVE
main35321-21010i199801-200008
T=10.690-10.699
sub35035-21H00
main35321-21020i199801-200008
T=10.700-10.709
sub35035-21H00
main35321-21030i199801-200008
T=10.710-10.720
sub35035-21H00
main35321-21040i199801-200008
T=10.721-10.730
sub35035-21H00
main35321-21050i199801-200008
T=10.731-10.740
sub35035-21H00
main35321-21060i200008
T=10.690-10.699
sub35321-28060
main35321-21070i200008
T=10.700-10.709
sub35321-28070
main35321-21080i200008
T=10.710-10.720
sub35321-28080
main35321-21090i200008
T=10.721-10.730
sub35321-28090
main35321-21100i200008
T=10.731-10.740
sub35321-28100
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-21010i199801-200008
T=10.690-10.699
sub35035-21H00
main35322-21020i199801-200008
T=10.700-10.709
sub35035-21H00
main35322-21030i199801-200008
T=10.710-10.720
sub35035-21H00
main35322-21040i199801-200008
T=10.721-10.730
sub35035-21H00
main35322-21050i199801-200008
T=10.731-10.740
sub35035-21H00
main35322-21060i200008
T=10.690-10.699
sub35322-28060
main35322-21070i200008
T=10.700-10.709
sub35322-28070
main35322-21080i200008
T=10.710-10.720
sub35322-28080
main35322-21090i200008
T=10.721-10.730
sub35322-28090
main35322-21100i200008
T=10.731-10.740
sub35322-28100
35370SHAFT ASSY, STATOR
main35370-21010i199801-200008
sub35035-21H00
main35370-21020i200010
sub35370-28010
main35370-21030i200008-200010
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i199801
