ALTERNATOR

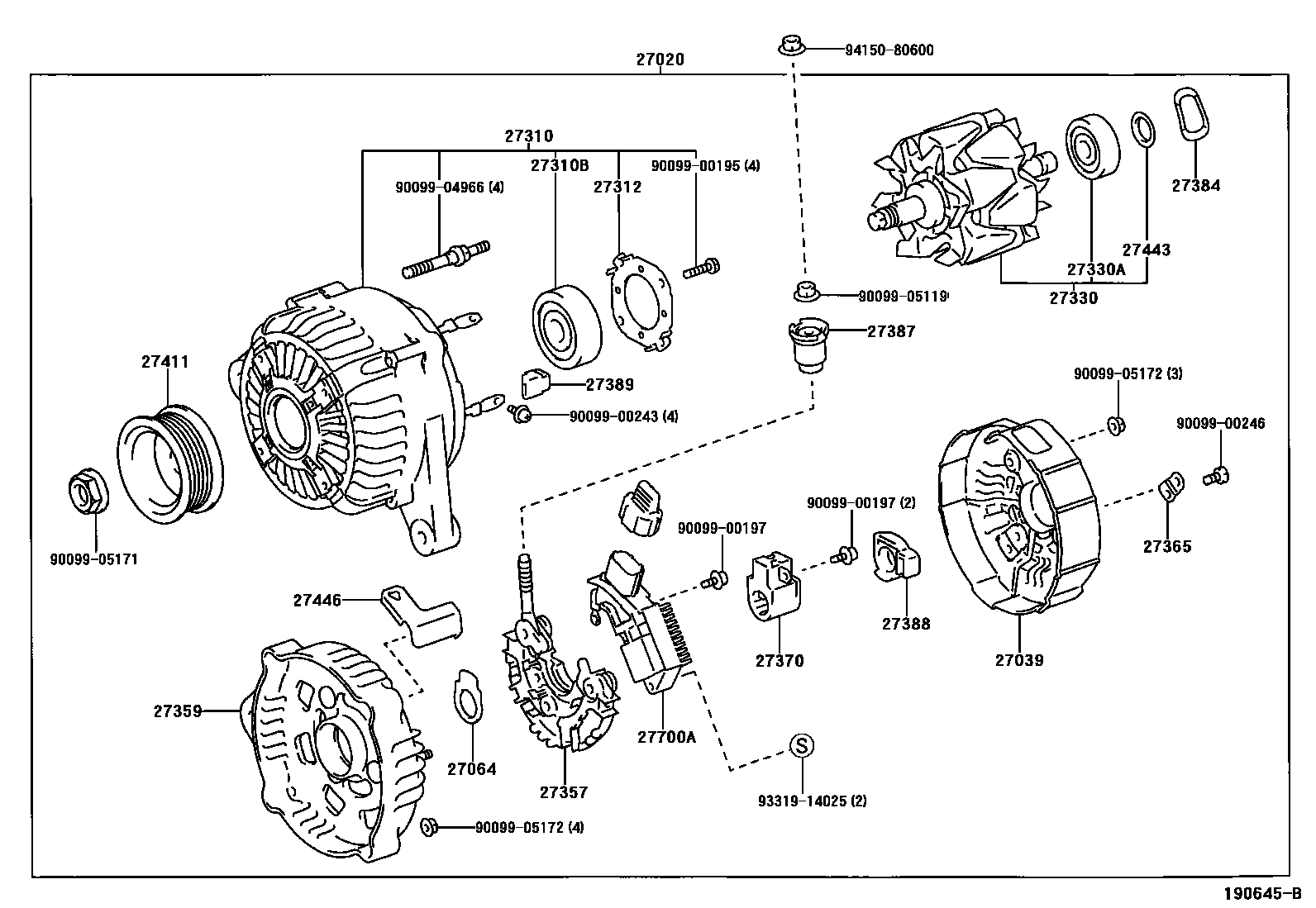

Parts diagram
27020ALTERNATOR ASSY
main27060-20110i199801-199807
12V 120A
main27060-20140i199807
12V 100A
main27060-20190i200007
12V 130A,TOWING PACKAGE
sub27060-20180
27039COVER, ALTERNATOR REAR END
main27039-20060i199801-200104
12V 100A
main27039-20130i200007
12V 130A
main27039-20160i200104
12V 100A
27064SEAL, ALTERNATOR PLATE
main27064-42010i199801
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-20080i199801
12V 100A
main27310-20130i200007
12V 130A
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
main90099-10142i200007
12V 130A
sub90099-10223
main90099-10192i199801
12V 100A
27312PLATE, RETAINER
main27312-42010i199801
12V 100A
main27312-72100i200007
12V 130A
27330ROTOR ASSY, ALTERNATOR
main27330-20070i199801
12V 100A
main27330-20130i200007
12V 130A
sub27330-33090
27330ABEARING(FOR ALTERNATOR ROTOR)
main90099-10140i199801
27357HOLDER, ALTERNATOR, W/RECTIFIER
main27357-17080i199801-199807
main27357-20060i199807
12V 100A
27359FRAME, ALTERNATOR RECTIFIER END
main27359-20080i199801
27365PLATE, TERMINAL
main27365-55080i199801
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-20130i200007
12V 130A
main27370-75060i199801
12V 100A
27384WASHER
main27384-50030i199801
27387INSULATOR, TERMINAL
main27387-20130i200007
12V 130A
main27387-42021i199801
12V 100A
27388COVER, ALTERNATOR BRUSH
main27388-42010i199801
27389INSULATOR, TERMINAL
main27389-42010i199801
27411PULLEY, ALTERNATOR
main27411-20020i199801-199807
main27411-46080i199807
27443COVER, ALTERNATOR BEARING
main27443-63020i199801
27446CLIP, ALTERNATOR CORD
main27446-20050i199801
27700AREGULATOR ASSY, GENERATOR
main27700-20050i199801
12V 100A
9009900195
main90099-00195
9009900197
main90099-00197
9009900243
main90099-00243
9009900246
main90099-00246
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9331914025
main93319-14025
9415080600
main94150-80600

30 parts on this diagram · 2 diagrams in section
