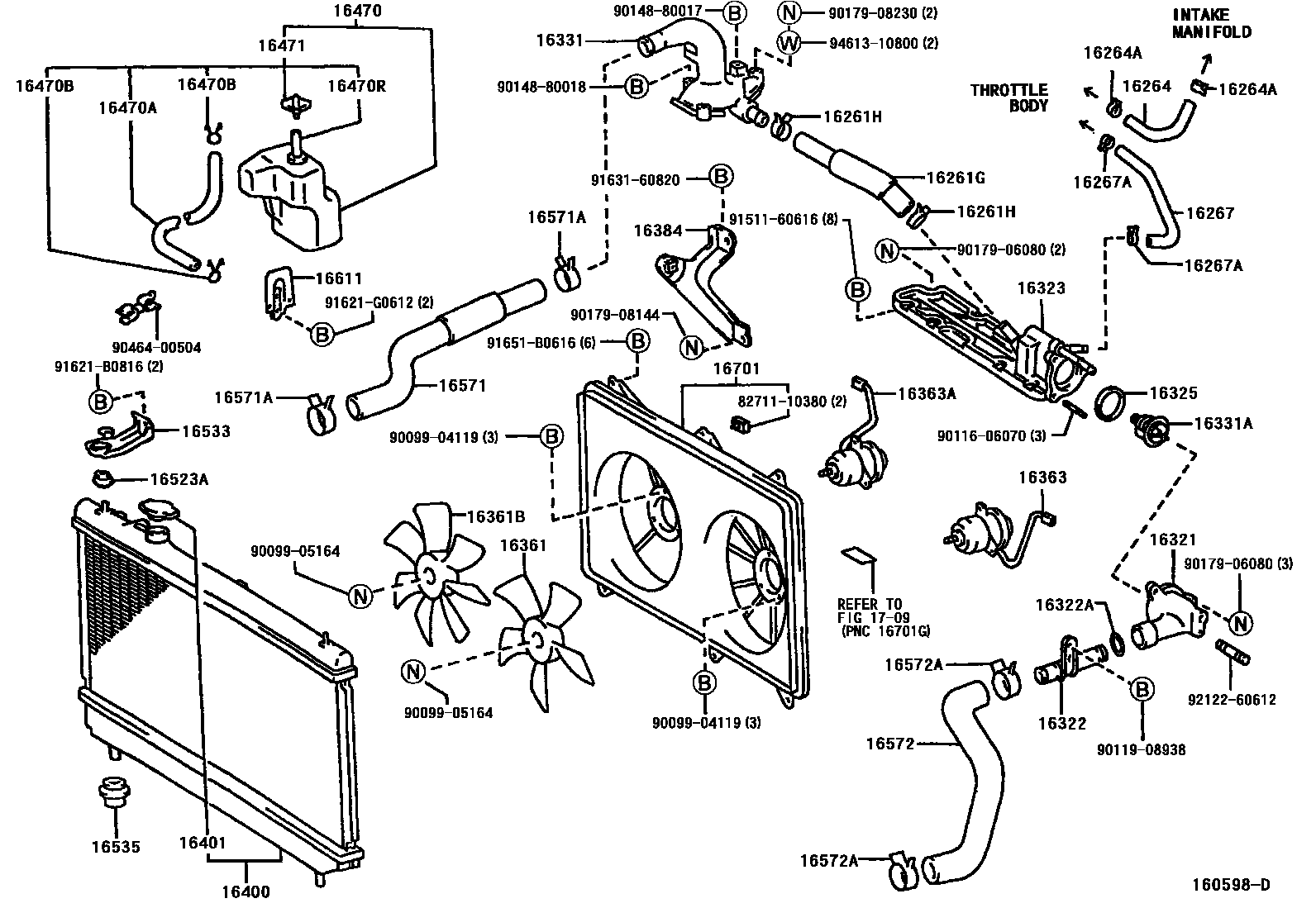

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
(L)
(J)
16264HOSE, WATER BY-PASS, NO.2
(J)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
(J)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16321INLET, WATER
(J)
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
(J)
ENGINE NO.=0XXXXXX-4XXXXXX
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
ENGINE NO.=5XXXXXX-9XXXXXX
ENGINE NO.=0XXXXXX-4XXXXXX
16331ATHERMOSTAT
16361FAN
16361BFAN, NO.2
16384BRACKET, FAN BELT ADJUSTING BAR
16400RADIATOR ASSY
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
*H,L=180
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
1709
8271110380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10380
9009904119
main90099-04119
9009905164
main90099-05164
9011606070
main90116-06070
9011908938
main90119-08938
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908144
main90179-08144
9017908230
main90179-08230
9046400504
main90464-00504
9151160616
main91511-60616
91621B0816
main91621-B0816
91621G0612
main91621-G0612
9163160820
main91631-60820
91651B0616
main91651-B0616
9212260612
main92122-60612
9461310800
main94613-10800
53 parts on this diagram · 3 diagrams in section
