ENGINE OVERHAUL GASKET KIT

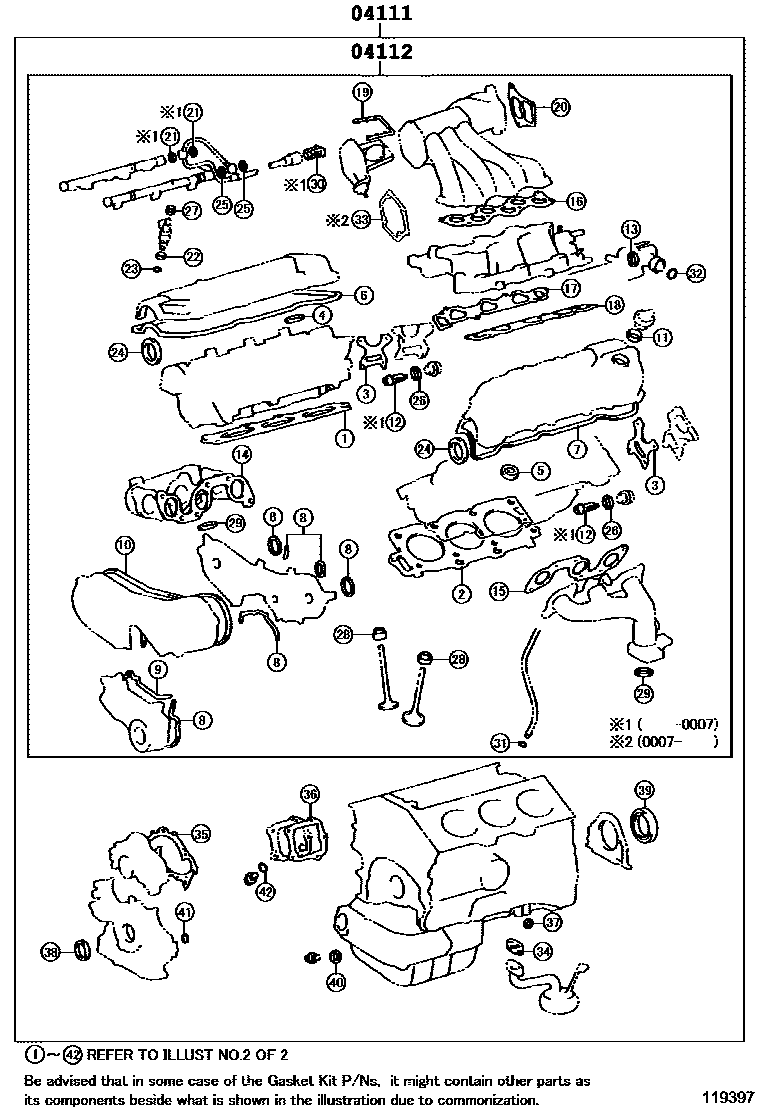

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-20050i199801-199908
main04111-20100i199908-200007
sub04111-20101
main04111-20160i200007
sub04111-20161
04112GASKET KIT, ENGINE VALVE GRIND
main04112-20040i199801-199908
main04112-20090i199908-200007
sub04112-20091
main04112-20150i200007
sub04112-20151

2 parts on this diagram · 2 diagrams in section
