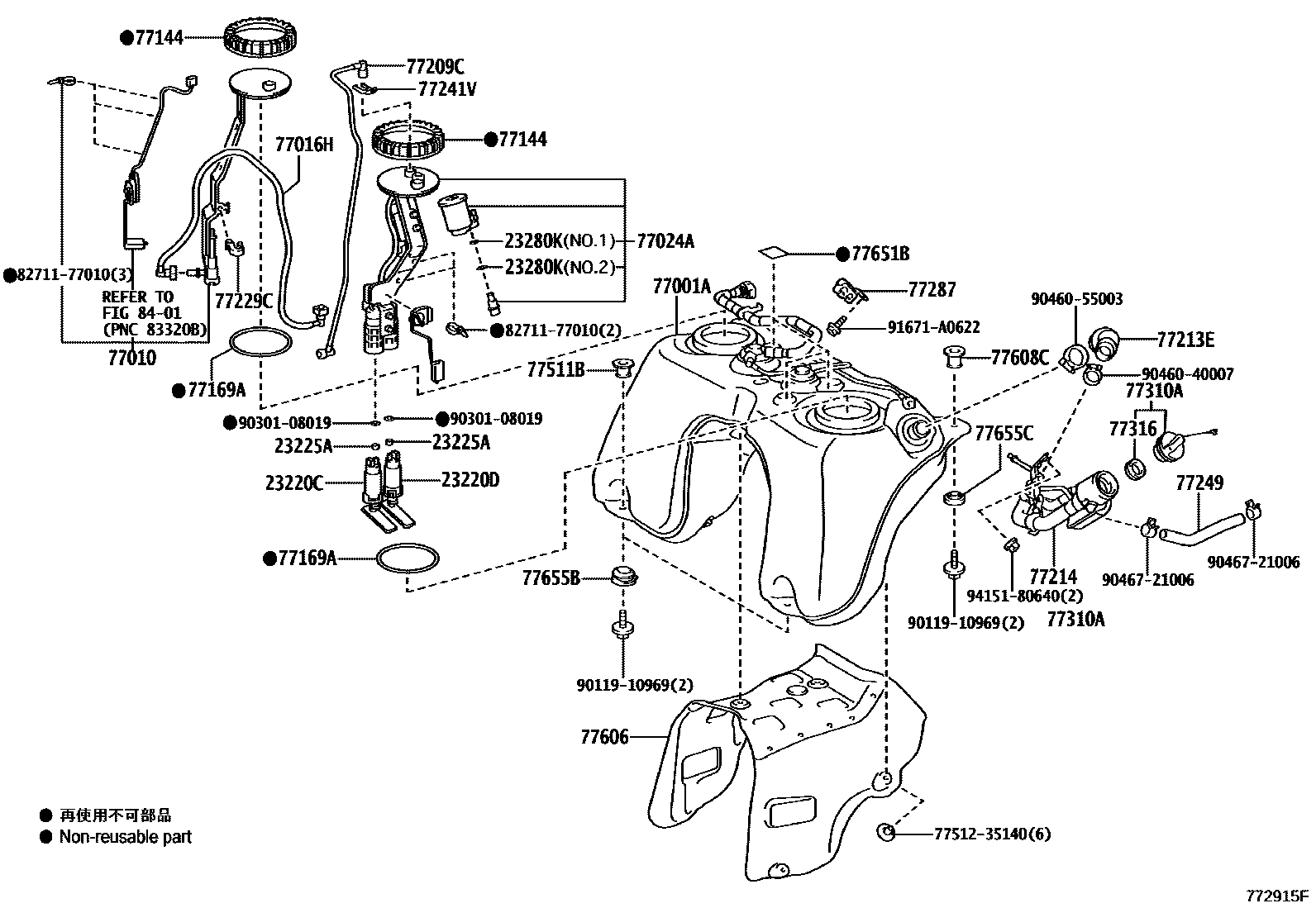

FUEL TANK & TUBE
23220CPUMP ASSY, FUEL W/FILTER NO.1
23220DPUMP ASSY, FUEL W/FILTER NO.2
23225ASPACER, FUEL PUMP
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.3
NO.4
NO.2
77001ATANK SUB-ASSY, FUEL
77010TUBE ASSY, FUEL TANK VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77214PIPE, FUEL TANK FILLER
77229CCLAMP, BREATHER TUBE
77241TUBE, FUEL MAIN, NO.1
77241VCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
77287SUPPORT, TANK TO CANISTER TUBE, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511BBRACKET, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
77651BCUSHION, FUEL TANK
77655BCUSHION, FUEL TANK
77655CCUSHION, FUEL TANK
8401
7751235140BRACKET, FUEL TANK, REAR
main77512-35140
8271177010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-77010
9011910969
main90119-10969
9030108019
main90301-08019
9046040007
main90460-40007
9046055003
main90460-55003
9046721006
main90467-21006
91671A0622
main91671-A0622
9415180640
main94151-80640
36 parts on this diagram · 3 diagrams in section
