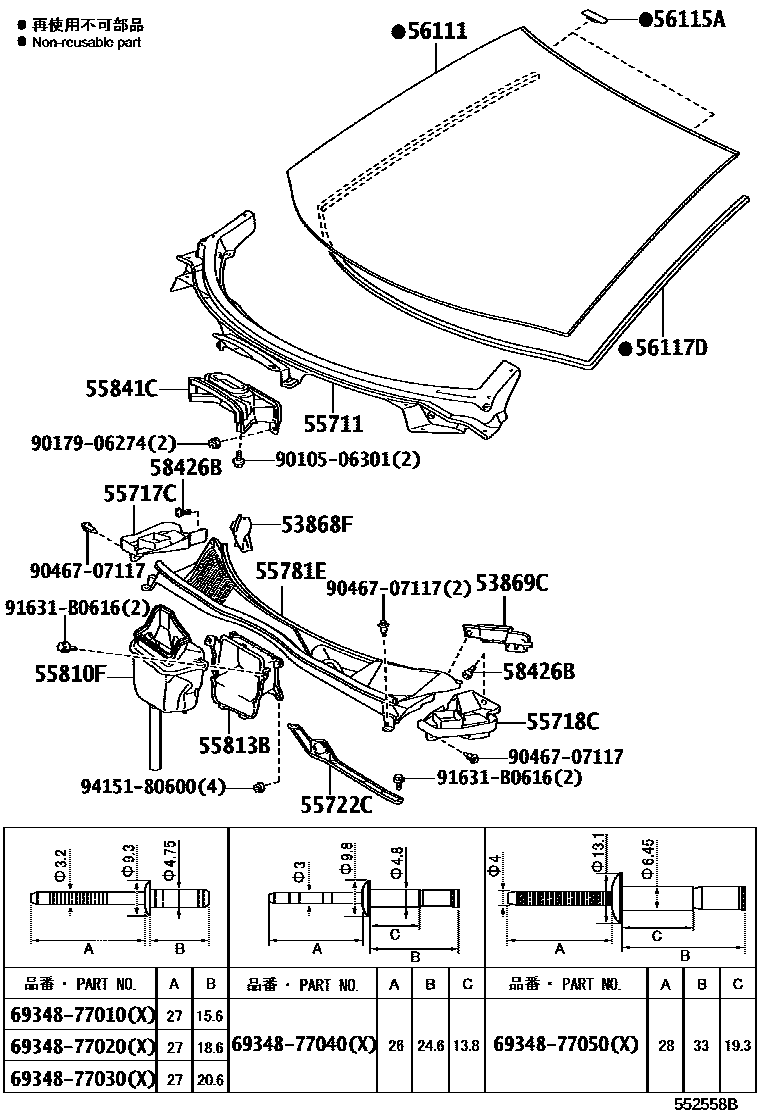

COWL PANEL & WINDSHIELD GLASS
53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
55711PANEL, COWL TOP, OUTER
55717CPROTECTOR, FRONT, LOWER RH
55718CPROTECTOR, FRONT, LOWER LH
55722CBRACE, COWL TOP TO COWL, INNER
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55810FVENTILATOR ASSY, FRONT
55813BDUCT, SIDE VENTILATOR
55841CDUCT, FRONT REGISTER, UPPER
56111GLASS, WINDSHIELD
*IRCL,T=4.76,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56117DDAM, WINDSHIELD GLASS ADHESIVE
*D,L=2883
58426BPROTECTOR, ENGINE SUB COVER
6934877010JOINT, ADJUSTING
main69348-77010
6934877020JOINT, ADJUSTING
main69348-77020
6934877030JOINT, ADJUSTING
main69348-77030
6934877040JOINT, ADJUSTING
main69348-77040
6934877050JOINT, ADJUSTING
main69348-77050
9010506301
main90105-06301
9017906274
main90179-06274
9046707117
main90467-07117
91631B0616
main91631-B0616
9415180600
main94151-80600
24 parts on this diagram · 1 diagram in section
