FLOOR SIDE MEMBER

51403BBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-77010iLFA10201012

51681DBRACKET, FLEXIBLE HOSE, RH

main51681-77010iLFA10201012-201212

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-77010iLFA10201012-201212

5202

53787DGUSSET, FRONT FENDER APRON, LOWER RH

main53787-77010iLFA10201012

53788BGUSSET, FRONT FENDER APRON, LOWER LH

main53788-77010iLFA10201012

5701

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-77010iLFA10201012

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-77010iLFA10201012

57110MEMBER ASSY, FRONT SIDE, RH

main57110-77010iLFA10201012-201212

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-77010iLFA10201012-201212

57120MEMBER ASSY, FRONT SIDE, LH

main57120-77010iLFA10201012-201212

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-77010iLFA10201012-201212

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-77010iLFA10201012-201212

57425CPLATE, REAR STEP PANEL, NO.1

main57425-77020iLFA10201012

57426CPLATE, REAR STEP PANEL, NO.2

main57426-77020iLFA10201012

57427EREINFORCEMENT, FRONT FLOOR TO BRACE

main57427-77020iLFA10201012

57438EPLATE, REAR STEP SIDE, LH

main57438-77010iLFA10201012

57503ABRACE SUB-ASSY, CENTER FLOOR CROSSMEMBER

main57503-77020iLFA10201012

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-77010iLFA10201012-201212

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-77010iLFA10201012-201212

57631EREINFORCEMENT, REAR FLOOR SIDE MEMBER, NO.1

main57631-77010iLFA10201012-201212

57633EXTENSION, REAR FLOOR SIDE MEMBER

main57633-77010iLFA10201012-201212

57683EREINFORCEMENT, REAR ABSORBER MOUNTING, NO.3

main57683-77020iLFA10201012

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-77020iLFA10201012

57755BPLATE, REAR SUSPENSION MEMBER MOUNTING, FR

main57755-77020iLFA10201012

58312FPANEL, REAR FLOOR, REAR

main58312-77010iLFA10201012

61149CREINFORCEMENT, FRONT DOOR CHECK

main61149-77020iLFA10201012

61165DBRACKET, INSTRUMENT PANEL TO COWL SIDE

main61165-77020iLFA10201012

61413BPANEL, FRONT STEP, RH

main61413-77010iLFA10201012

61414BPANEL, FRONT STEP, LH

main61414-77010iLFA10201012

61415DPANEL, FRONT STEP UNDER, RH

main61415-77010iLFA10201012

61416DPANEL, FRONT STEP UNDER, LH

main61416-77010iLFA10201012

61417CPANEL, FRONT STEP, INNER RH

main61417-77010iLFA10201012

61671HSUPPORT, REAR SUSPENSION SPRING, RH

main61671-77020iLFA10201012

61672DSUPPORT, REAR SUSPENSION SPRING, LH

main61672-77020iLFA10201012

64189GBOLT, REAR BODY MOUNTING

main64189-77010iLFA10201012

5221777050BOLT, BODY MOUNTING

main52217-77050

5842677030NUT, BATTERY SERVICE HOLE COVER

main58426-77030

6934877010JOINT, ADJUSTING

main69348-77010

6934877020JOINT, ADJUSTING

main69348-77020

6934877030JOINT, ADJUSTING

main69348-77030

6934877040JOINT, ADJUSTING

main69348-77040

6934877050JOINT, ADJUSTING

main69348-77050

9033915002

main90339-15002

91551A0620

main91551-A0620

91552K1025

main91552-K1025

91552K1035

main91552-K1035

91552L1040

main91552-L1040

91552L1050

main91552-L1050

91672L1030

main91672-L1030

91672L1050

main91672-L1050

91672L1450

main91672-L1450

93249A5010

main93249-A5010

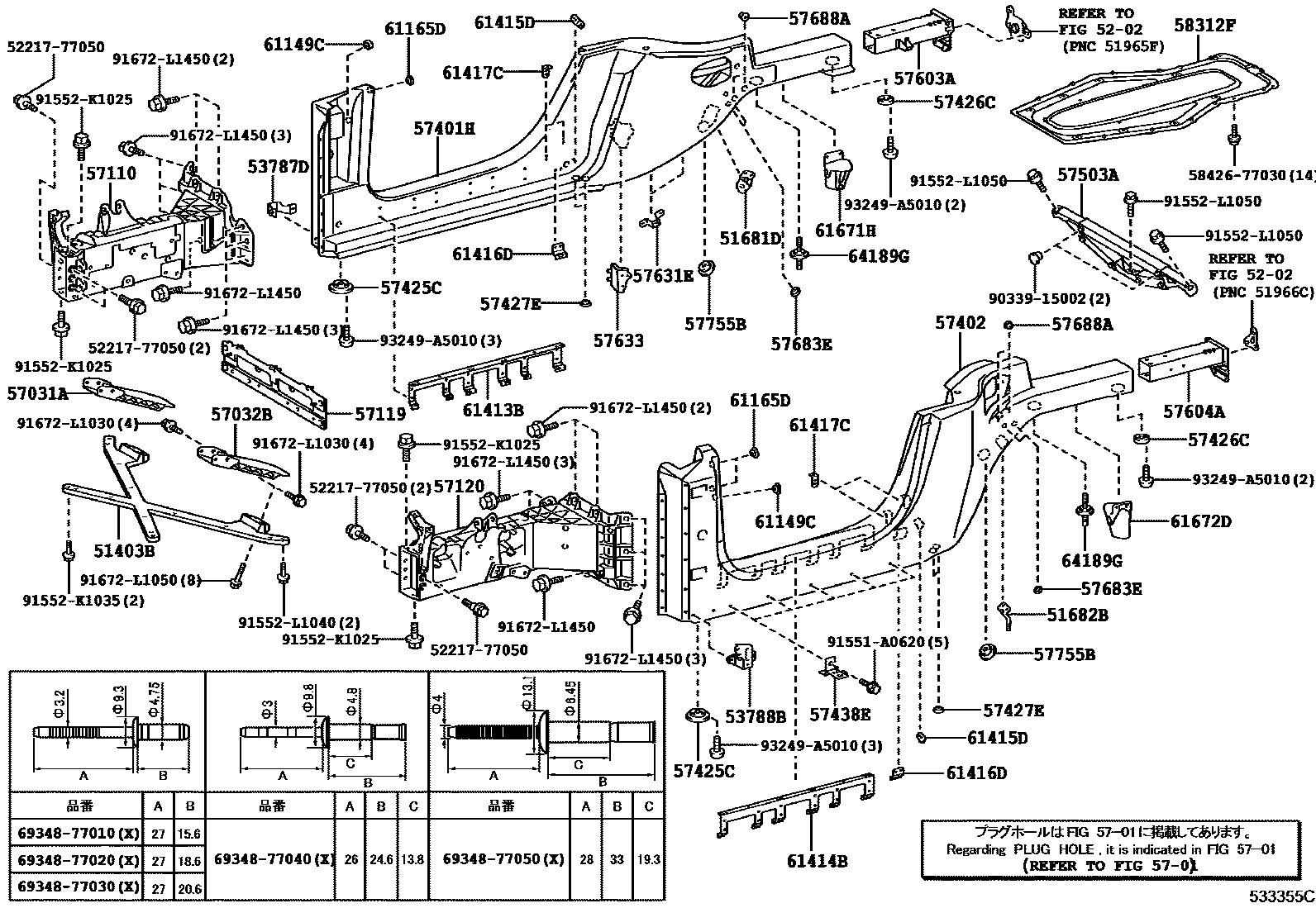

54 parts on this diagram · 1 diagram in section
