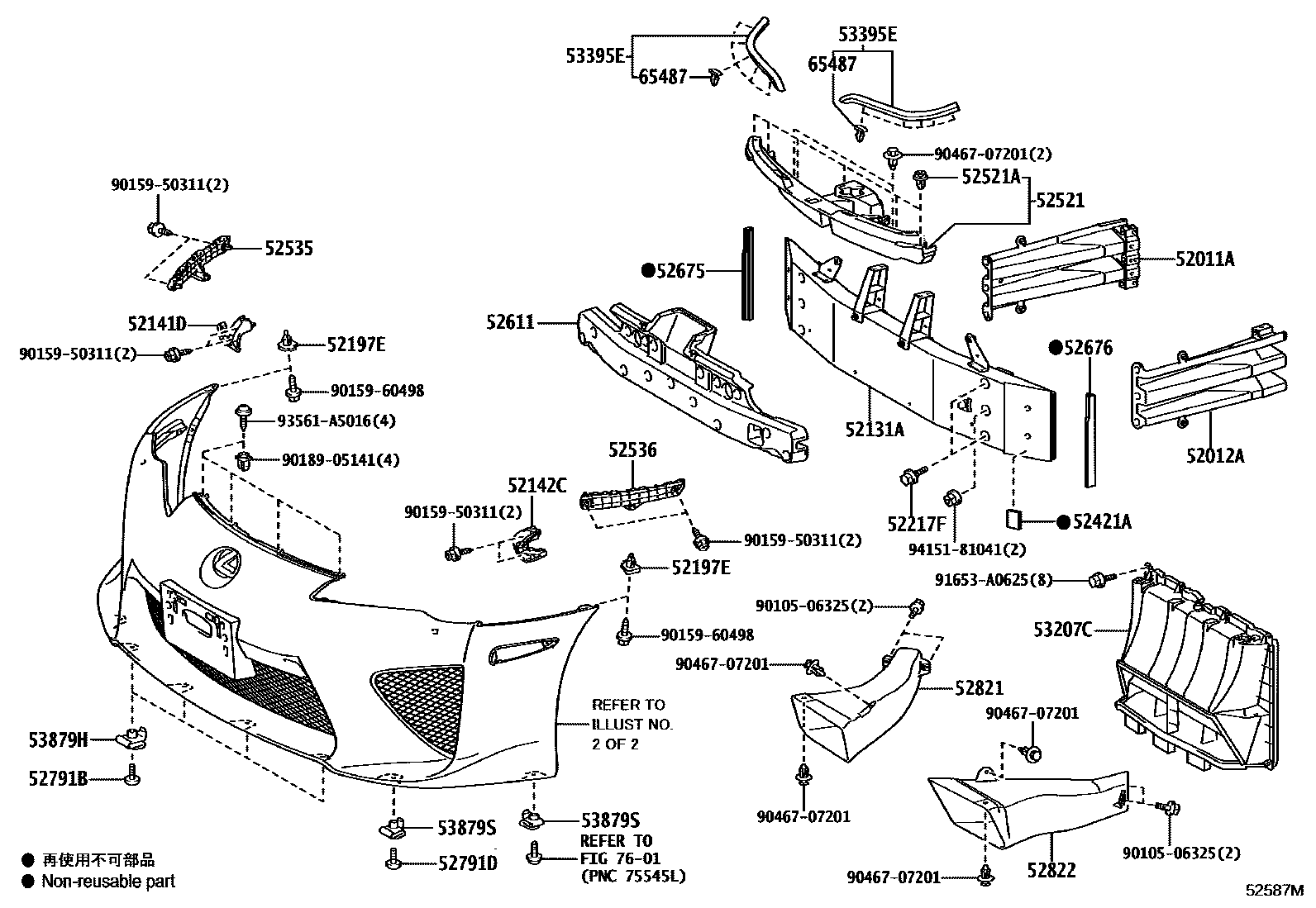

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52131AREINFORCEMENT, FRONT BUMPER
52141DSTAY, FRONT BUMPER, RH
52142CSTAY, FRONT BUMPER, LH
52197EBRACKET, FRONT BUMPER SEAL
52217FBOLT, BODY MOUNTING
52421APAD, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52611ABSORBER, FRONT BUMPER ENERGY
52675SUPPORT, FRONT BUMPER LOWER SIDE, RH
52676SUPPORT, FRONT BUMPER LOWER SIDE, LH
52791BBOLT, BUMPER MOULDING SET, NO.1
52791DBOLT, BUMPER MOULDING SET, NO.1
52821DUCT, AIR INTAKE, RH
52822DUCT, AIR INTAKE, LH
53207CDUCT SUB-ASSY, COOL AIR INTAKE
53395ESEAL, HOOD TO FRONT END PANEL
53879HRETAINER, FRONT FENDER LINER
53879SRETAINER, FRONT FENDER LINER
65487CLIP, CORNER PROTECTOR
7601
9010506325
main90105-06325
9015950311
main90159-50311
9015960498
main90159-60498
9018905141
main90189-05141
9046707201
main90467-07201
91653A0625
main91653-A0625
93561A5016
main93561-A5016
9415181041
main94151-81041
33 parts on this diagram · 2 diagrams in section
