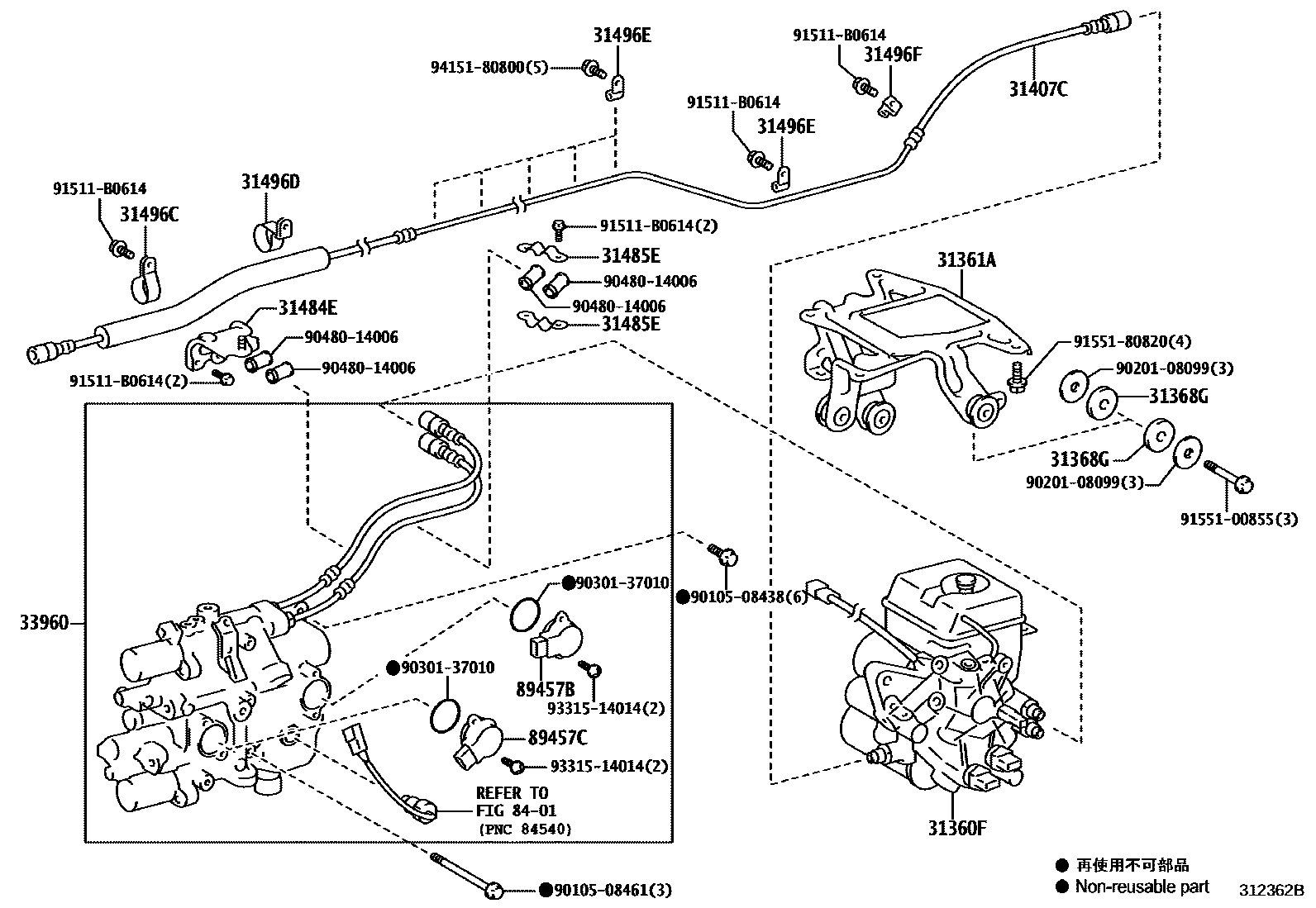

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE
31360FPUMP ASSY, SEQUENTIAL TRANSMISSION
31361ABRACKET, SEQUENTIAL TRANSMISSION PUMP
31368GSEAT, SEQUENTIAL TRANSMISSION PUMP CUSHION
31407CTUBE SUB-ASSY, SEQUENTIAL TRANSMISSION CLUTCH
31484EBRACKET, FLEXIBLE HOSE NO.1
31485EBRACKET, FLEXIBLE HOSE, NO.2
31496CCLAMP, CLUTCH TUBE
31496DCLAMP, CLUTCH TUBE, NO.2
31496ECLAMP, CLUTCH TUBE, NO.3
31496FCLAMP, CLUTCH TUBE, NO.4
33960ACTUATOR ASSY, SEQUENTIAL TRANSMISSION
8401
89457BSTROKE SENSOR, SHIFT
89457CSTROKE SENSOR, SELECT
9010508438
main90105-08438
9010508461
main90105-08461
9020108099
main90201-08099
9030137010
main90301-37010
9048014006
main90480-14006
91511B0614
main91511-B0614
9155100855
main91551-00855
9155180820
main91551-80820
9331514014
main93315-14014
9415180800
main94151-80800
24 parts on this diagram · 1 diagram in section
