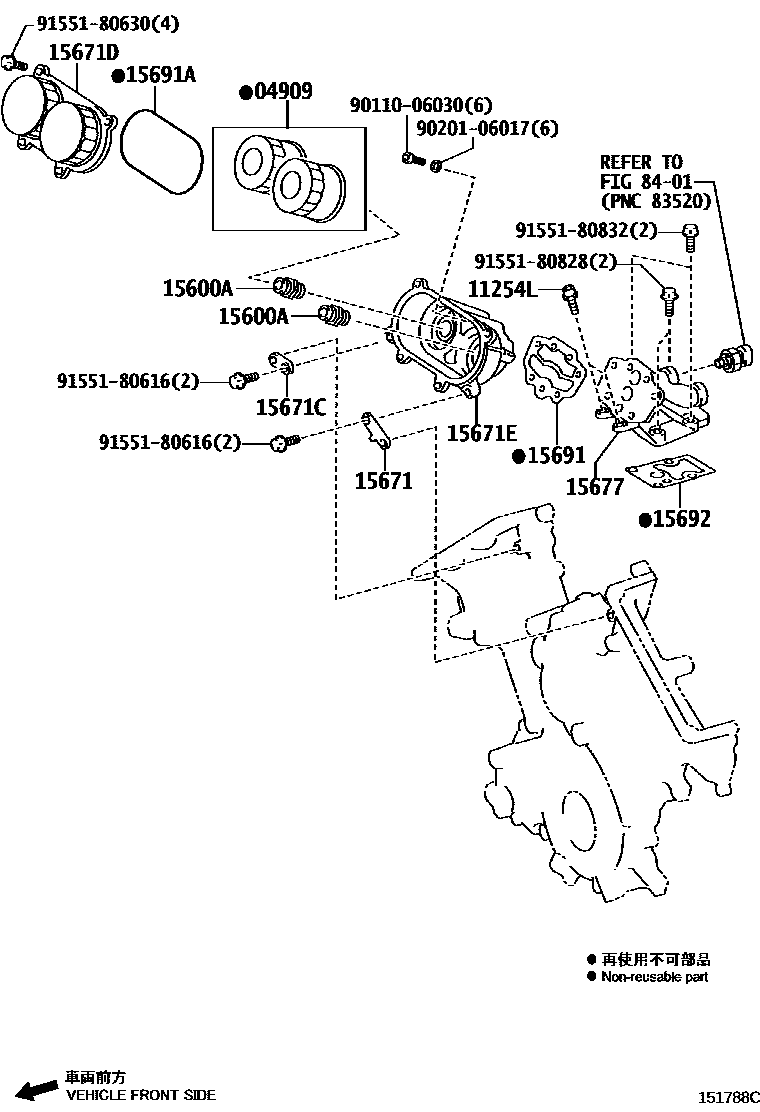

OIL FILTER

04909FILTER KIT, OIL

main04909-45010iLFA10201012-201212

11254LBOLT, V-BANK COVER

main11254-45050×2i1LRGUE..LFA10201012

15600AUNION(FOR OIL FILTER)

main90404-19002×2i1LRGUE..LFA10201012

15671BRACKET, OIL FILTER

main15671-45010i1LRGUE..LFA10201012

15671CBRACKET, OIL FILTER, NO.2

main15671-45020i1LRGUE..LFA10201012

15671DBRACKET, OIL FILTER, NO.3

main15671-45060i1LRGUE..LFA10201012

main15671-45080i1LRGUE..LFA10201201

NURBURGRING PACKAGE

15671EBRACKET, OIL FILTER, NO.4

main15671-45070i1LRGUE..LFA10201012

15677BRACKET, OIL FILTER

main15677-45010i1LRGUE..LFA10201012

15691GASKET, OIL FILTER

main15691-45010i1LRGUE..LFA10201012

15691AGASKET, OIL FILTER, NO.2

main15691-45040i1LRGUE..LFA10201012

15692GASKET, OIL FILTER BRACKET

main15692-45010i1LRGUE..LFA10201012

8401

9011006030

main90110-06030

9020106017

main90201-06017

9155180616

main91551-80616

9155180630

main91551-80630

9155180828

main91551-80828

9155180832

main91551-80832

18 parts on this diagram · 1 diagram in section
