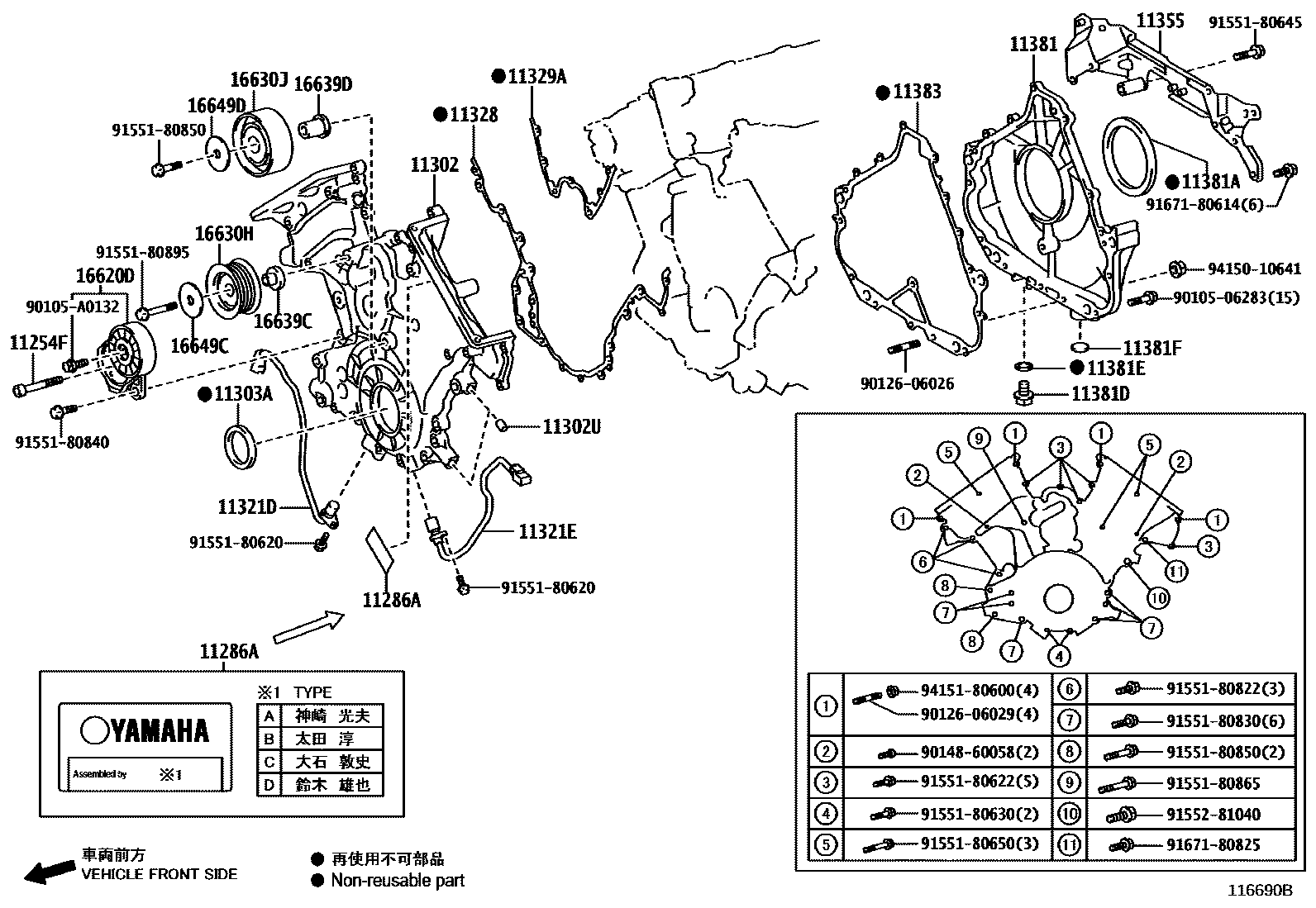

TIMING GEAR COVER & REAR END PLATE
11254FBOLT, V-BANK COVER
11286APLATE, ENGINE SPECIFICATION
TYPE A
TYPE B
TYPE C
TYPE D
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
11302UPIN, RING
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
11321DSENSOR, CRANK POSITION, NO.1
11321ESENSOR, CRANK POSITION, NO.2
11328GASKET, TIMING GEAR OR CHAIN COVER
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11381DPLUG, STRAIGHT SCREW(FOR OIL SEAL RETAINER)
11381EGASKET(FOR OIL SEAL RETAINER STRAIGHT SCREW PLUG)
11381FTIGHT PLUG(FOR OIL SEAL RETAINER)
11383GASKET, ENGINE REAR OIL SEAL RETAINER
16620DTENSIONER ASSY, V-RIBBED BELT
16630HPULLEY ASSY, IDLER
16630JPULLEY ASSY, IDLER, NO.2
16639CSPACER, IDLER PULLEY NO.1
16639DSPACER, IDLER PULLEY NO.2
16649CPLATE, IDLER PULLEY COVER
16649DPLATE, IDLER PULLEY COVER, NO.2
9010506283
main90105-06283
90105A0132
main90105-A0132
9012606026
main90126-06026
9012606029
main90126-06029
9014860058
main90148-60058
9155180620
main91551-80620
9155180622
main91551-80622
9155180630
main91551-80630
9155180645
main91551-80645
9155180650
main91551-80650
9155180822
main91551-80822
9155180830
main91551-80830
9155180840
main91551-80840
9155180850
main91551-80850
9155180865
main91551-80865
9155180895
main91551-80895
9155281040
main91552-81040
9167180614
main91671-80614
9167180825
main91671-80825
9415010641
main94150-10641
9415180600
main94151-80600
44 parts on this diagram · 1 diagram in section
