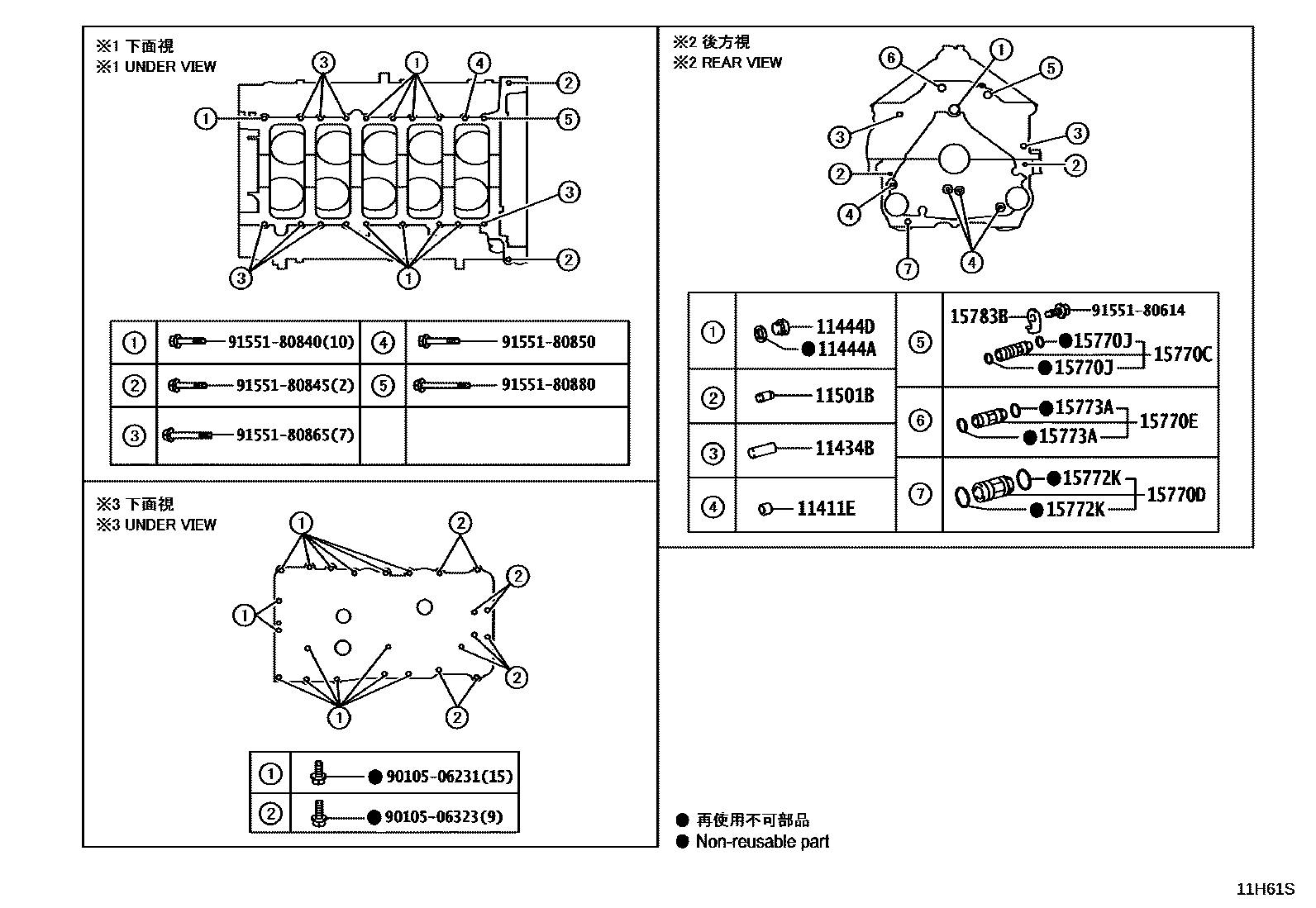

CYLINDER BLOCK

0001 1 0002 1

11411EPIN, RING(FOR CYLINDER BLOCK NO.5)

main90253-11021i1LRGUE..LFA10201012

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10030i1LRGUE..LFA10201012

L=36,OD=10

11444PLUG, HOLE

main11444-45010i1LRGUE..LFA10201012

11444ARING, O

main96721-24014i1LRGUE..LFA10201012

sub96743-24014

11444DPLUG, HOLE

main11444-45020i1LRGUE..LFA10201012

11501BPIN, STRAIGHT(FOR CRANKSHAFT BEARING CAP REAR)

main90250-06003i1LRGUE..LFA10201012

15770CPIPE ASSY, OIL, NO.1

main15770-45010i1LRGUE..LFA10201012

15770DPIPE ASSY, OIL, NO.2

main15770-45020i1LRGUE..LFA10201012

15770EPIPE ASSY, OIL, NO.3

main15770-45030i1LRGUE..LFA10201012

15770JRING, O(FOR OIL PIPE NO.2)

main96721-24010i1LRGUE..LFA10201012

15772KRING, O(FOR OIL PIPE NO.2)

main96721-24018i1LRGUE..LFA10201012

15773ARING, O(FOR OIL PIPE NO.3)

main96721-24010i1LRGUE..LFA10201012

15783BBRACKET, OIL PIPE CLAMP

main15783-45010i1LRGUE..LFA10201012

9010506231

main90105-06231

9010506323

main90105-06323

9155180614

main91551-80614

9155180840

main91551-80840

9155180845

main91551-80845

9155180850

main91551-80850

9155180865

main91551-80865

9155180880

main91551-80880

21 parts on this diagram · 2 diagrams in section
