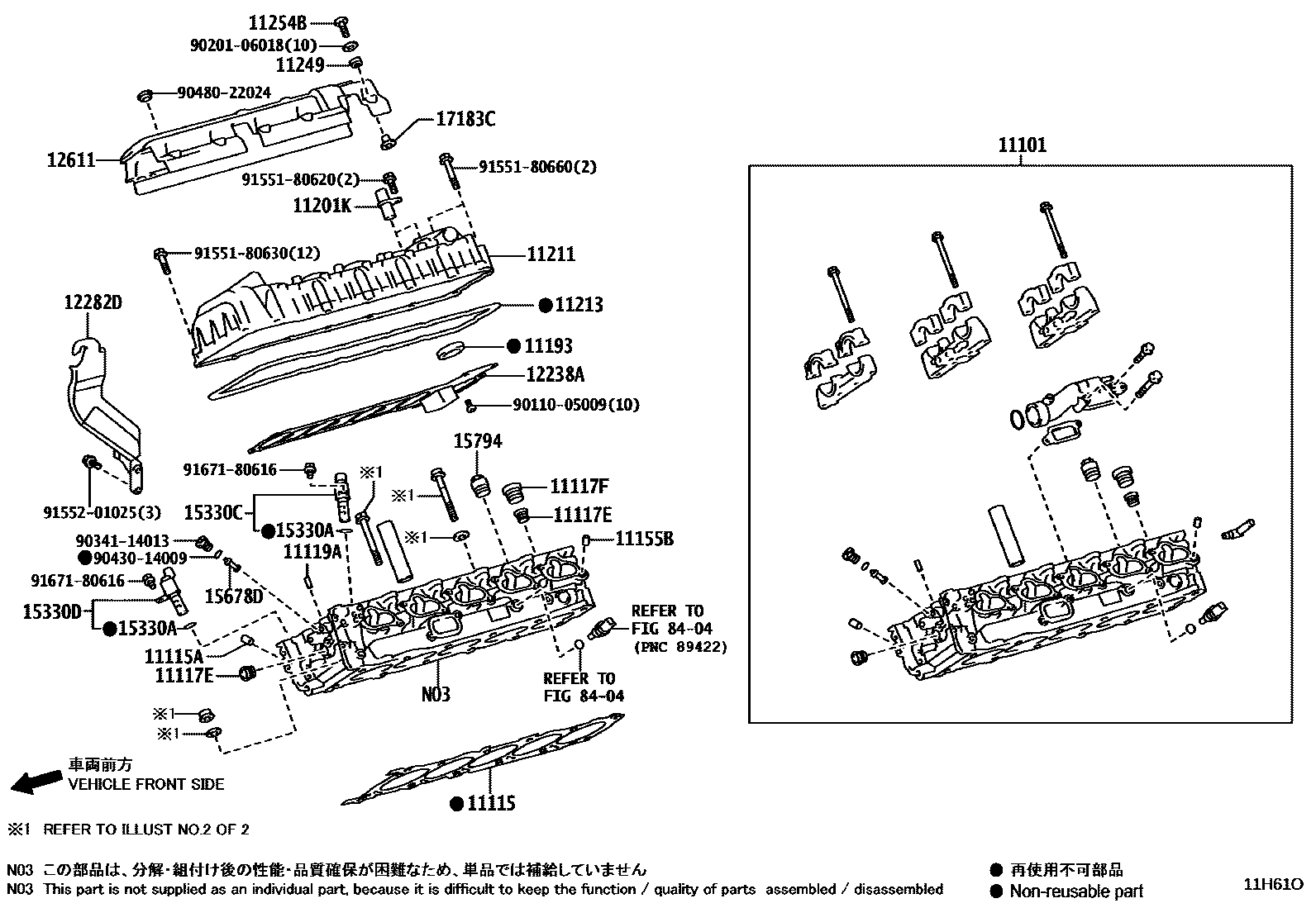

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11119APIN, STRAIGHT, NO.1
L=11.8,OD=4.0
11155BPIN, RING
11193GASKET, SPARK PLUG TUBE
11201KSENSOR, CAM POSITION, RH
11211COVER, CYLINDER HEAD, RH
11213GASKET, CYLINDER HEAD COVER
11249GROMMET, CYLINDER HEAD COVER
11254BBOLT, V-BANK COVER
12238APLATE, VENTILATION BAFFLE
12282DHANGER, ENGINE, NO.2
12611COVER, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15330CVALVE ASSY, CAM TIMING OIL CONTROL, INTAKE RH
15330DVALVE ASSY, CAM TIMING OIL CONTROL, EXHAUST RH
15678DFILTER, OIL CONTROL VALVE, RH
15794NOZZLE, CYLINDER HEAD OIL
17183CCOLLAR, ENGINE COVER
8404
9011005009
main90110-05009
9020106018
main90201-06018
9034114013
main90341-14013
9043014009
main90430-14009
9048022024
main90480-22024
9155180620
main91551-80620
9155180630
main91551-80630
9155180660
main91551-80660
9155201025
main91552-01025
9167180616
main91671-80616
33 parts on this diagram · 3 diagrams in section
