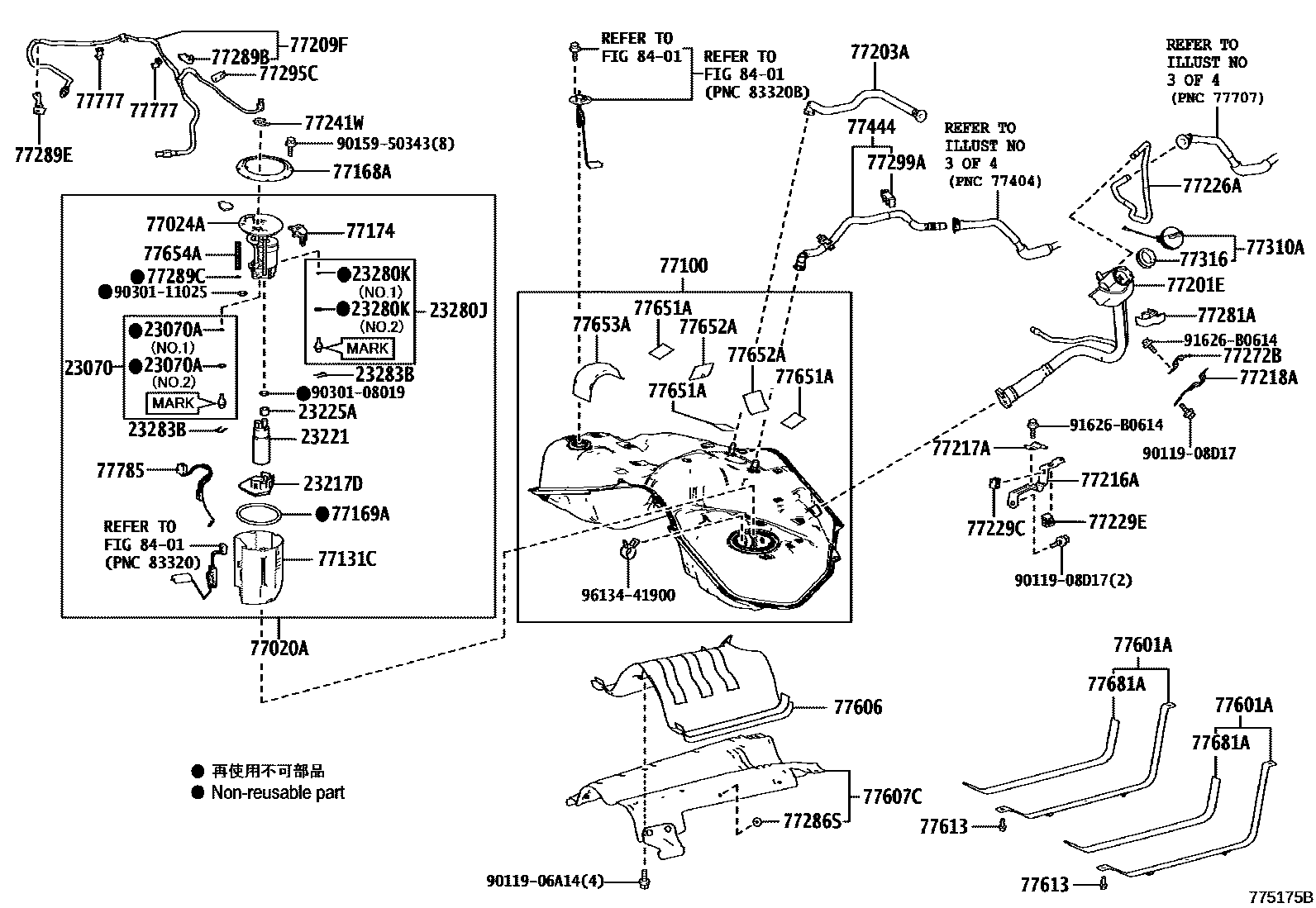

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77203ATUBE SUB-ASSY, FUEL SUCTION
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77229ECLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77272BSUPPORT, BREATHER TUBE, NO.1
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77286SCUSHION, FUEL TANK PROTECTOR
77289BCLAMP, FUEL TUBE, NO.3
77289CCLAMP, FUEL TUBE, NO.4
77289ECLAMP, FUEL TANK, NO.1
77295CGROMMET, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77444HOSE, FUEL TANK VENT
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77777BRACKET, FUEL TUBE CLAMP
77785HARNESS, FUEL PUMP
8401
9011906A14
main90119-06A14
9011908D17
main90119-08D17
9015950343
main90159-50343
9030108019
main90301-08019
9030111025
main90301-11025
91626B0614
main91626-B0614
9613441900
main96134-41900
56 parts on this diagram · 4 diagrams in section
