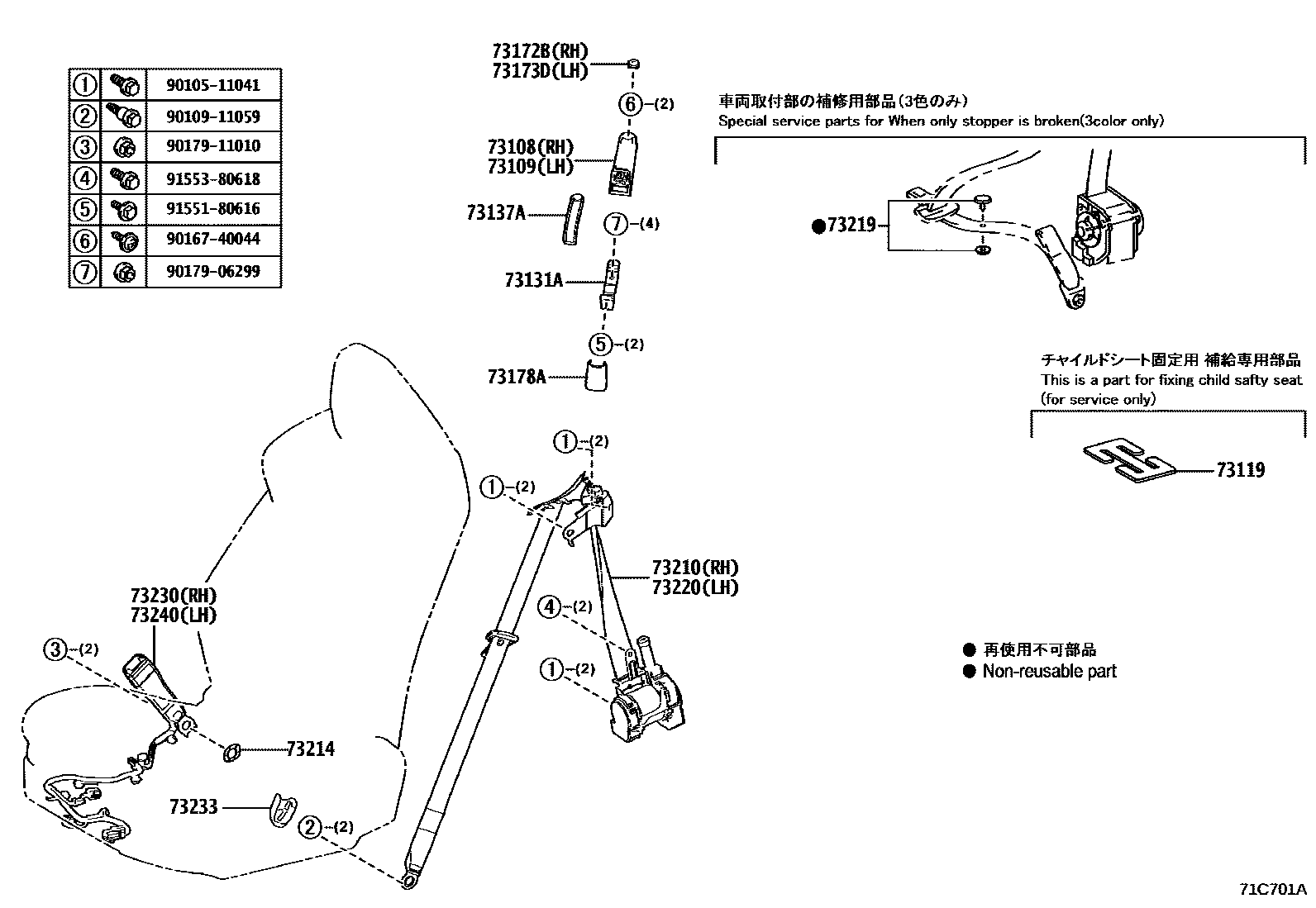

SEAT BELT & CHILD RESTRAINT SEAT
73108BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, RH
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
73109BASE SUB-ASSY, FRONT SEAT BELT ANCHOR, LH
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
73119PLATE, SEAT BELT WEBBING CLIP
KOREA SPEC
73131ABRACKET, SEAT BELT
73137ACOVER, SHOULDER BELT ANCHOR, UPR
BLACK,TRIM2#
LT.OCHRE,TRIM4#
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),RED,TRIM3#
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),DK.ROSE,TRIM23
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT),BLUE,TRIM0#
73172BCAP, FRONT SHOULDER BELT HANGER, RH
73173DCAP, FRONT SHOULDER BELT HANGER, LH
73178ACAP, SEAT BELT ANCHOR COVER
SEAT COVER MATERIAL-SEMI-ANILINE(FRONT SEAT)
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/BLACK,TRIM20,3#
BLACK/DK.ROSE,TRIM23
KOREA SPEC,BLACK/BLACK,TRIM2#,3#
KOREA SPEC,BLACK/OCHRE,TRIM4#
KOREA SPEC,WHITE/BLUE,TRIM0#
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/BLACK,TRIM20,3#
BLACK/DK.ROSE,TRIM23
BLACK/OCHRE,TRIM4#
WHITE/BLUE,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
KOREA SPEC,WHITE,TRIM0#
KOREA SPEC,BLACK,TRIM2#,3#,4#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
WHITE,TRIM0#
BLACK,TRIM2#,3#,4#
9010511041
main90105-11041
9010911059
main90109-11059
9016740044
main90167-40044
9017906299
main90179-06299
9017911010
main90179-11010
9155180616
main91551-80616
9155380618
main91553-80618
22 parts on this diagram · 2 diagrams in section
