INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

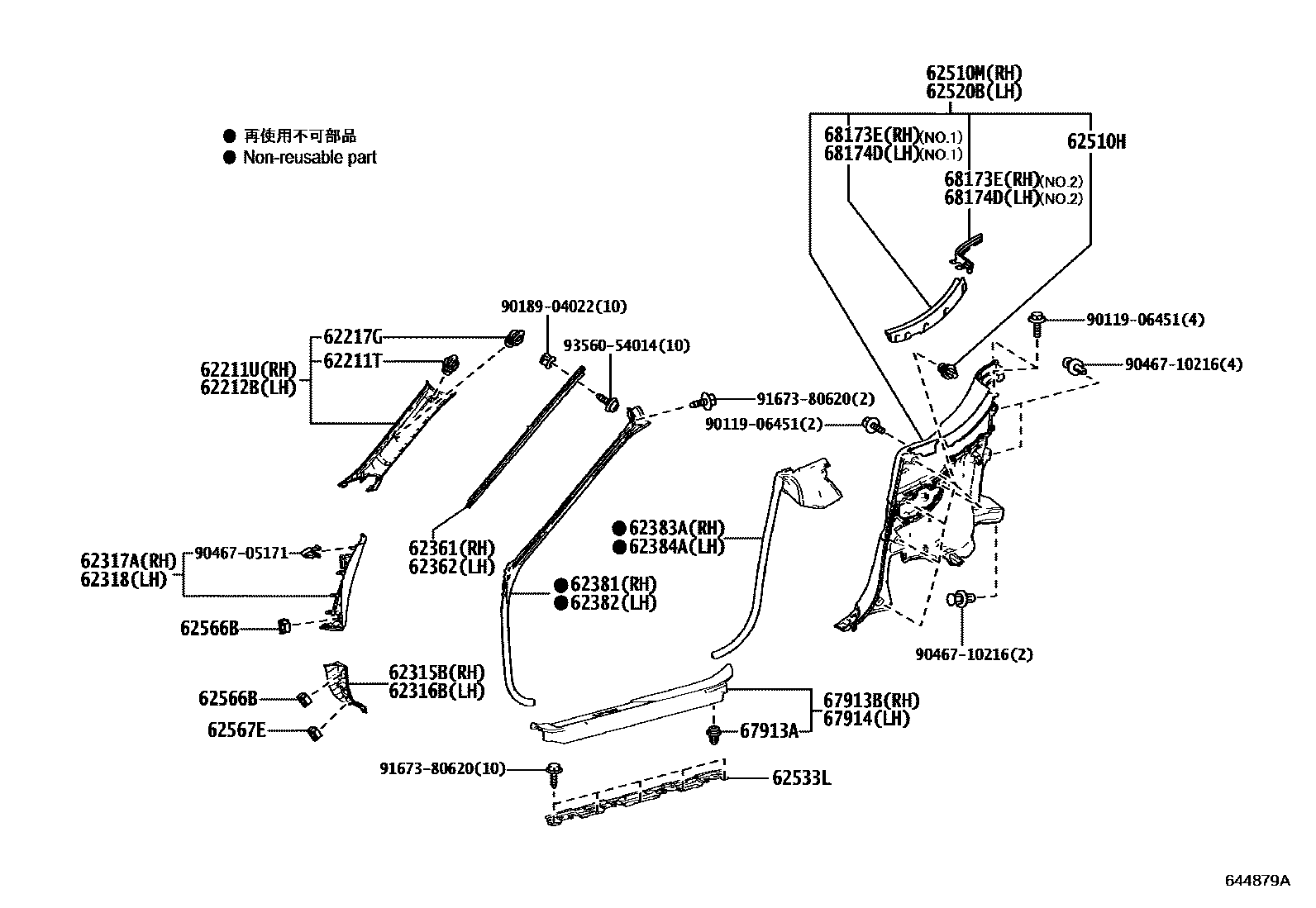

Parts diagram
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-09232i202007
62211UGARNISH ASSY, FRONT PILLAR, RH
main62210-11030-A0i202007
WHITE,TRIM0#
main62210-11030-C0i202007
BLACK,TRIM2#,3#
main62210-11030-E0i202007
OCHER,TRIM4#
62212BGARNISH ASSY, FRONT PILLAR, LH
main62220-11030-A0i202007
WHITE,TRIM0#
main62220-11030-C0i202007
BLACK,TRIM2#,3#
main62220-11030-E0i202007
OCHER,TRIM4#
62217GCLIP, FRONT PILLAR GARNISH
main62217-13010i202007
62315BCOVER, FRONT DOOR OPENING TRIM, RH
main62315-11010-A1i202007-202112
WHITE,TRIM0#
main62315-11010-C1i202007
BLACK,TRIM2#,3#
main62315-11010-E1i202007
OCHRE,TRIM4#
main62315-11010-J0i202112
BLUE,TRIM0#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
main62316-11010-A1i202007-202112
WHITE,TRIM0#
main62316-11010-C1i202007
BLACK,TRIM2#,3#
main62316-11010-E1i202007
OCHRE,TRIM4#
main62316-11010-J0i202112
BLUE,TRIM0#
62317ACOVER, FRONT DOOR OPENING TRIM, NO.2 RH
main62317-11010-A1i202007
WHITE,TRIM0#
main62317-11010-C3i202007
BLACK,TRIM2#,3#
main62317-11010-E2i202007
OCHRE,TRIM4#
62318COVER, FRONT DOOR OPENING TRIM, NO.2 LH
main62318-11010-A1i202007
WHITE,TRIM0#
main62318-11010-C3i202007
BLACK,TRIM2#,3#
main62318-11010-E2i202007
OCHRE,TRIM4#
62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH
main62361-11020i202007
62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH
main62362-11020i202007
62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
main62381-11020i202007-202104
sub62381-11021
main62381-11021i202105-202109
sub62381-11022
main62381-11022i202110
sub62381-11023
62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
main62382-11020i202007-202104
sub62382-11021
main62382-11021i202105-202109
sub62382-11022
main62382-11022i202110
sub62382-11023
62383AWEATHERSTRIP, ROOF SIDE RAIL, REAR RH
main62383-11010i202007
sub62383-11011
62384AWEATHERSTRIP, ROOF SIDE RAIL, REAR LH
main62384-11010i202007
sub62384-11011
62510HCLIP(FOR QUARTER TRIM FRONT PANEL)
main90467-09233i202007
62510MPANEL ASSY, QUARTER TRIM, RH
main62510-11090-A4i202007
WHITE/BLUE/GRAY,TRIM0#
sub62510-11091
main62510-11090-C8i202007
BLACK,TRIM2#
sub62510-11091
main62510-11090-C9i202007
BLACK/RED,TRIM3#
sub62510-11091
main62510-11090-E4i202007
OCHER,TRIM4#
sub62510-11091
62520BPANEL ASSY, QUARTER TRIM, LH
main62520-11090-A4i202007
WHITE/BLUE/GRAY,TRIM0#
sub62520-11091
main62520-11090-C8i202007
BLACK,TRIM2#
sub62520-11091
main62520-11090-C9i202007
BLACK/RED,TRIM3#
sub62520-11091
main62520-11090-E4i202007
OCHER,TRIM4#
sub62520-11091
62533LBRACKET, SIDE TRIM, NO.1
main62533-11010i202007-202101
DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE)
main62533-11010i202007-202101
DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100)
main62533-11010i202007
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-11010i202007
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
main62566-30010i202007
67913ACLIP(FOR SCUFF PLATE)
main90467-10162i202007-202101
DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100)
main90467-10162i202007-202101
DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE)
main90467-10162i202007
67913BPLATE, FRONT DOOR SCUFF, RH
main67910-11010-C4i202007-202101
DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE),BLACK,TRIM2#,3#
main67910-11010-C4i202007-202101
DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100),BLACK,TRIM2#,3#
main67910-11010-C4i202007-202305
DOOR SCUFF PLATE-CFRP,BLACK,TRIM2#,3#
main67910-11010-C4i202007
BLACK,TRIM2#,3#
main67910-11010-E3i202007-202101
DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100),OCHRE,TRIM4#
main67910-11010-E3i202007-202101
DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE),OCHRE,TRIM4#
main67910-11010-E3i202007-202305
DOOR SCUFF PLATE-CFRP,OCHRE,TRIM4#
main67910-11010-E3i202007
OCHRE,TRIM4#
main67910-11010-J4i202111
WHITE/BLUE,TRIM0#
main67910-11010-J4i202111-202305
DOOR SCUFF PLATE-CFRP,WHITE/BLUE,TRIM0#
main67910-11100-C0i202202
"UNWIND"*(E)&DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100),BLACK,TRIM2#
main67913-11010i202007
DOOR SCUFF PLATE-CFRP
main67913-11080i202007-202111
LIMITED EDITION&DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100)
main67913-11090i202007-202111
LIMITED EDITION&DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE)
67914PLATE, FRONT DOOR SCUFF, LH
main67914-11010i202007
DOOR SCUFF PLATE-CFRP
main67914-11080i202007-202111
LIMITED EDITION&DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100)
main67914-11090i202007-202111
LIMITED EDITION&DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE)
main67920-11010-C4i202007-202101
DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100),BLACK,TRIM2#,3#
main67920-11010-C4i202007-202101
DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE),BLACK,TRIM2#,3#
main67920-11010-C4i202007-202305
DOOR SCUFF PLATE-CFRP,BLACK,TRIM2#,3#
main67920-11010-C4i202007
BLACK,TRIM2#,3#
main67920-11010-E3i202007-202101
DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100),OCHRE,TRIM4#
main67920-11010-E3i202007-202101
DOOR SCUFF PLATE-CFRP(STRUCTURAL BLUE),OCHRE,TRIM4#
main67920-11010-E3i202007-202305
DOOR SCUFF PLATE-CFRP,OCHRE,TRIM4#
main67920-11010-E3i202007
OCHRE,TRIM4#
main67920-11010-J4i202111-202305
DOOR SCUFF PLATE-CFRP,WHITE/BLUE,TRIM0#
main67920-11010-J4i202111
WHITE/BLUE,TRIM0#
main67920-11100-C0i202202
"UNWIND"*(E)&DOOR SCUFF PLATE-CFRP(LC INSPIRATION SERIES OF 100),BLACK,TRIM2#
68173EWEATHERSTRIP, QUARTER TRIM PANEL, INNER RH
main68173-11010i202007
NO.1:REFER ILLUST.
main68173-11020-B0i202007
GRAY,TRIM0#,NO.2:REFER ILLUST.
main68173-11020-C0i202007
BLACK,TRIM2#,3#,4#,NO.2:REFER ILLUST.
68174DWEATHERSTRIP, QUARTER TRIM PANEL, INNER LH
main68174-11010i202007
NO.1:REFER ILLUST.
main68174-11020-B0i202007
GRAY,TRIM0#,NO.2:REFER ILLUST.
main68174-11020-C0i202007
BLACK,TRIM2#,3#,4#,NO.2:REFER ILLUST.
9011906451
main90119-06451
9018904022
main90189-04022
9046705171
main90467-05171
9046710216
main90467-10216
9167380620
main91673-80620
9356054014
main93560-54014

31 parts on this diagram · 1 diagram in section
