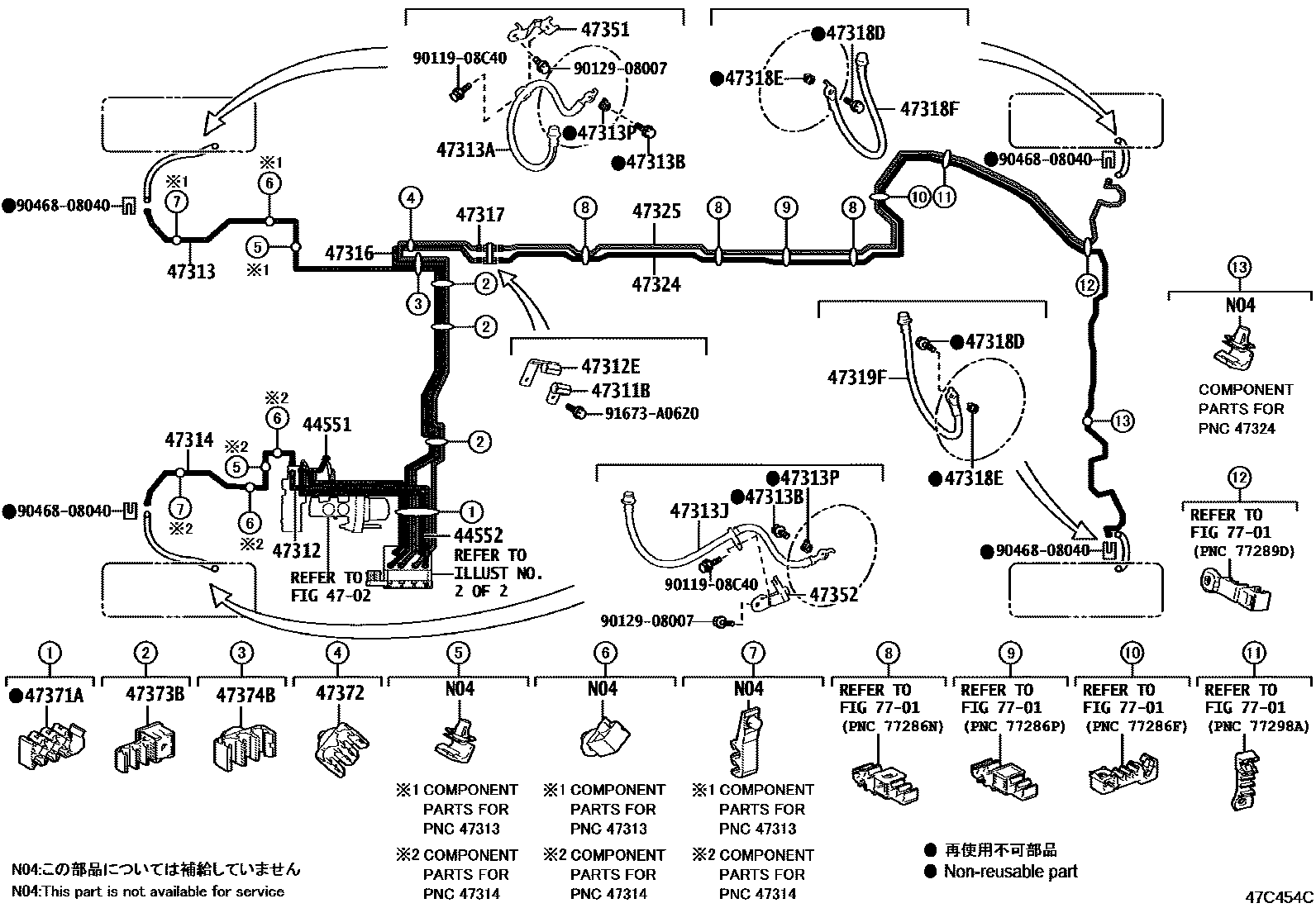

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-11021iURZ100202007

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-11021iURZ100202007

4702

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10292iURZ100202007

47312TUBE, FRONT BRAKE, NO.2

main47312-11051iURZ100202007

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10297iURZ100202007

47313TUBE, FRONT BRAKE, NO.3

main47313-11081iURZ100202007

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H62iURZ100202007

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iURZ100202007

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H67iURZ100202007

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iURZ100202007

47314TUBE, FRONT BRAKE, NO.4

main47314-11071iURZ100202007

47316TUBE, FRONT BRAKE, NO.6

main47322-11101iURZ100202007

47317TUBE, FRONT BRAKE, NO.7

main47323-11041iURZ100202007

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iURZ100202007

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iURZ100202007

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H68iURZ100202007

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H68iURZ100202007

47324TUBE, REAR BRAKE, NO.4

main47324-11022iURZ100202007

47325TUBE, REAR BRAKE, NO.5

main47325-11012iURZ100202007

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-11040iURZ100202007

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-11020iURZ100202007

47371ACLAMP, BRAKE TUBE, NO.1

main47371-11010iURZ100202007

47372CLAMP, BRAKE TUBE, NO.2

main90469-07020iURZ100202007

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D21iURZ100202007

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D41iURZ100202007

7701

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

91673A0620

main91673-A0620

31 parts on this diagram · 2 diagrams in section
