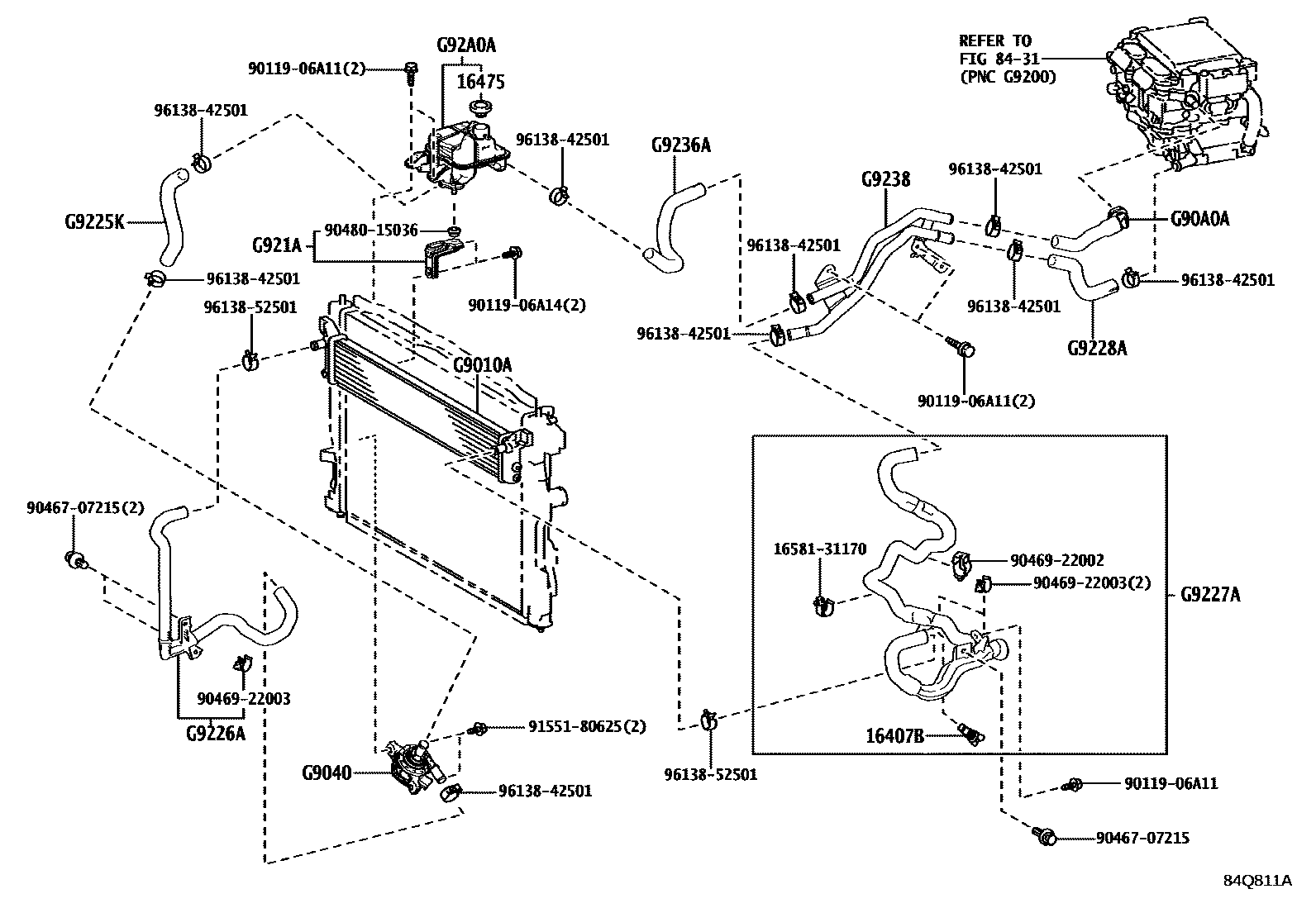

INVERTER COOLING

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i8GRFXS..GWZ100202305-202507

16475CAP, RESERVE TANK

main16475-28140i8GRFXS..GWZ100202305-202507

8431

G9010ARADIATOR ASSY

mainG901011010iGWZ100202305-202507

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iGWZ100202305-202312

subG9040-48060

mainG904048060iGWZ100202401-202507

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A011010iGWZ100202305-202507

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H211010iGWZ100202305-202507

G9225KHOSE, INVERTER COOLING, NO.1

mainG922511010iGWZ100202305-202507

G9226AHOSE, INVERTER COOLING, NO.2

mainG922611010iGWZ100202305-202507

G9227AHOSE, INVERTER COOLING, NO.3

mainG922711010iGWZ100202305-202507

G9228AHOSE, INVERTER COOLING, NO.4

mainG922811030iGWZ100202305-202507

G9236AHOSE, INVERTER COOLING, NO.6

mainG923611010iGWZ100202305-202507

G9238PIPE, INVERTER COOLING

mainG923811010iGWZ100202305-202507

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H011010iGWZ100202305-202507

1658131170CLAMP, HOSE(FOR WATER HOSE)

main16581-31170

9011906A11

main90119-06A11

9011906A14

main90119-06A14

9046707215

main90467-07215

9046922002

main90469-22002

9046922003

main90469-22003

9048015036

main90480-15036

9155180625

main91551-80625

9613842501

main96138-42501

9613852501

main96138-52501

24 parts on this diagram · 1 diagram in section
